FMS GENERAL DESCRIPTION
SYSTEM OVERVIEW
7
AIRBUS A318/319/320/321
© THALES AVIONICS S.A.
J43126AA 00
− Lateral and vertical revisions to the flight plan,
− Display of auto-tuned or manually tuned navaids,
− Status of position updating by DMEs or GPS, and navigation
accuracy,
− Entry and storage of pilot-defined navigation references not already
in data base,
− Initiation of approach phase.
See Part 1 Ch 4 for detailed description of MCDU.

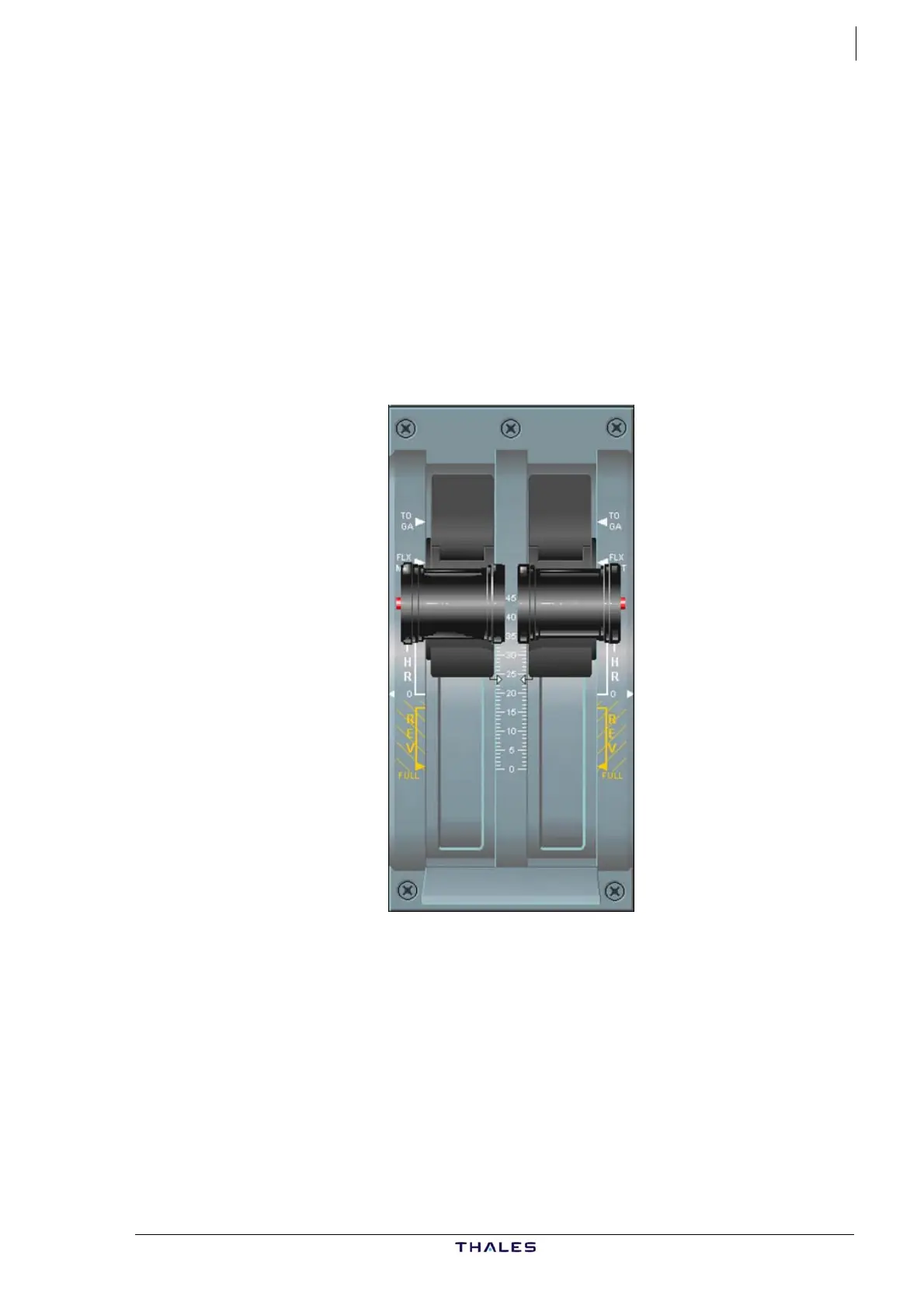

The Thrust Levers (T/L) are also an interface for pilot inputs to the
FMGCs, and to the FADEC. The Thrust Levers are shown below.
T/L functions are:
− Engagement of A/THR and FD in take off mode (thrust levers at FLX
or DRT or TOGA position), and engagement of A/THR, FD and/or AP
in go-around mode (T/L at TOGA),
− Selection of other thrust rating limits (T/L to MCT or CL),
− Setting the limit for A/THR authority, by T/L position,
− Controlling manual thrust when A/THR is not active, and reverse
thrust.
