Thales FMGS - Page 661

APPENDICES

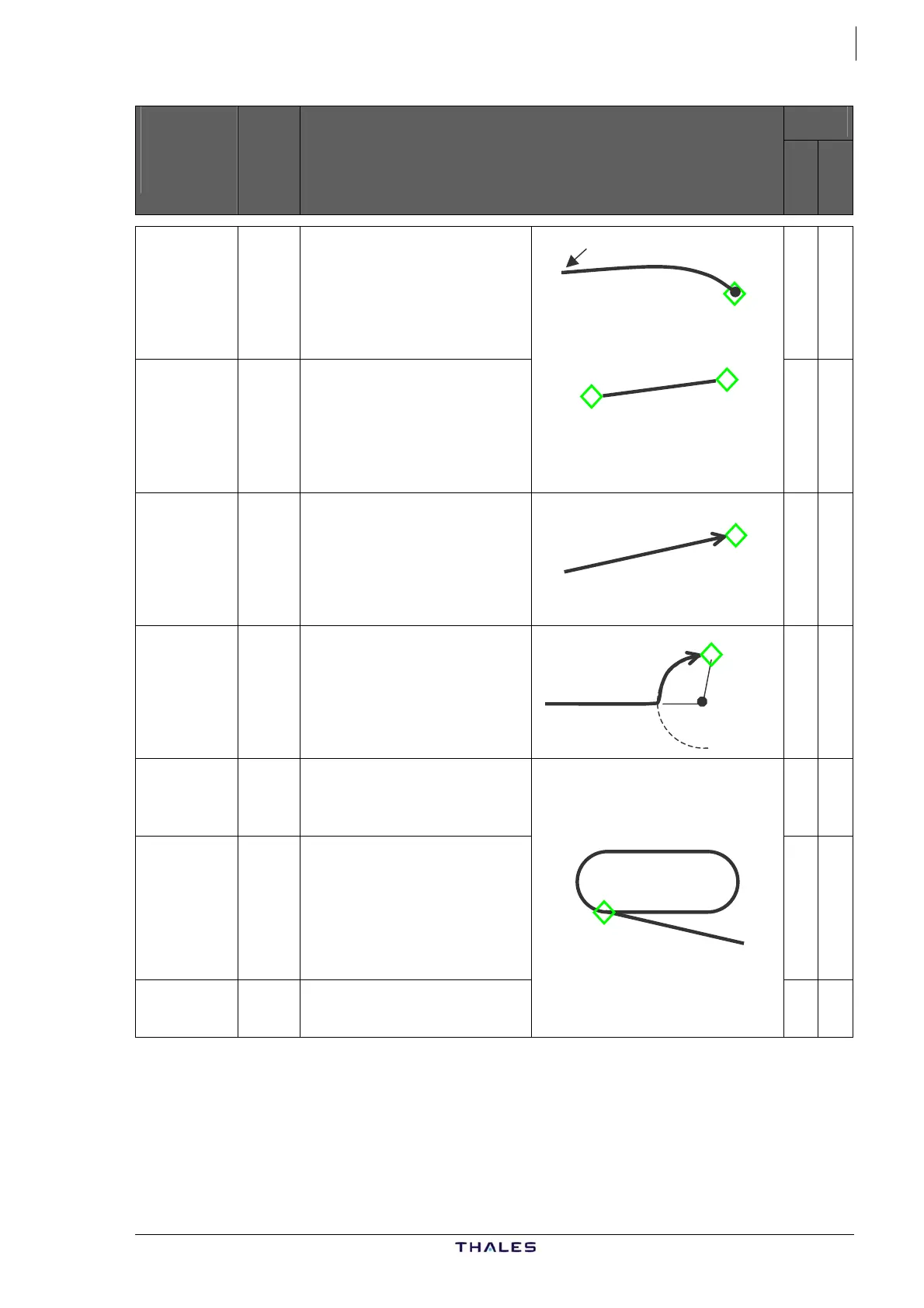

MCDU NAMING and DATA FORMAT 15
Access
to
MCDU
Display
naming
Path /
Terminator
DEFINITION
LAT REV
VERT REV
WPT
(1)
DF
TF
IF
The label line is blank for TF
and DF legs that result from
pilot entry or DIR TO.
It is always blank for IF.
Y Y
VIA
WPT
TF
DF
If defined as part of a
terminal area procedure or
airway, the VIA name is
displayed.
Y Y
CXXX°
WPT
(1)
CF XXX is the defined course.
Y Y
DDNAV
WPT
AF DD is the distance of the
arc. NAV is the first three
characters of the DME
station identifier from which
arc is defined from.
WPT is the terminating
waypoint.
Y Y
HOLD L
HHHHH
(3)
HA L/R is direction of turn.
HHHHH – terminating
altitude
Y Y
HOLD L
CXXX°
WPT
(1)
HM L/R is direction of turn.
XXX is the inbound course
to the holding pattern fix.
WPT is the holding pattern
fix, which may be a fixed
waypoint or T-P.
Y
(4)
Y
(2)
HOLD L
WPT
HF L/R is direction of turn.
Y Y
CF
DME
WPT
DD
AF
WPT
DF
TF
WPT
B
WPT
A
UNDEFINED POSITION
AIRBUS A318/319/320/321
© THALES AVIONICS S.A.
J43126AA 00
