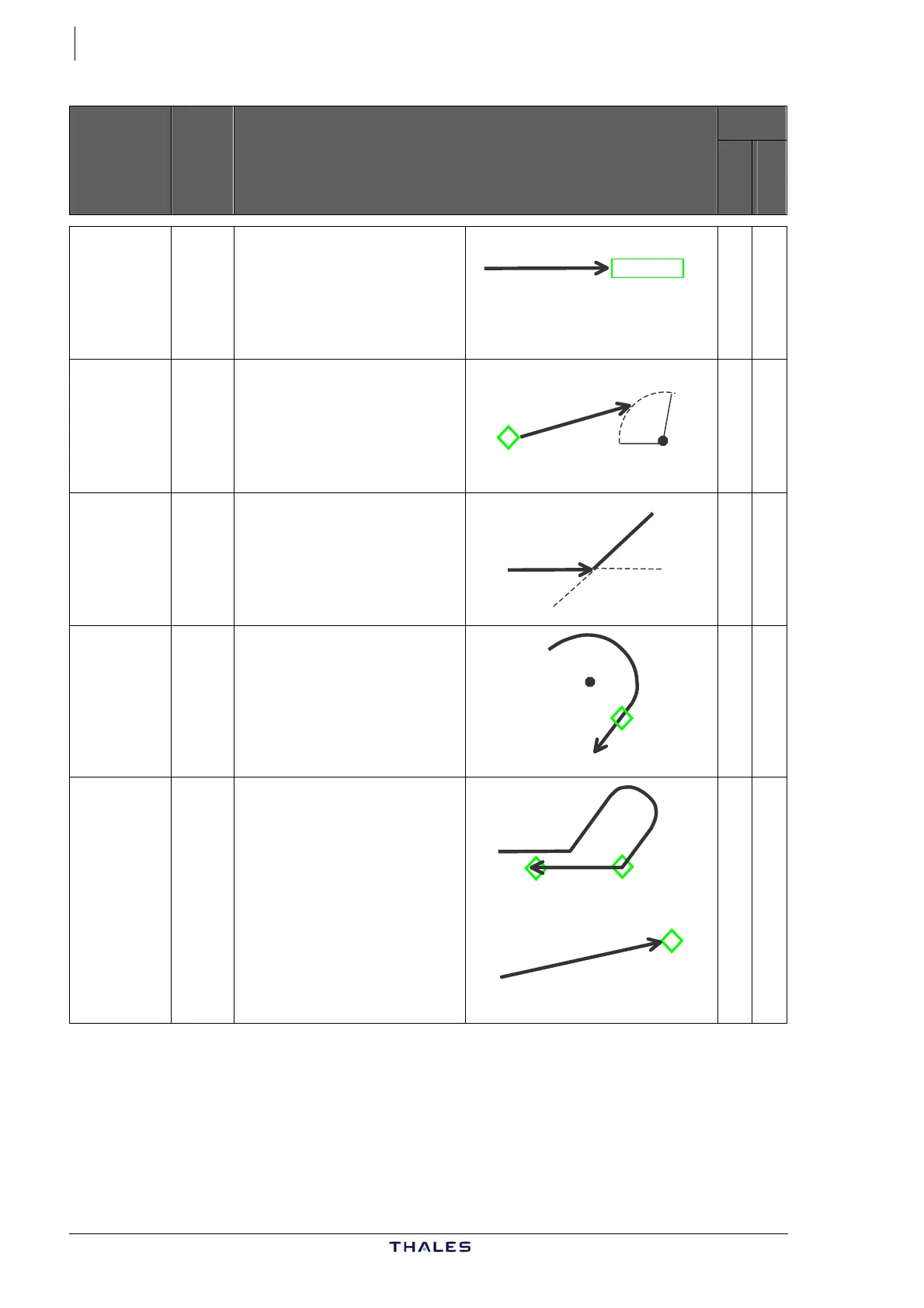

16 MCDU NAMING and DATA FORMAT
Access
to
MCDU
Display
naming
Path /
Terminator
DEFINITION
LAT REV
VERT REV
HXXX°
HHHHH
(3)
VA XXX is heading.
HHHHH is terminating
altitude.
Y Y
VA
8000 FT
HXXX °
NAV/DD
VD XXX is heading.
NAV is the first three
characters of the DME
station identifier from which
distance is defined.
DD is DME distance.
Y Y
WPT
DD
VD
DME
HXXX °
INTCPT
VI XXX is heading. The
following leg defines the
intercept termination.
Y
(5)
Y
VI
070°
H090°
DDARC
WPT
RF DD is the radius of the arc.
WPT is the termination
waypoint.
Y Y
RF
DD
WPT
PROC
INTCPT
CXXX°
WPT
PI
CF
XXX is the inbound course
to the procedure turn fix
Y
(4)
Y
CF
INTCPT
PI
