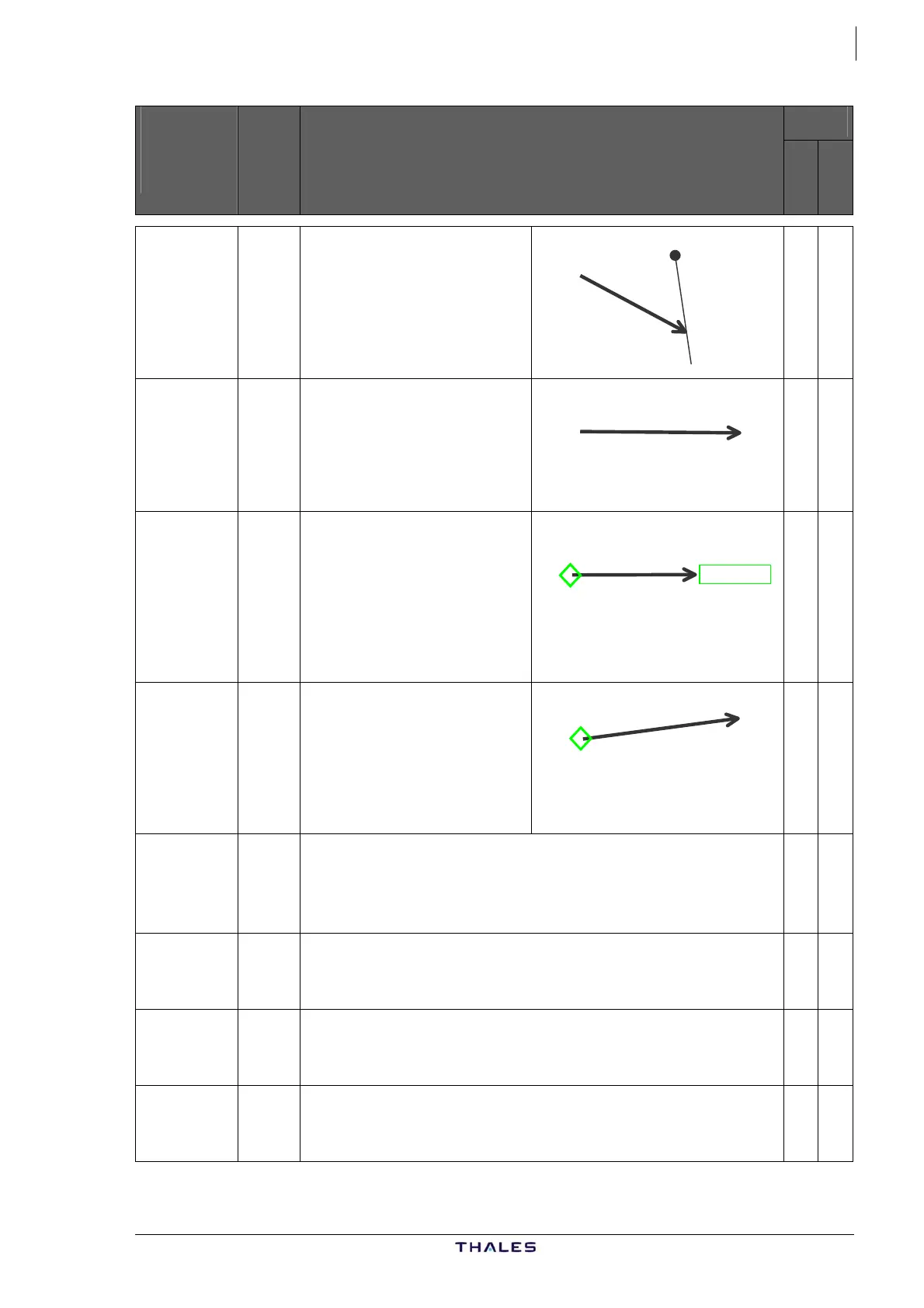

MCDU NAMING and DATA FORMAT 17
Access
to
MCDU
Display
naming
Path /
Terminator
DEFINITION
LAT REV
VERT REV
HXXX°
WPTRRR
VR XXX is heading.
WPT is the first three
characters of the identifier
of the fixed waypoint from
which the heading is
defined.
RRR is radial from WPT.
Y Y
VR
170°
WPT
H110°
HXXX°
MANUAL
VM XXX is heading Y Y
VM
H090°
WPTXXX
HHHHH
(3)
FA WPT is the first three
characters of the identifier
of the fixed waypoint from
which the course is defined.
XXX is the outbound course
from the previous
waypoint.
HHHHH is terminating
altitude.
Y Y
FA
8000 FT
WPT
WPTXXX
MANUAL
FM WPT is the first three
characters of the identifier
of the fixed waypoint from
which the course is defined.
XXX is the outbound course
from the previous
waypoint.
Y Y
T-P
Fixed
WPT
Turn
Point
Displayed when a ‘Direct To’, hold or offset revision at
present position is pending or inserted.
It becomes a fixed waypoint at the LAT/LONG when the
temporary F-PLN is inserted.
Y Y
IN-BND
Fixed
WPT
Turn
Point
Displayed when a ‘Direct To / Intercept To’ revision is
pending or inserted.
Y Y
OUT-BND
Fixed
WPT
Turn
Point
Displayed when a ‘Direct To / Intercept From’ revision is
pending or inserted.
Y Y
PPOS
Present Position
Displayed as the FROM waypoint if the A/C is in a
discontinuity and does not meet the criteria for activation
on the next leg.
Y Y
FM
WPT
