Topcon 3D OCT-1 User Manual

140
ANALYZING TOMOGRAMS
4.3.2. Analyzing the center corneal thickness
The center corneal thickness is automatically analyzed when saving the photographed tomogram. The
analysis data is displayed as a numerical value when making a report. The center corneal thickness is
not displayed on the "Viewer" window.
4.3.3. Analyzing the corneal thickness distribution
The corneal thickness distribution is automatically analyzed when saving the photographed tomogram.
The corneal thickness distribution is displayed on the Thickness graph area. You can change the dis-
played graph and map to each other by pressing the [Graph] and [Map] buttons. When making a report,
only the corneal thickness distribution map is outputted.

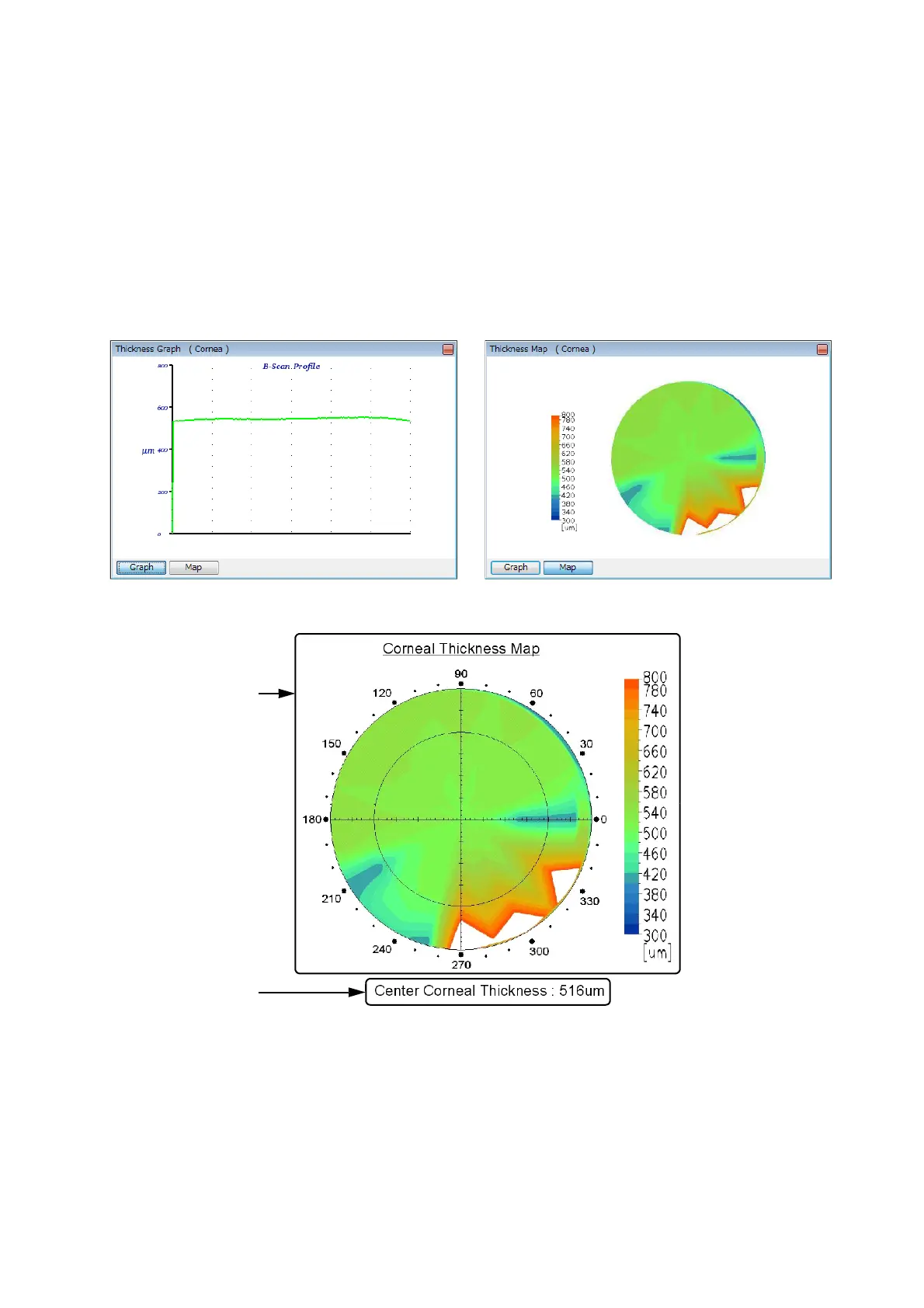

Corneal thickness distribution
Report Window
Corneal thickness
distribution
Center corneal
thickness
