141
ANALYZING TOMOGRAMS
4.3.4. Analyzing the center curvature radius
The radius of corneal center curvature is analyzed in the vertical and horizontal directions. The radius of
center curvature is automatically analyzed when saving the photographed tomogram. The analysis data
is displayed as a numerical value when making a report. The radius of the center curvature is not dis-
played on the "Viewer" window.
4.3.5. Analyzing the curvature radius distribution
The corneal curvature radius distribution is analyzed. The curvature radius distribution is automatically
analyzed when saving the photographed tomogram. The analysis data is outputted as a map when mak-
ing a report. The curvature radius distribution is not displayed on the "Viewer" window.

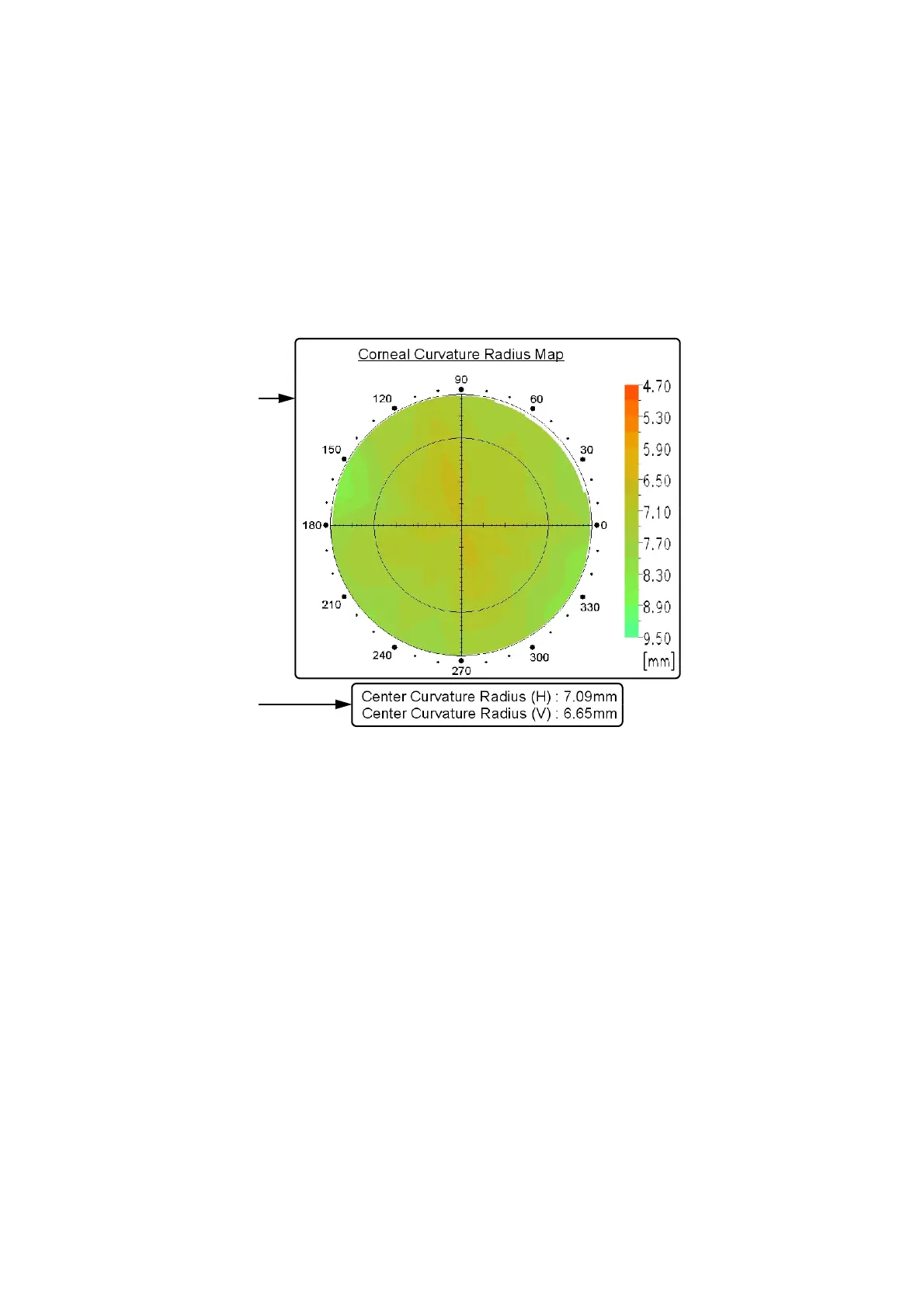

Report Window
Curvature radius
Center curvature radius
