17
STARTING

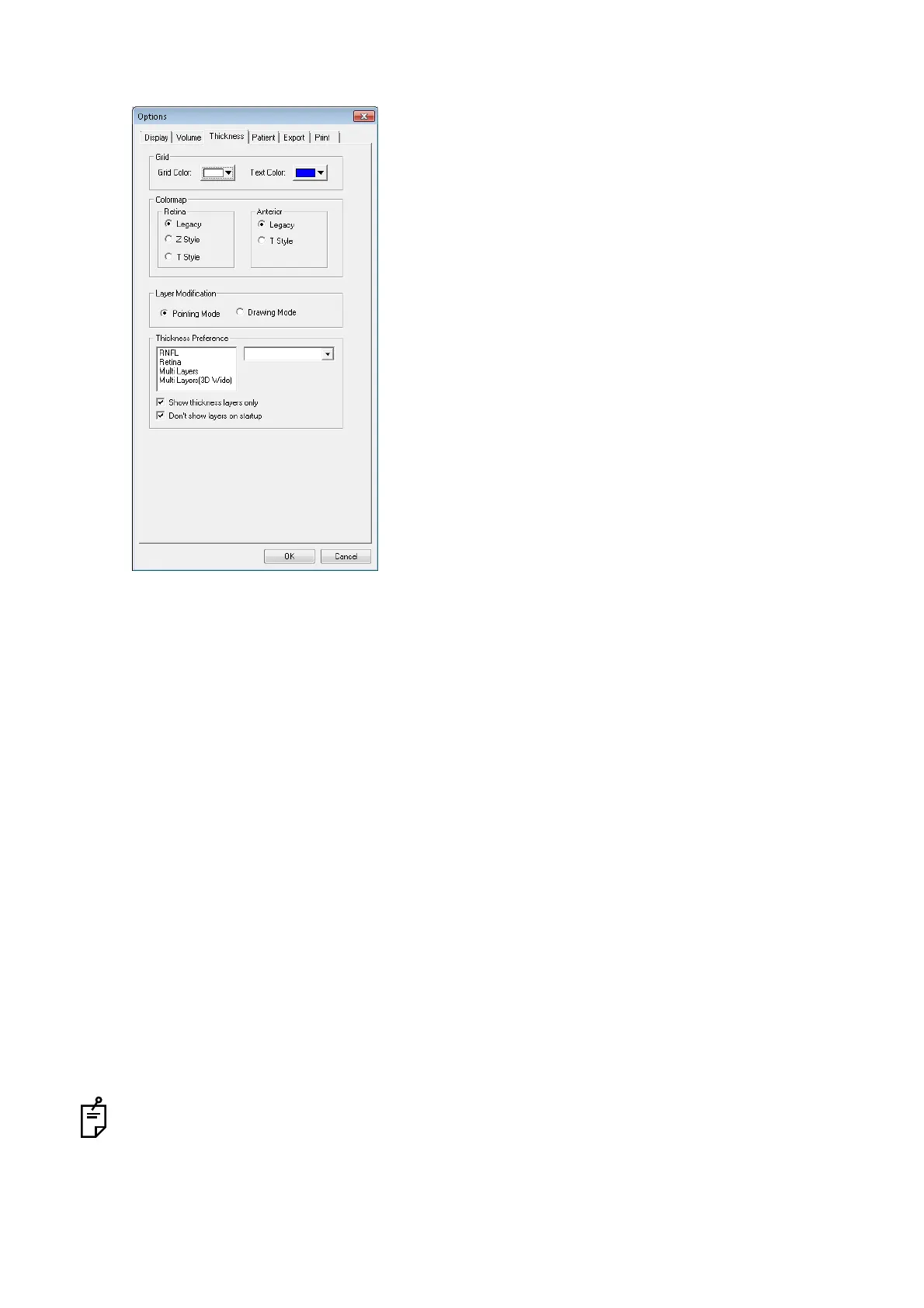

On Thickness Tab, you can set the following items.
•Grid
You can set color for "Grid Color" and "Text Color".
• Type of "Colormap"
"Legacy" is initially set.
You can select one of "Legacy", "T Style" and "Z Style" for fundus and one of "Legacy" and "T
Style" for anterior segment.
* "Anterior" cannot be used in 3D OCT-1.
• Layer Modification
"Pointing Mode" is initially set. You can select one of "Pointing Mode" and "Drawing Mode".
• Thickness Preference
Select "Retina", "RNFL" or the like in the panel. You can check the layer displayed in the
selected place.
The check marks are initially placed for the following two items.
• Show thickness layers only
Remove the check mark. Other layers are displayed in addition to the Thickness layer.
• Don't show layers on startup
Remove the check mark. When selecting data, the tomogram is displayed while the layer is
displayed.
For the anterior segment data, the "Don't show layers on startup" check box, "Anterior" of "Color-
map" and "Layer Modification" on Thickness tab are valid.
Thickness Tab
