LiftCircuit
g298562
Figure26

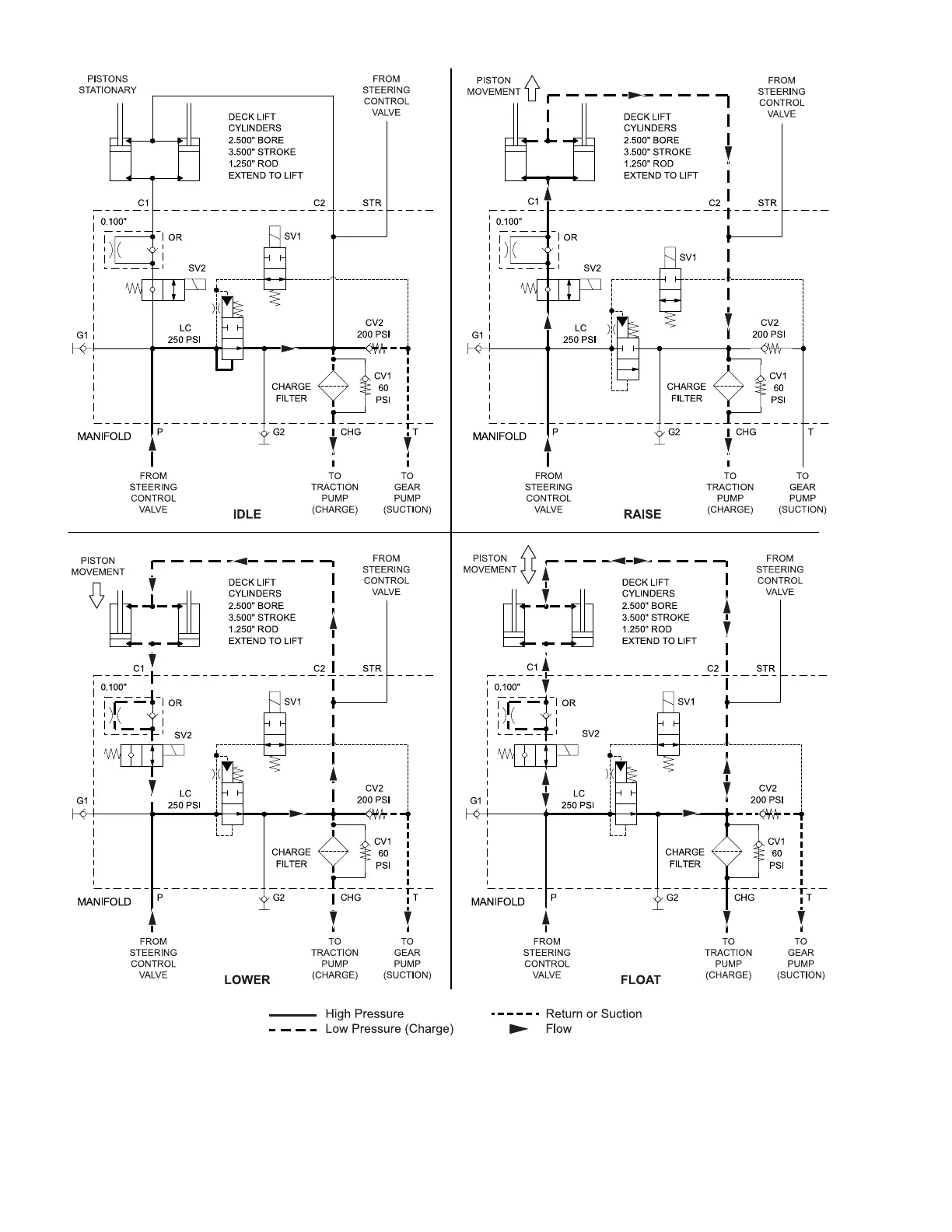

LiftCircuitDiagram
Gearpump(P2)suppliesoilowforthesteeringcircuitandliftcircuit,andalso
providesaconstantsupplyofchargeoiltotheclosedlooptractioncircuit.The
HydraulicSystem:HydraulicFlowDiagrams
Page5–18
Groundsmaster
®
3200,3300and3310
19240SLRevA
