Adjustments
AdjustingtheParkingBrake
RefertothetractionunitOperator’sManualforthisprocedure.
AdjustingtheTractionCable
1.CheckthetractionsystemforNEUTRALandadjustifnecessary;referto
AdjustingtheTractionSystemforNeutral(page5–50).
2.Loosenthetractionpedalstopboltjamnutsandlowerthetractionpedal
stopbolt.
3.Depressthetractionpedalfullyforward.Thetractionpedalandpedalhub
shouldnotcontactthestopboltoranypartofthemachine,ensuringthe
tractionpumpisatitsfullforwarddisplacement.Adjustthetractioncable
balljointslightlyifnecessary.
4.Withthetractionpedalfullyforward,extendthepedalstopbolttocontact
thetractionpedal.
5.Releasethetractionpedalandextendthepedalstopboltanadditional1/2
turnbeforelockingthestopboltinpositionwiththejamnuts.
AdjustingtheTieRodLength(RearWheelToe-In)

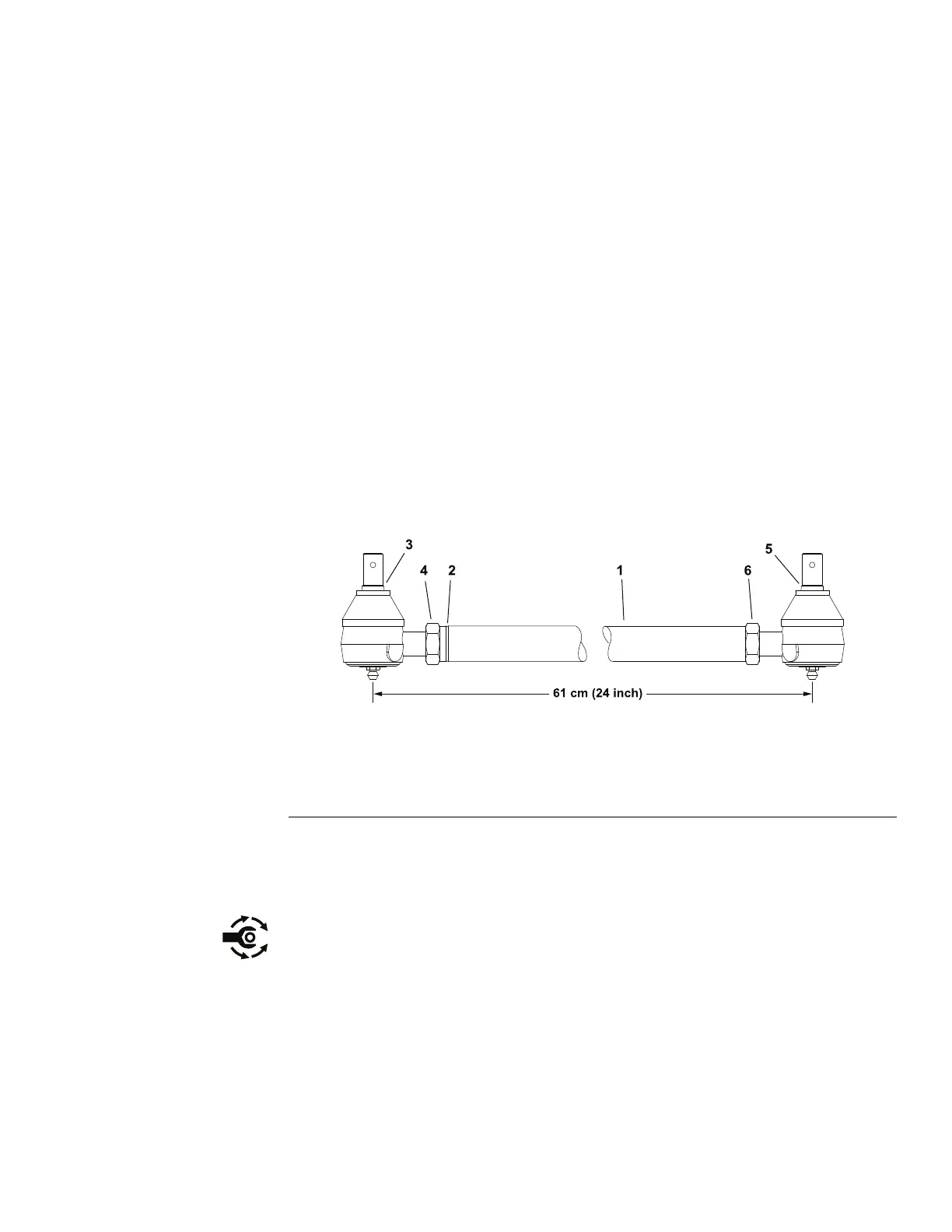

g314862
Figure109
1.Tierod4.Jamnut–LHthread
2.Groove(LHthreadend)
5.Rodend–RHthread
3.Rodend–LHthread6.Jamnut–RHthread
1.CheckthetierodassemblylengthasshowninFigure109.
Note:Oneofthetierodendsanditsjamnuthavelefthandthreads.Theleft
handthreadedcomponentsareindicatedbyagrooveneartheendofthe
tierod.
2.Loosenthejamnutsandadjustthetierodlengthasnecessary.Tighten
thejamnutsto122N·m(90ft-lb)..
Groundsmaster
®
3200,3300and3310
Page7–3
Chassis:Adjustments
19240SLRevA
