ServicingtheTraction(piston)Pump(P1)
g213710

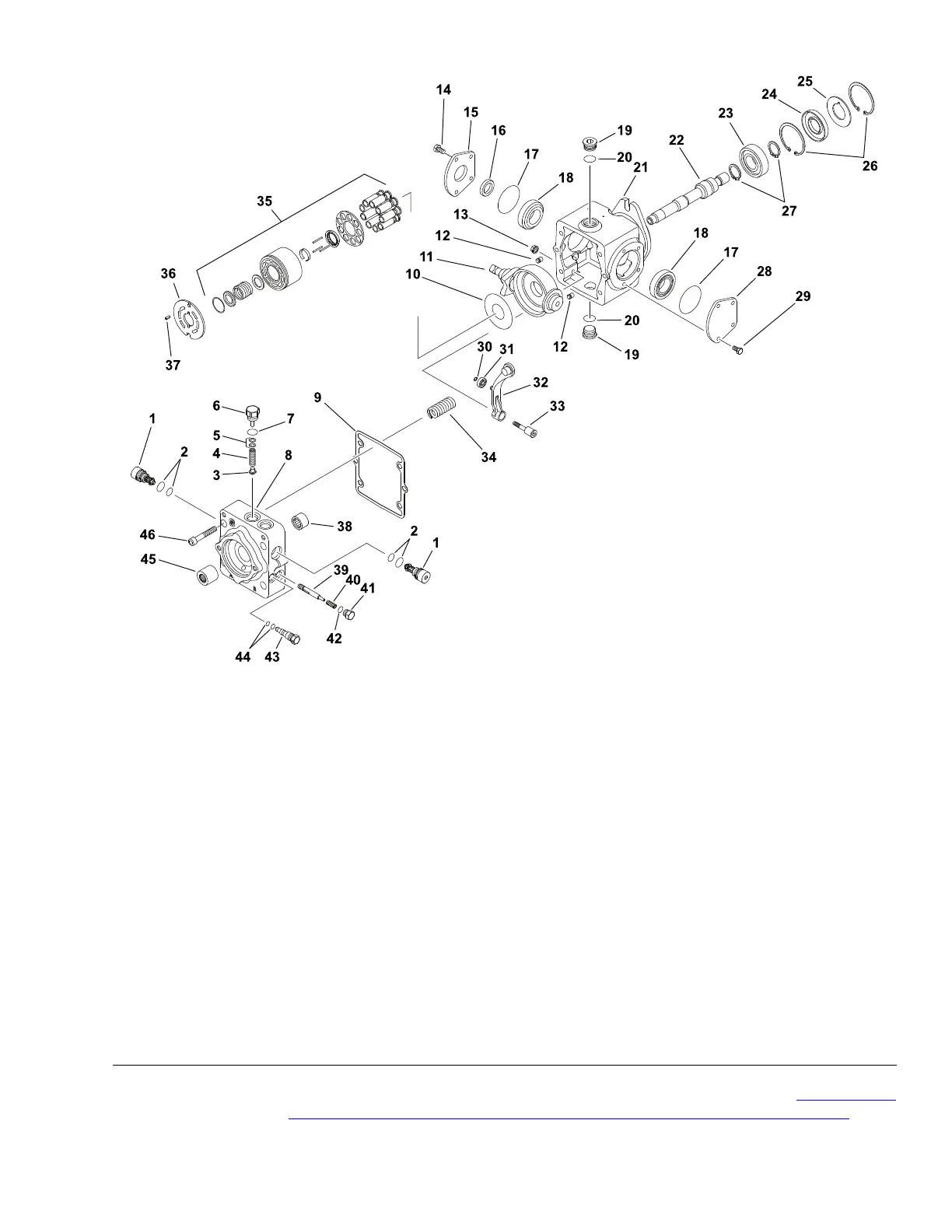

Figure52
1.Reliefvalve(2each)17.O-ring(2each)
33.Neutralreturnpivot
2.Sealkit(2each)18.Bearing(2each)34.Spring
3.Chargereliefpoppet19.Plug(2each)35.Cylinderblockkit
4.Spring20.O-ring(2each)
36.Valveplate
5.Shimkit
21.Tractionpumphousing
37.Slottedpin
6.Chargereliefplug22.Auxiliaryshaft
38.Needlebearing
7.O-ring
23.Ballbearing
39.Loopushingspool
8.Endcap
24.Seal40.Spring
9.Endcapgasket25.Backupwasher41.Plug
10.Thrustplate
26.Retainingring(2each)42.O-ring
11.Swashplate27.Retainingring(2each)
43.Bypassvalve
12.Pin(2each)
28.Trunnioncover
44.Sealkit
13.Sealnut29.Screw(4each)45.Coupling
14.Screw(4each)
30.Retainingring
46.Screw(4each)
15.Trunnioncover31.Bearing
16.Seal
32.Neutralreturnarm
Note:Forthetraction(piston)pumprepairinformation;refertotheDanfossLPV
ClosedCircuitAxialPistonPumpsRepairInstructionsandServiceManual.
Groundsmaster
®
3200,3300and3310
Page5–73
HydraulicSystem:ServiceandRepairs
19240SLRevA
