Toro Groundmaster Series - Operator Seat

OperatorSeat

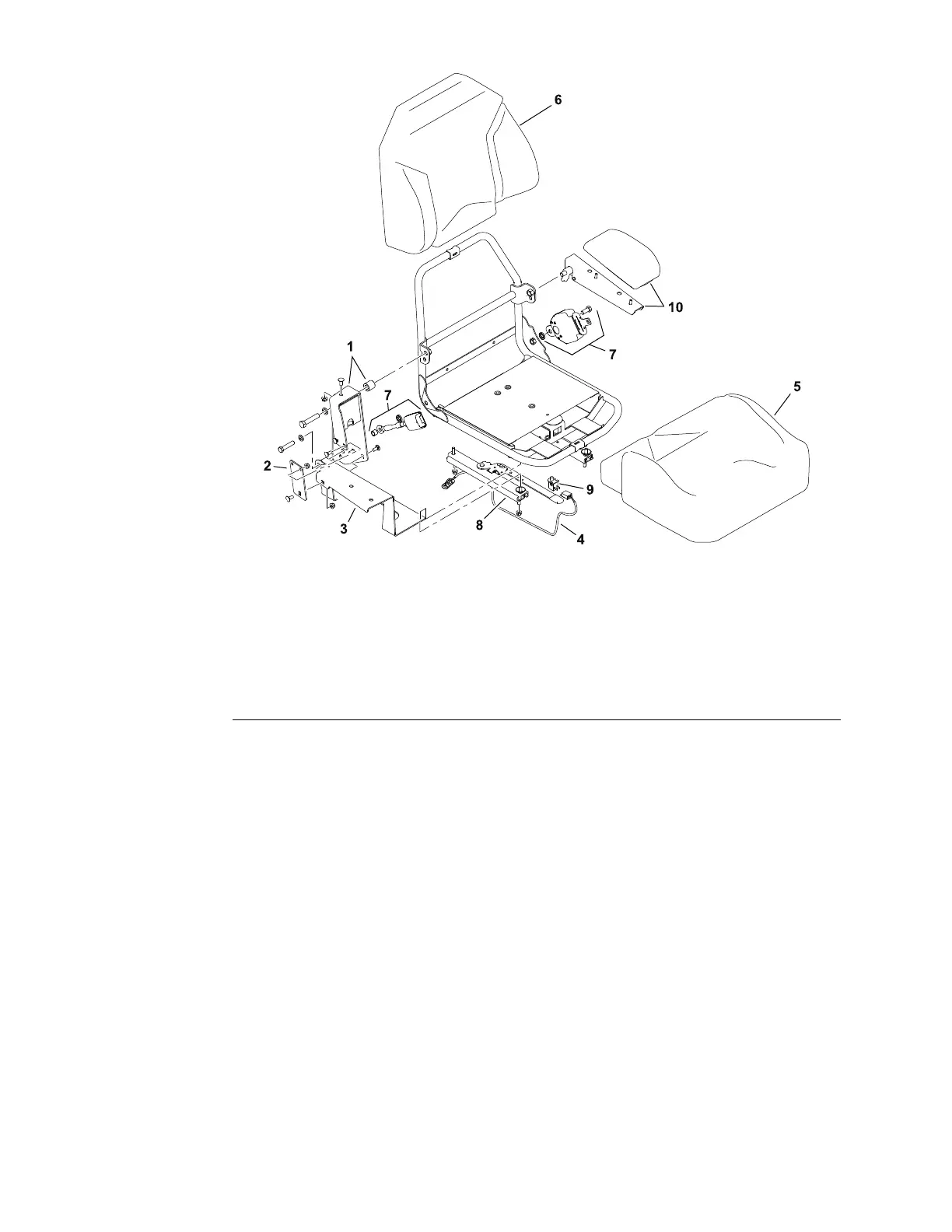

g314395
Figure126
(standardseatshown–model31980)
1.Consolemountkit
6.Backcover
2.Bracketkit
7.Seatbeltkit
3.Lowerconsolemount
8.Seattrackkit
4.Seatswitchharness9.Seatswitch
5.Cushioncover
10.Armrestkit
Standardseat(model31980),mechanicalsuspensionseat(model31981),and
airridesuspensionseat(model31982)areavailablefortheGroundsmaster
3200/3300machines.Foradditionalseatswitchinformation,refertoSeatSwitch
(page6–27).Foradditionalseatsuspensioninformation,refertoMechanical
SuspensionSeat(Model31981)(page7–28)orAirRideSuspensionSeat
(Model31982)(page7–29).
RemovingandInstallingtheOperatorSeat
1.Parkthemachineonalevelsurface,lowerthecuttingunit(orattachment),
engagetheparkingbrake,setthekeyswitchtotheOFFpositionandremove
thekeyfromthekeyswitch.
2.Disconnecttheelectricalconnectorfromtheseatswitch.Onairride
seatsuspensionsystems,disconnecttheelectricalconnectorfromtheair
compressor.
3.Removethefastenerssecuringtheseattrackstotheseatbox.
4.Removetheseatassemblyfromthemachine.
5.Repairorreplacetheseatorseatcomponentsasnecessary.
6.Securetheseattrackstotheseatbox.
Chassis:ServiceandRepairs
Page7–26
Groundsmaster
®
3200,3300and3310
19240SLRevA
