Hood
g297644

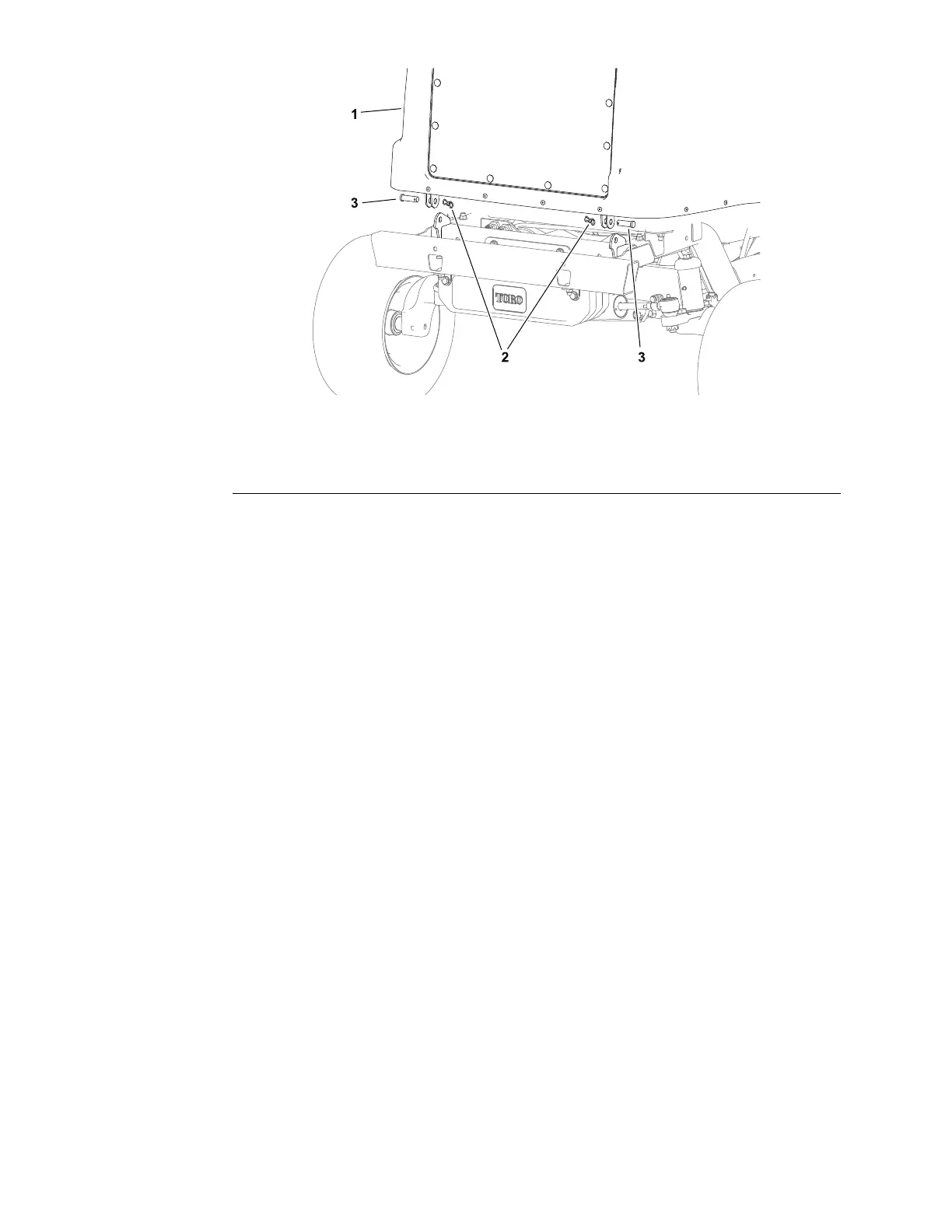

Figure124
1.Hoodassembly
3.Clevispin(2each)
2.Hairpin(2each)
RemovingandInstallingtheHood
RefertoFigure124forthisprocedure.
1.Withthehoodclosed,removethehairpinsandclevispinsfromthehood
hinges.
2.Liftthehoodassemblyfromthemachine.
3.Installthehoodinthereverseorder.
4.Adjustthebrackettocontactthefrontofthehoodwhentherearofthehood
contactsthecoolershroudseal.
