AirConditioningCompressor
g316096

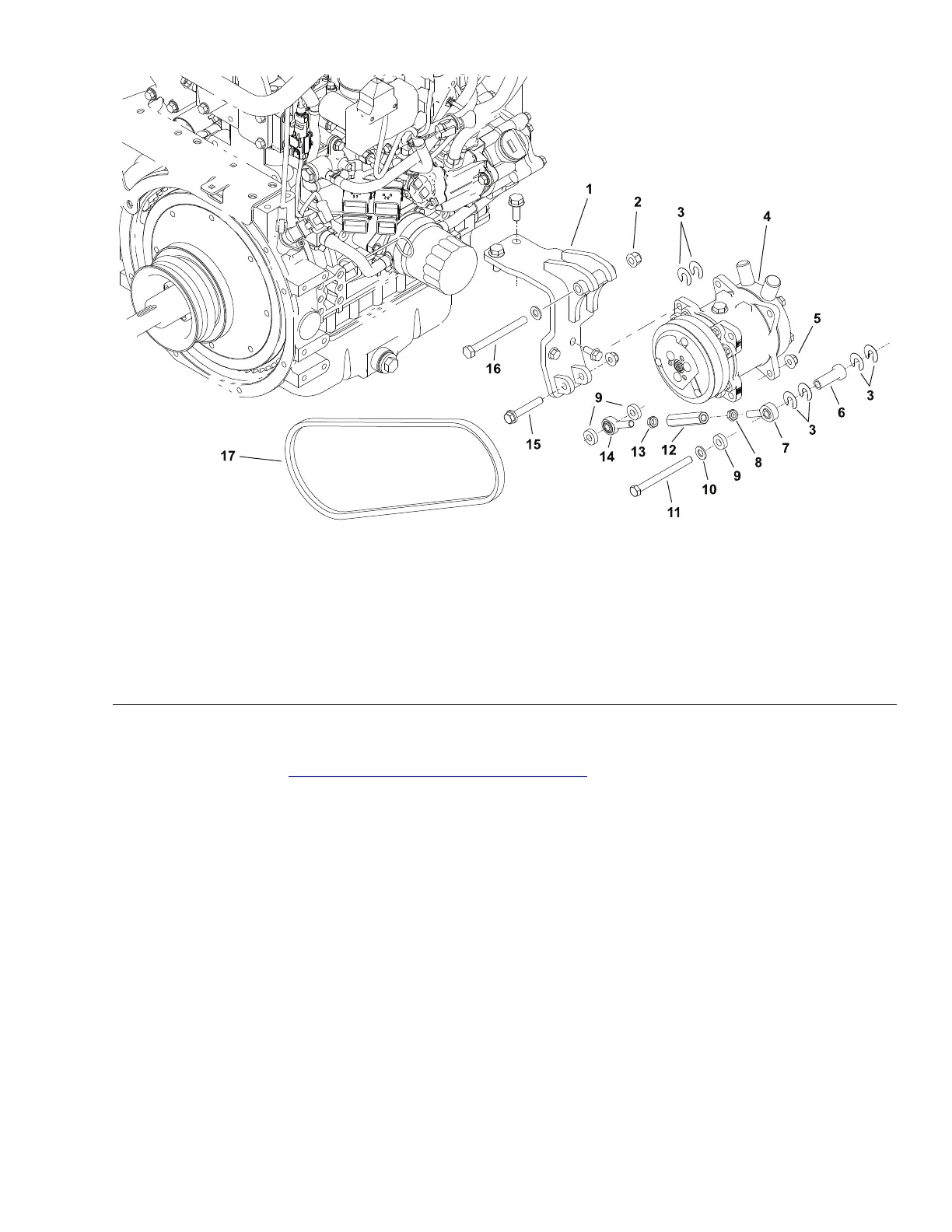

Figure147
1.Compressorbracket
7.Balljoint
13.Jamnut–lefthandthread
2.Flangenut(metric)
8.Jamnut
14.Balljoint–lefthandthread
3.Shim(asrequired)9.Spacer(3each)15.Capscrew
4.Compressor10.Washer(2each)16.Capscrew(metric)
5.Locknut(2each)11.Capscrew
17.V-belt
6.Spacer
12.Turnbuckle
TheairconditioningcompressorusedontheGroundsmaster3310isaSanden
modelSD5H09.Forairconditioningcompressorrepairprocedures;refertothe
SandenSDCompressorServiceGuide
.
Note:Replacementofthedrier−receiverisrecommendedwheneverthe
compressorisservicedorreplaced.
ReplacingtheCompressorDriveBelt
RefertoFigure146forthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunit(orattachment),
engagetheparkingbrake,setthekeyswitchtotheOFFpositionandremove
thekeyfromthekeyswitch.
Note:Thejamnutatthebottomoftheturnbucklehaslefthandthreads.
2.Loosentheturnbucklejamnutsandrotatetheturnbuckletorelievethebelt
tension.RemovetheV-beltfromthecompressorpulley.
3.Usea1/2inchsquaredriveonthehydraulicpumpdrivebeltidlerarmto
relievethebelttensionandremovethebeltfromtheidlerandpumppulley.
4.DisconnectthecuttingunitdriveshaftatthePTOclutch.
5.RemovetheclutchstopstrapfromthePTOclutch.
Groundsmaster
®
3200,3300and3310
Page9–11
OperatorCab:ServiceandRepairs
19240SLRevA
