Toro Groundmaster Series - Calculating the Torque Values When Using a Drive-Adapter Wrench

CalculatingtheTorqueValuesWhenUsingaDrive-AdapterWrench

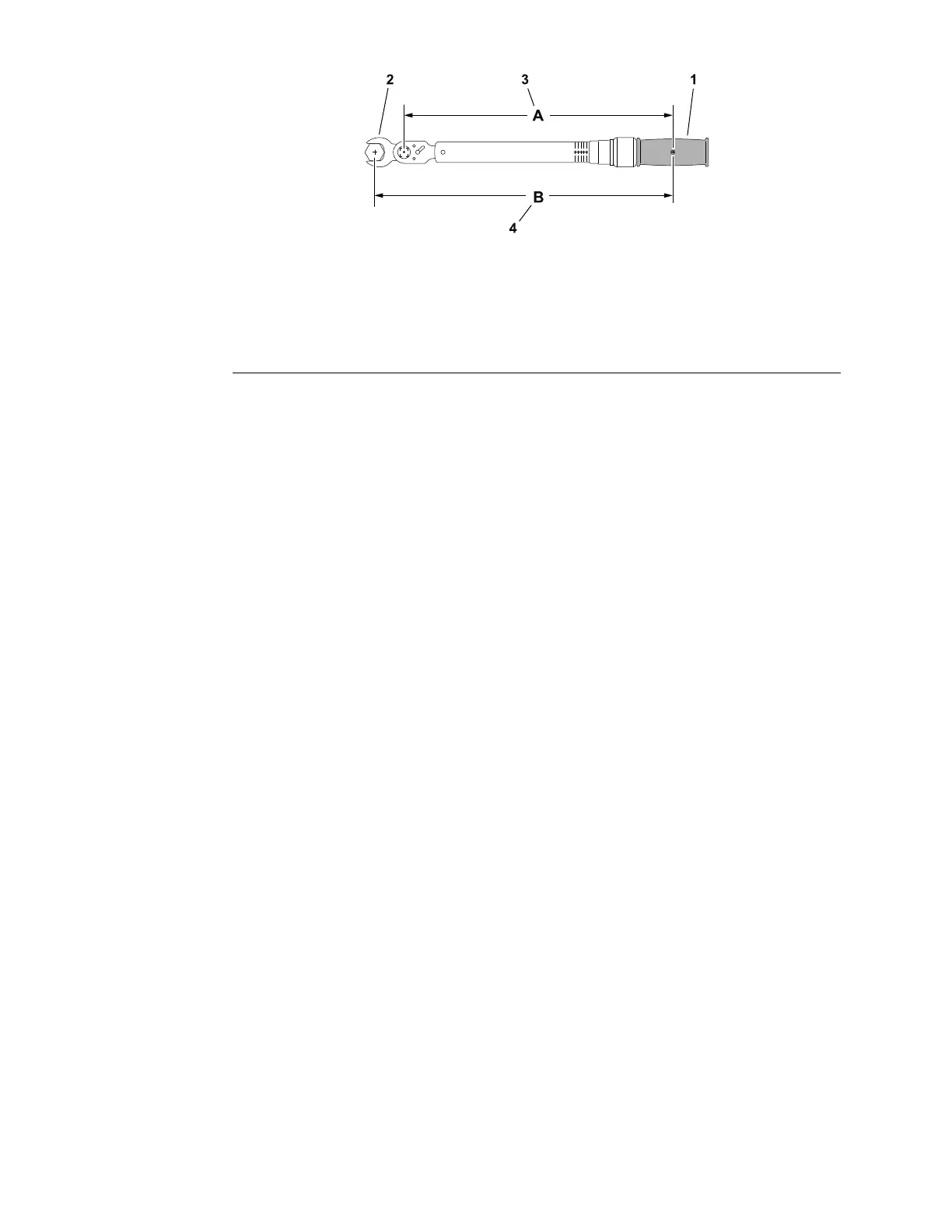

g205924
Figure3
TorqueConversionFactor=A/B
1.Torquewrench
3.A(effectivelengthoftorquewrench)
2.Drive-adapterwrench(crowsfoot)4.B(effectivelengthoftorquewrenchand
drive-adapterwrench)
Usingadrive-adapterwrench(e.g.,crowfootwrench)inanypositionotherthan
90°and270°totheframeofthetorquewrenchwillaffectthetorquevalue
measuredbythetorquewrenchbecauseoftheeffectivelength(lever)ofthe
torquewrenchchanges.Whenusingatorquewrenchwithadrive-adapter
wrench,multiplythelistedtorquerecommendationbythecalculatedtorque
conversionfactor(Figure3)todeterminepropertighteningtorque.Whenusinga
torquewrenchwithadrive-adapterwrench,thecalculatedtorquewillbelower
thanthelistedtorquerecommendation.
Example:Themeasuredeffectivelengthofthetorquewrench(distancefrom
thecenterofthehandletothecenterofthesquaredrive)is457mm(18inches).
Themeasuredeffectivelengthofthetorquewrenchwiththedrive-adapter
wrenchinstalled(distancefromthecenterofthehandletothecenterofthe
drive-adapterwrench)is483mm(19inches).
Thecalculatedtorqueconversionfactorforthistorquewrenchwiththis
drive-adapterwrenchwouldbe18/19=0.947.
Ifthelistedtorquerecommendationforafasteneris103to127N∙m(76to94
ft-lb),thepropertorquewhenusingthistorquewrenchwithadrive-adapter
wrenchwouldbe98to121N∙m(72to89ft-lb).
