Toro Groundmaster Series - Adjusting the PTO Clutch

AdjustingthePTOClutch
g314284

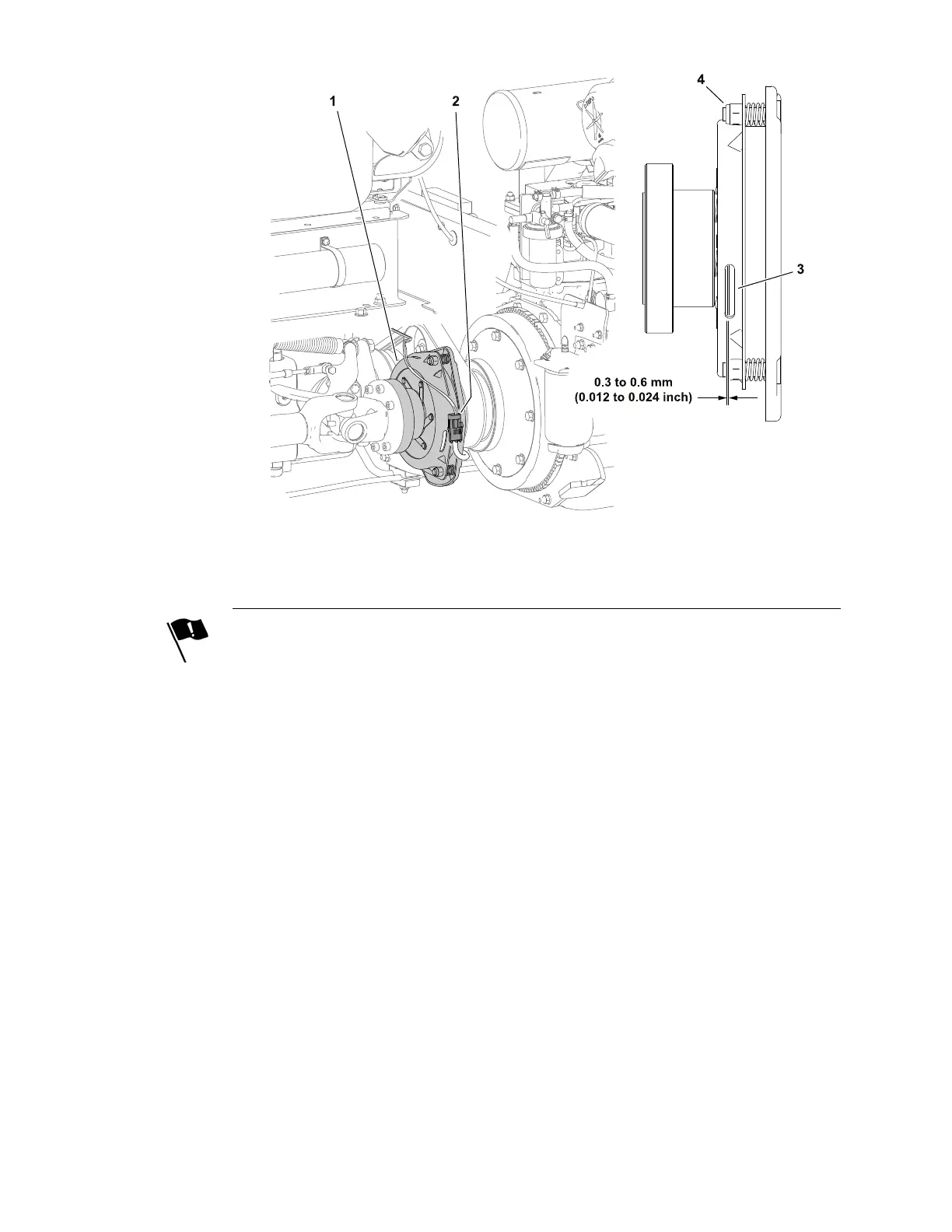

Figure110
1.PTOclutch3.Accessslot(3each)
2.Wireharnessconnector
4.Locknut(3each)
1.Usetheaccessslotsintheclutchcovertomeasurethegapbetweenthe
clutchrotorandthearmature.Thegapshouldbe0.3to0.6mm(0.012to
0.024inch)atallthe3accessslots.
2.Ifthegapisincorrect,loosenortightenthe3locknutstoachievethecorrect
gapateachaccessslot.
Chassis:Adjustments
Page7–4
Groundsmaster
®
3200,3300and3310
19240SLRevA
