Toro Groundmaster Series - Rear Axle and Spindles

RearAxleandSpindles

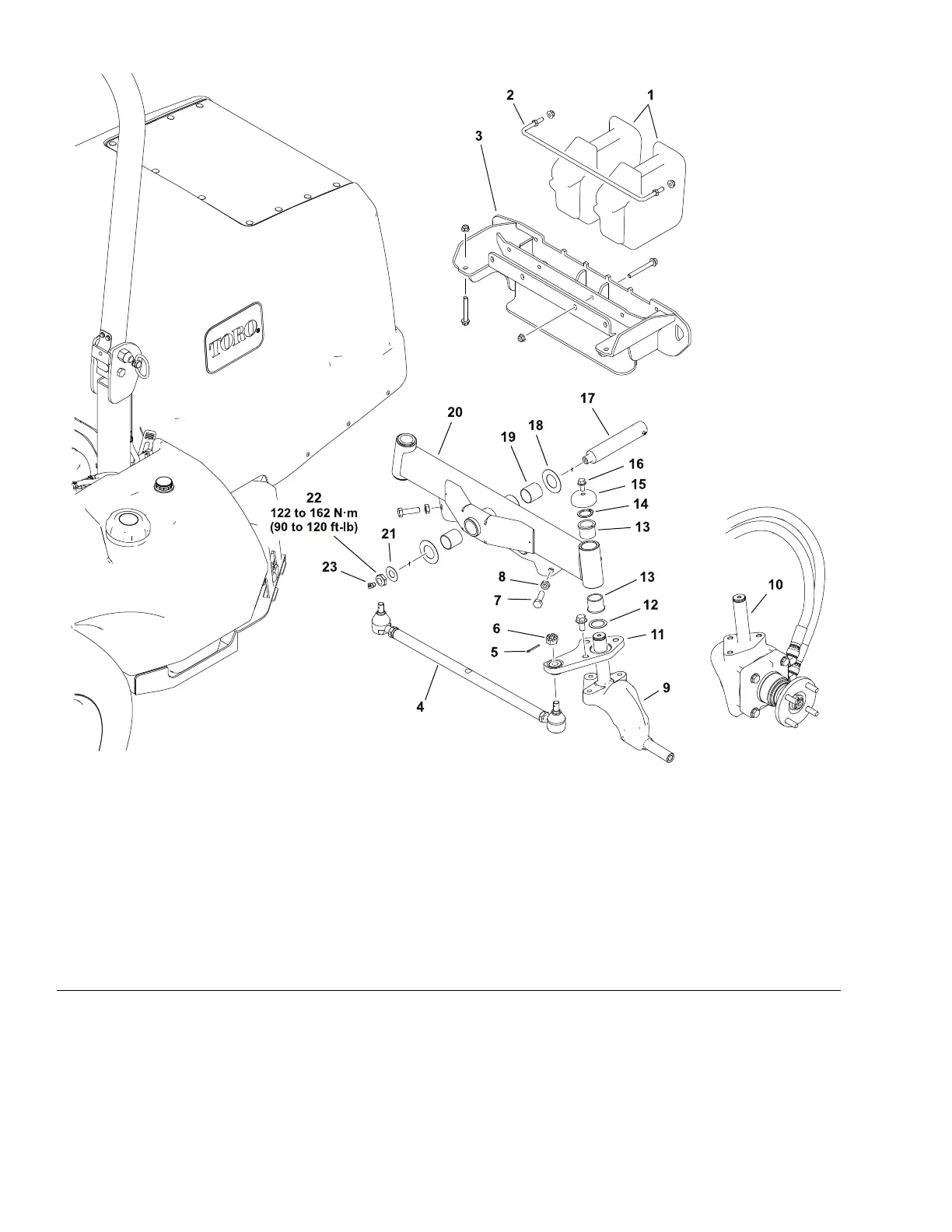

g314919
Figure119
1.Weight9.Rearwheelspindle2WD17.Pivotpin
2.Weightlock10.Rearwheelspindle4WD
18.Thrustwasher(2each)
3.Rearbumper
11.Draglink(2each)19.Sleevebushing(2each)
4.Tierodassembly
12.Thrustwasher(2each)
20.Rearaxle
5.Cotterpin(2each)13.Flangebushing(4each)
21.Thrustwasher
6.Slottednut(2each)14.Retainingring(2each)
22.Locknut
7.Steeringstopbolt(2each)15.Cap(2each)23.Greasetting
8.Jamnut(2each)16.Capscrew(2each)
RemovingtheRearAxle
RefertoFigure119forthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunit(orattachment),
engagetheparkingbrake,setthekeyswitchtotheOFFpositionandremove
thekeyfromthekeyswitch.
Chassis:ServiceandRepairs
Page7–16
Groundsmaster
®
3200,3300and3310
19240SLRevA
