Relayswith4Terminals

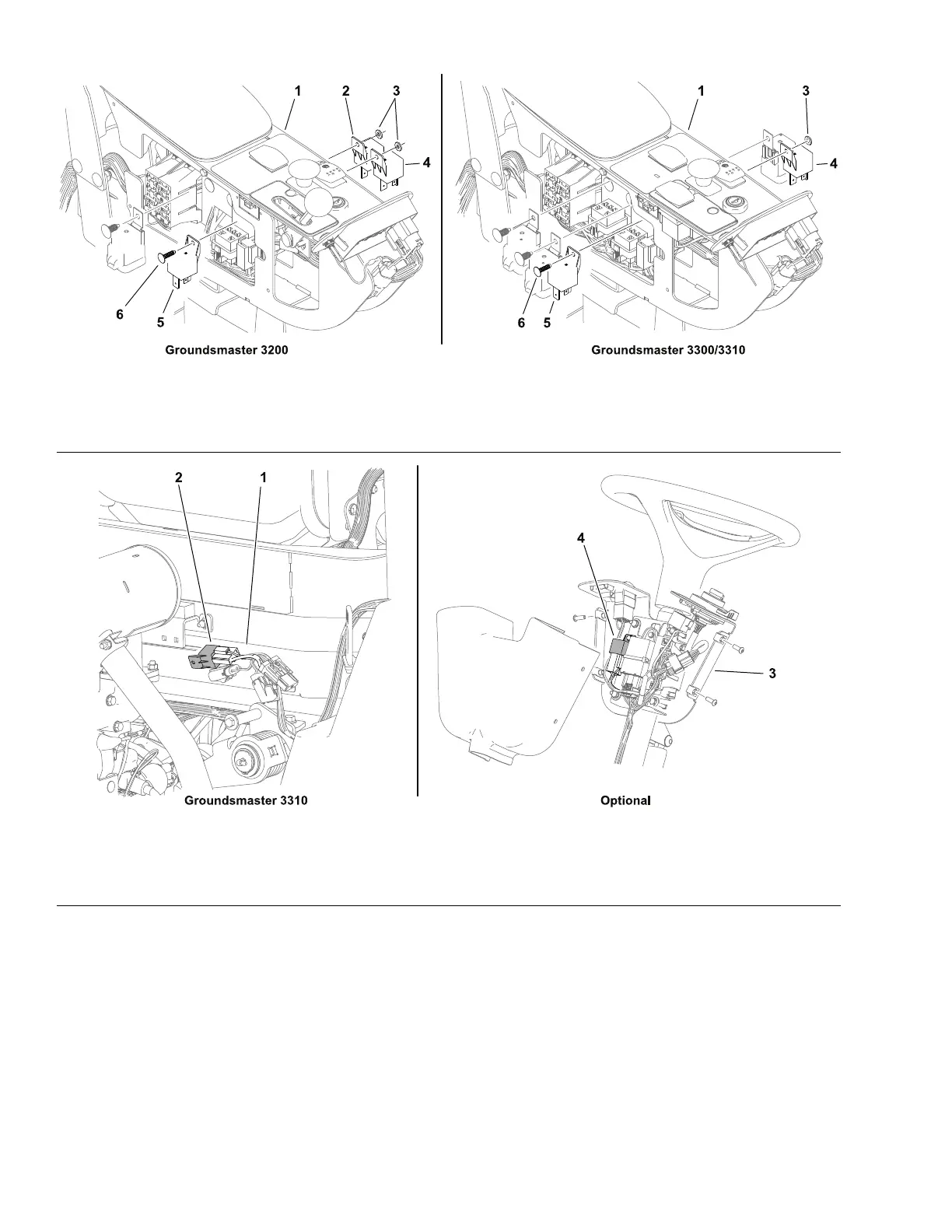

g304775
Figure93
1.Operator’sconsole
3.Washer5.Relay–glowplug
2.Relay–fuelsolenoidpullcoil
4.Relay–mainpower
6.Panelfastener
g306841
Figure94
1.Framecrossmember
3.Steeringcolumncontrolpod(optional)
2.Cabpowerrelay4.Hornrelay(optional)
TheGroundsmaster3200machineuses3identicalrelaysthathave4terminals.
TheGroundsmaster3300/3310machinesuse2identicalrelaysthathave4
terminals.Therelaysarelocatedintheoperator’sconsole.Atagnearthewire
harnessrelayconnectorcanbeusedtoidentifyeachrelay.
Groundsmaster3310machineshaveanadditional4terminalrelayusedto
controlthecabcontrolcircuitslocatedalongtheframecrossmemberinfront
oftheengine.
Anadditional4terminalrelayispartoftheoptionalhornkitandislocatedinthe
steeringcolumncontrolpod.
Relayswith4terminals:
ElectricalSystem:TestingtheElectricalComponents
Page6–42
Groundsmaster
®
3200,3300and3310
19240SLRevA
