Toro Groundmaster Series - Air Ride Suspension Seat (Model 31982)

AirRideSuspensionSeat(Model31982)
g314969

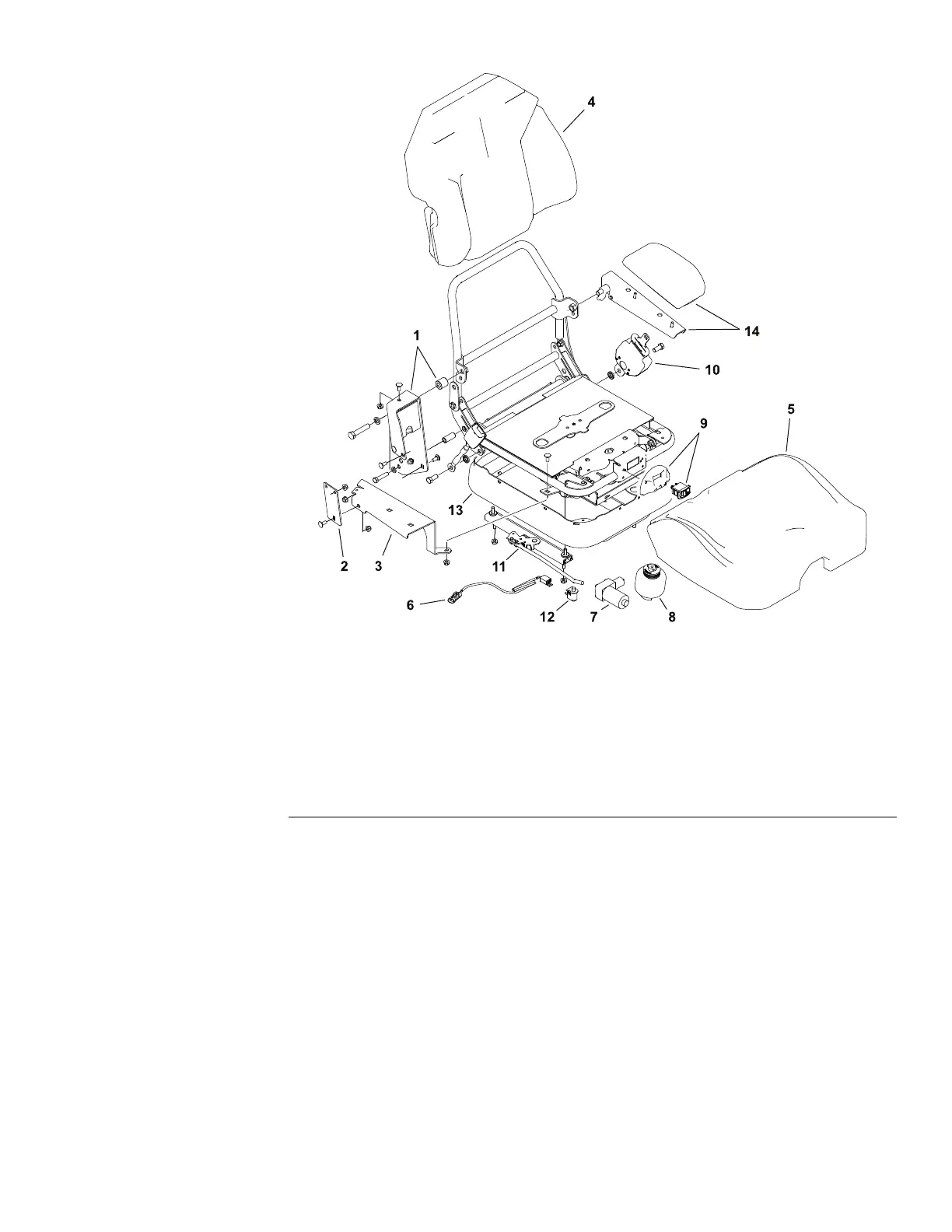

Figure128
1.Upperconsolemountkit8.Airbagkit
2.Bracketkit9.Airvalvekit
3.Lowerconsolemount
10.Seatbeltkit
4.Backcover
11.Seattrackkit
5.Cushioncover12.Seatswitch
6.Seatharness(2pieces)
13.Bellows
7.Aircompressorkit14.Armrestkit
Groundsmaster
®
3200,3300and3310
Page7–29
Chassis:ServiceandRepairs
19240SLRevA
