Piston(traction)Pump(P1)
g302934

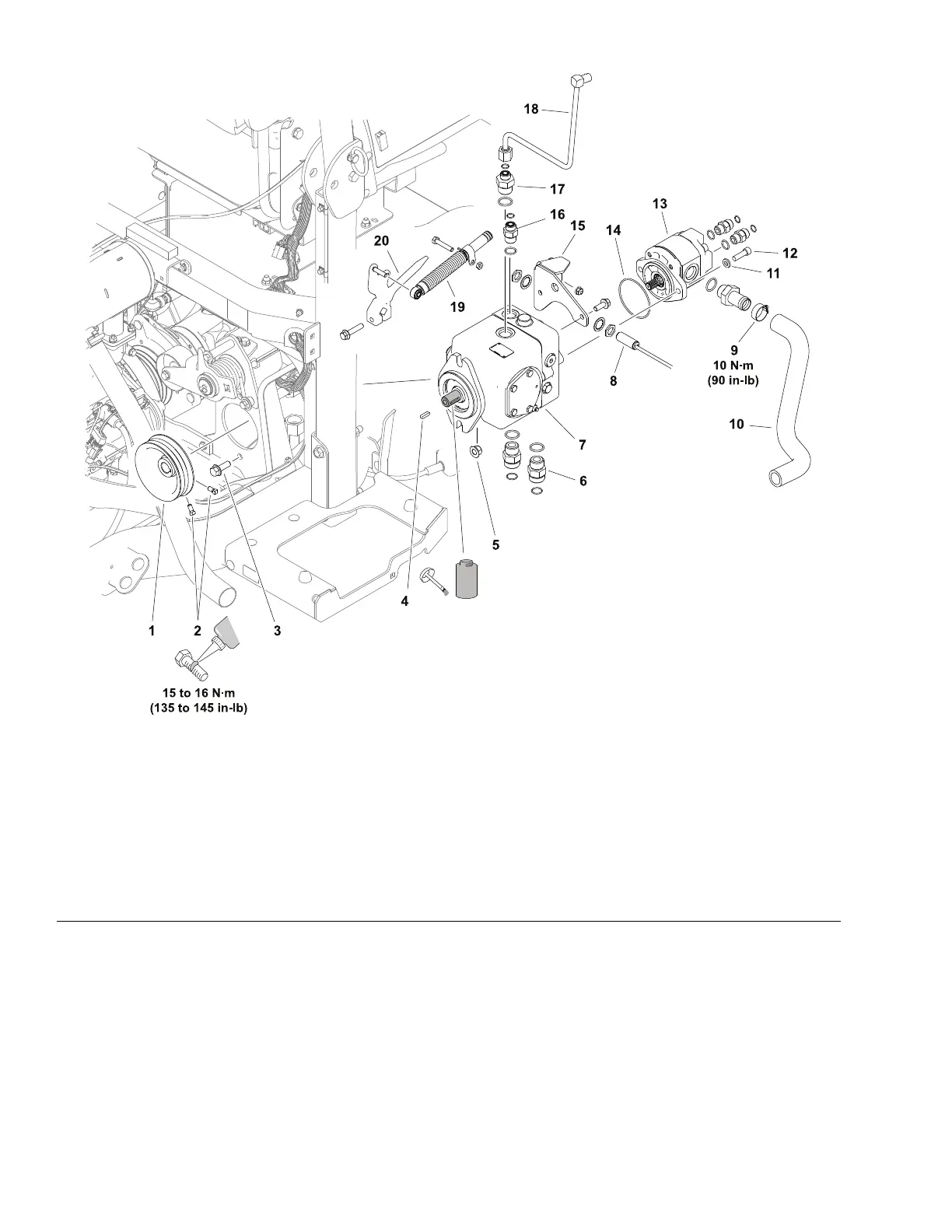

Figure51
1.Pumppulley8.Neutralswitch15.Bracket
2.Squareheadsetscrew(2each)
9.Hoseclamp
16.Straighttting
3.Capscrew(2each)
10.Suctionhose17.Straighttting
4.Key
11.Washer(2each)
18.Returntube
5.Flangenut(2each)12.Capscrew(2each)
19.Damper
6.Straighttting(2each)13.Gearpump
20.Pumplever
7.Traction(piston)pump14.O-ring
RemovingtheTraction(piston)Pump
Note:Thegearpump(P2)canberemovedseparatelyorwiththetraction
(piston)pump;refertoRemovingtheGearPump(page5–75).
RefertoFigure51forthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunit(orattachment),
setthekeyswitchtotheOFFpositionandremovethekeyfromthekeyswitch.
2.Removethefrontleftwheel;refertoRemovingandInstallingtheWheels
(page7–5).
HydraulicSystem:ServiceandRepairs
Page5–70
Groundsmaster
®
3200,3300and3310
19240SLRevA
