EngineElectronicControlUnit(ECU)(Models31902and31903)
g295739

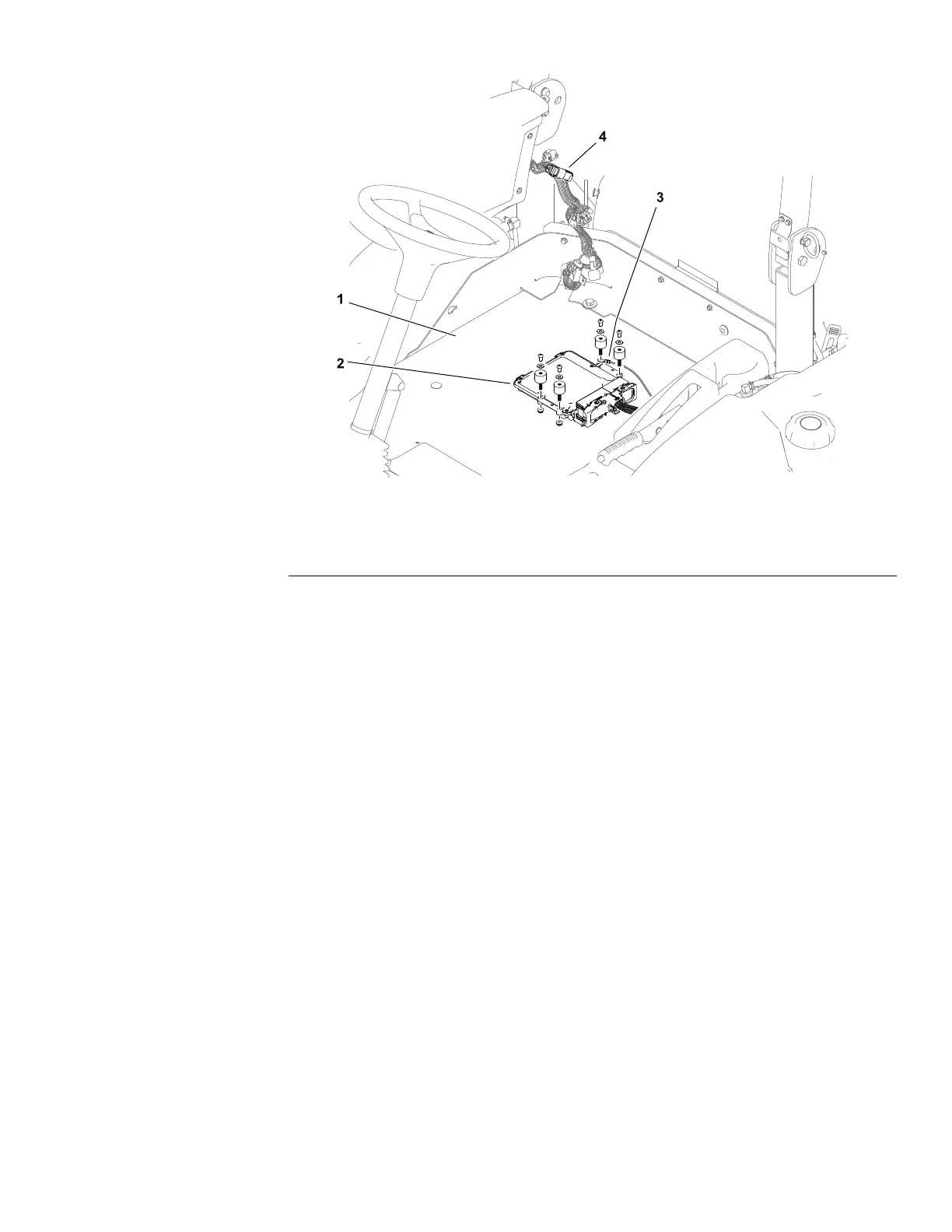

Figure8
1.Operator’splatform3.EngineECUgroundwire
2.EngineECU4.YanmarSA-Dconnector
TheYanmarenginethatpowerstheGroundsmaster3300/3310(model31902
and31903)usesanElectronicControlUnit(ECU)forenginemanagement.
TheTDMdisplay/controllerandtheYanmarEngineControlUnit(ECU)used
ontheGroundsmaster3300/3310machinecommunicatewitheachother
onaControllerAreaNetwork(CAN)bussystem.Allwireharnesselectrical
connectorsshouldbepluggedintotheECUbeforethemachinekeyswitchis
movedfromtheOFFpositiontoeithertheONorSTARTposition.TheengineECU
isattachedtotheundersideoftheoperator’splatform.
Avarietyofengineelectricalcomponents(e.g.ECU,fuelinjectors,EGR
sensor,exhaustDPFsensor,etc.)areidentiedandmatchedintheengine
ECUprogram.Ifengineelectricalcomponentsarereplacedontheengine,
theYanmarSmartAssist–Directtool(SA-D)mustbeusedtoupdatetheECU
programtoensurethattheengineoperatescorrectly.TheYanmarSA-D
connectorislocatedbehindtheoperator’sconsole.
