Engine
g297765

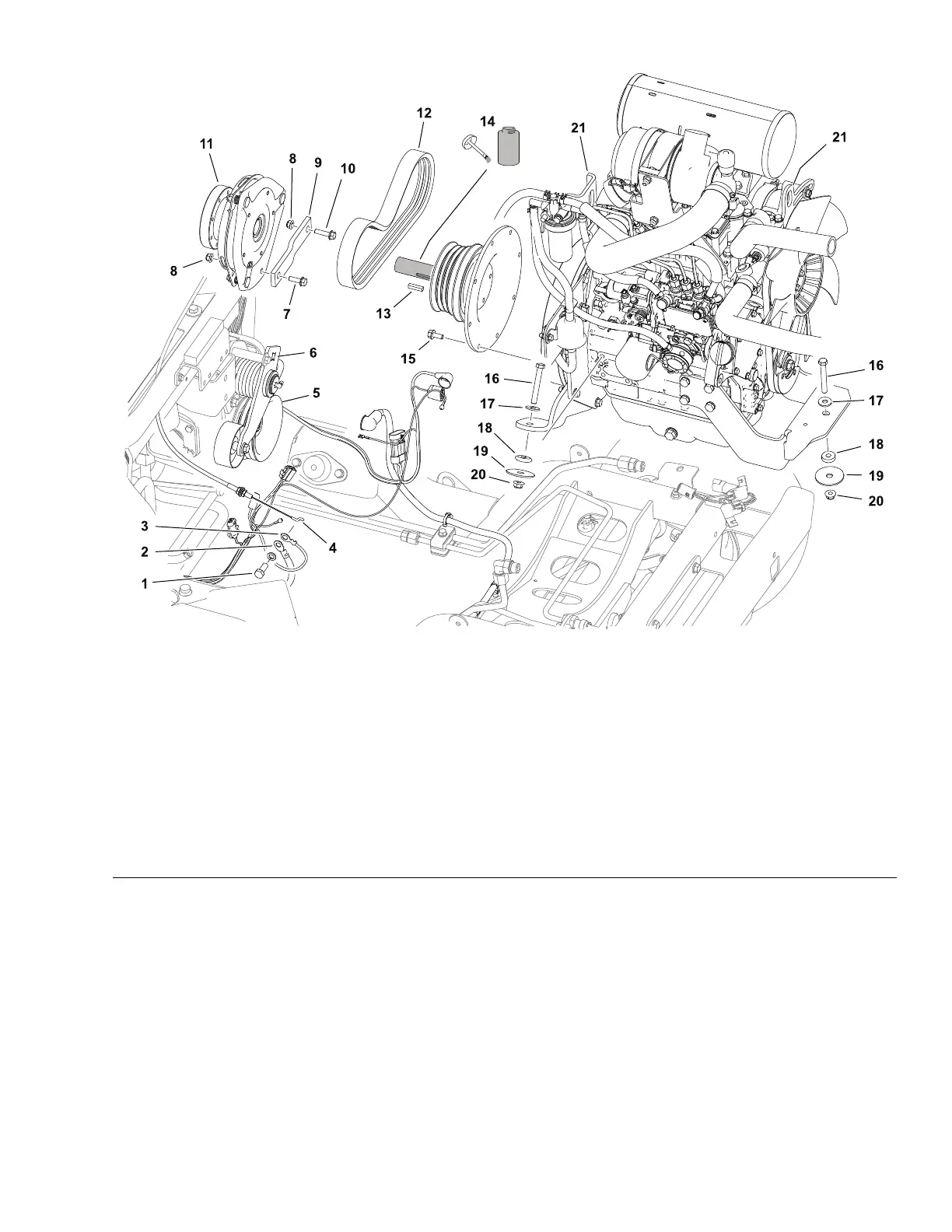

Figure17
(model31900and31901shown)
1.Capscrew8.Flangenut(2each)15.Capscrew(8each)
2.Negative(-)batterycable9.PTOclutchstopstrap16.Capscrew(3each)
3.Wireharnessground
10.Capscrew17.Flatwasher(3each)
4.Throttlecable(model31900and
31901only)
11.PTOclutch18.Spacer(3each)
5.Pumppulley12.Pumpdrivebelt
19.Snubbingwasher(3each)
6.Drivebeltidlerarm
13.Squarekey20.Flangenut(3each)
7.Capscrew14.Stubshaft21.Engineliftlugs
RemovingtheEngine
RefertoFigure17forthisprocedure.
1.Removetheradiatorandhydraulicuidcooler;refertoRemovingthe
RadiatorandHydraulicFluidCooler(page4–14).
2.Removetheexhausttube;refertoRemovingandInstallingtheExhaust
System(page4–11).
3.Disconnectthefuelsupplyhosefromthefuel/waterseparator,andthefuel
returnhosefromthefueltank;refertoFuelSystem(page4–16).
4.Removethefuel/waterseparatorassemblyfromitssupportbracket.
