Toro Groundmaster Series - Steering Column

SteeringColumn
g314030

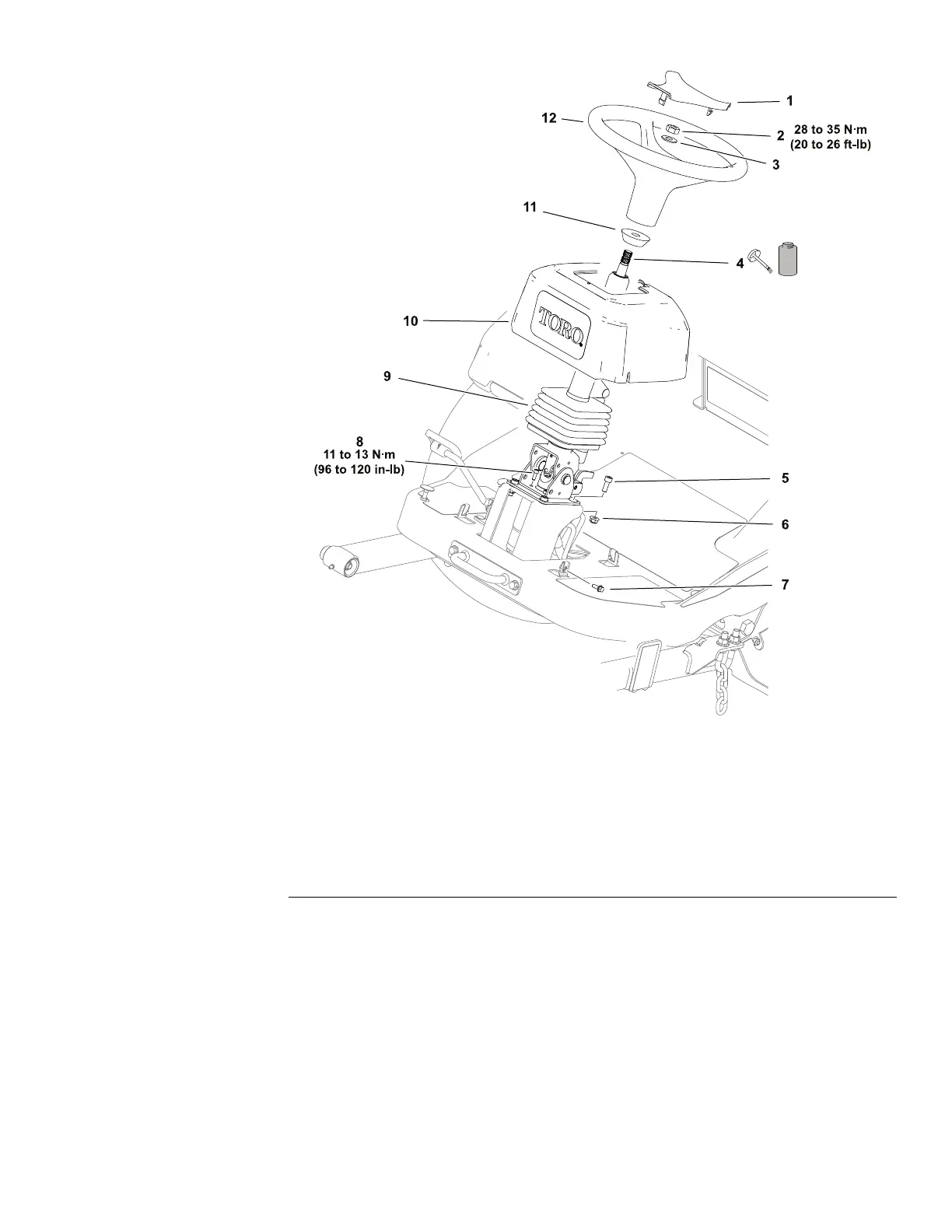

Figure117
1.Steeringwheelcover7.Capscrew(4each)
2.Locknut
8.Capscrew(4each)
3.Flatwasher9.Rubberbellows
4.Steeringcolumn10.Steeringcover
5.Capscrew(4each)
11.Foamcollar
6.Locknut(4each)12.Steeringwheel
RemovingtheSteeringColumn
1.Parkthemachineonalevelsurface,engagetheparkingbrake,lowerthe
cuttingunit(orattachment),setthekeyswitchtotheOFFpositionand
removethekeyfromthekeyswitch.
2.Carefullyremovethesteeringwheelcoverfromthesteeringwheel.
3.Removethelocknutandatwasherthatsecurethesteeringwheeltothe
steeringcolumn.
4.Useasuitablepullertoremovethesteeringwheelfromthesteeringtower
assembly.Removethefoamcollar.
5.Removethesteeringcoverfastenersandthesteeringcover.
Groundsmaster
®
3200,3300and3310
Page7–13
Chassis:ServiceandRepairs
19240SLRevA
