Toro Groundmaster Series - Fuel System

FuelSystem
g296817

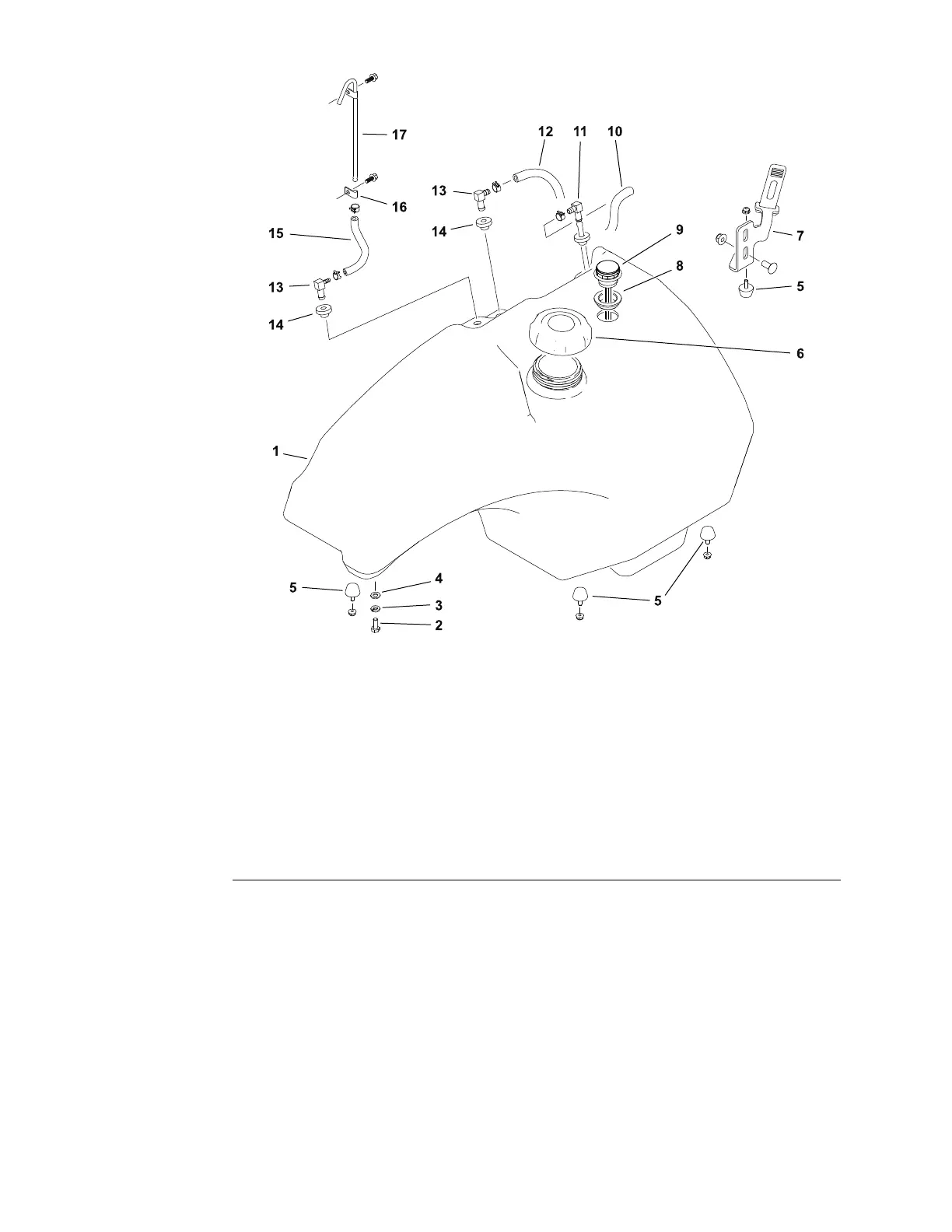

Figure15
1.Fueltank10.Fuelhose,supply
2.Capscrew11.Standpipe
3.Lockwasher12.Fuelhose,return
4.Flatwasher
13.Barbtting(2used)
5.Bumper(4used)14.Grommet(3used)
6.Fuelcap15.Fuelhose,vent
7.Bracket,holddown
16.Clamp(2used)
8.Seal
17.Tube,vent
9.Fuellevelgauge
Engine:ServiceandRepairs
Page4–16
Groundsmaster
®
3200,3300and3310
19240SLRevA
