HydraulicManifoldService
g297318

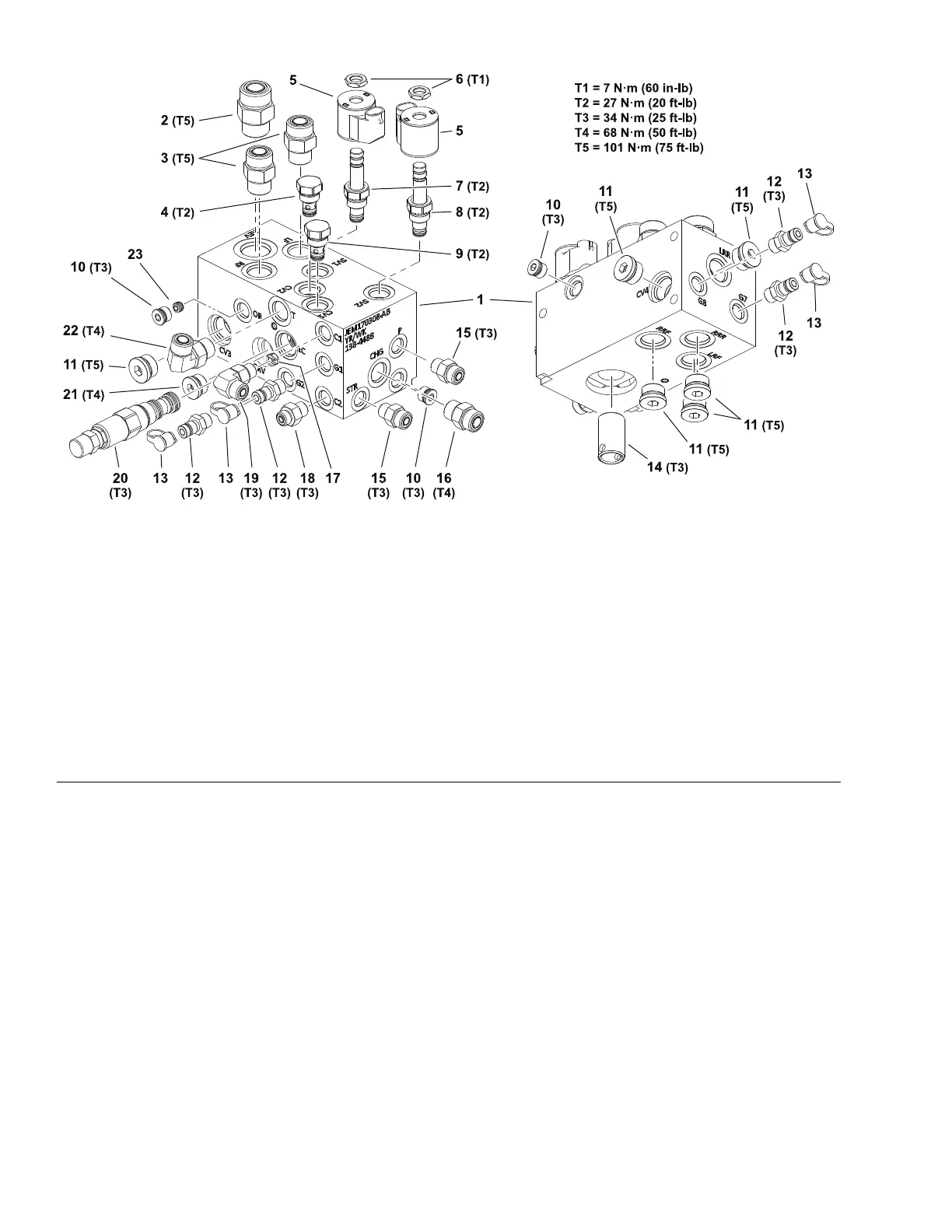

Figure62
(2WDManifold–Model31900)
1.Manifoldblock9.Checkvalve–CV117.Checkorice–0.100inch–C1
2.Straighttting10.#6zero-leakplugwithO-ring(3
each)
18.Straighttting
3.Straighttting(2each)11.#10zero-leakplugwithO-ring(6
each)
19.Elbowtting
4.Checkvalve–CV212.Diagnostictting(4each)20.Logiccartridge–LC
5.Solenoidcoil(2each)13.Cap(4each)21.#8zero-leakplugwithO-ring
6.Coilnut(2each)
14.Filternipple
22.Elbowtting
7.Solenoidvalve–SV115.Straighttting(2each)23.Controlorice–0.040inch–OR
8.Solenoidvalve–SV216.Straighttting
HydraulicSystem:ServiceandRepairs
Page5–90
Groundsmaster
®
3200,3300and3310
19240SLRevA
