Toro Groundmaster Series - Parking Brakes

ParkingBrakes
g313947

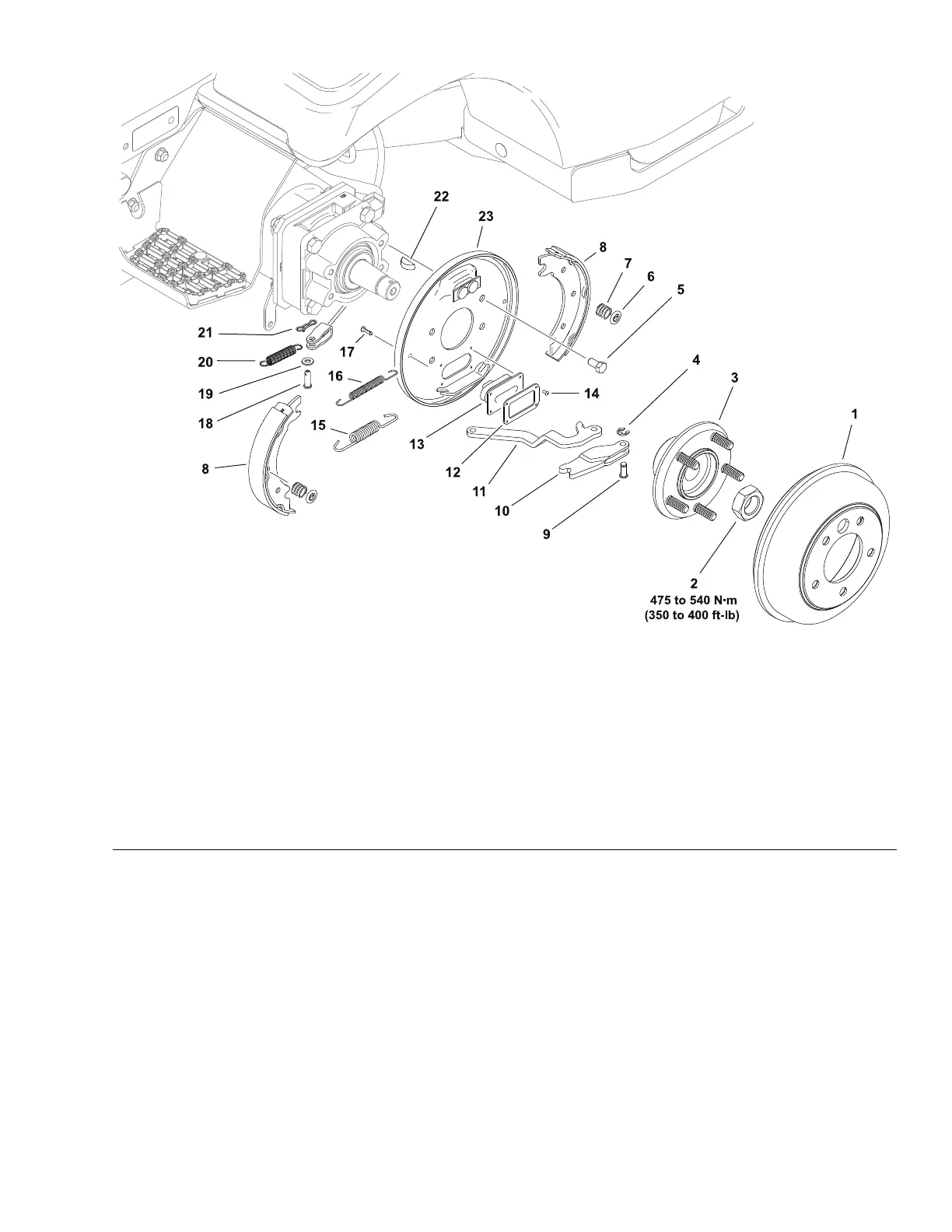

Figure112
1.Brakedrum
9.Clevispin17.Holddownpin(2each)
2.Wheelhubnut10.Brakeactuator
18.Clevispin
3.Wheelhub11.Brakeactuatorlever19.Washer
4.Retainingring12.Retainerplate20.Returnspring
5.Capscrew(4each)
13.Dustboot
21.Cotterpin
6.Holddowncup(2each)14.Rivet(4each)22.Woodruffkey
7.Holddownspring(2each)15.Spring–actuator
23.Brakeplate
8.Brakeshoe
16.Spring–pivot
DisassemblingtheParkingBrakes
RefertoFigure112forthisprocedure.
1.Removethefrontwheel;refertoRemovingandInstallingtheWheels(page
7–5).
2.Disengagetheparkingbrakeandremovethebrakereturnspring,cotterpin,
clevispinandwasherthatattachthebrakecabletothebrakeactuatorlever.
3.Removethebrakedrum.
4.Thebrakeshoescanbeservicedwithoutremovingthewheelhub.Ifbrake
plateremovalisnecessary:
A.Useatorquemultiplierandremovethewheelhubnut.Discardthe
locknut.
