Toro Groundmaster Series - Radiator

Radiator

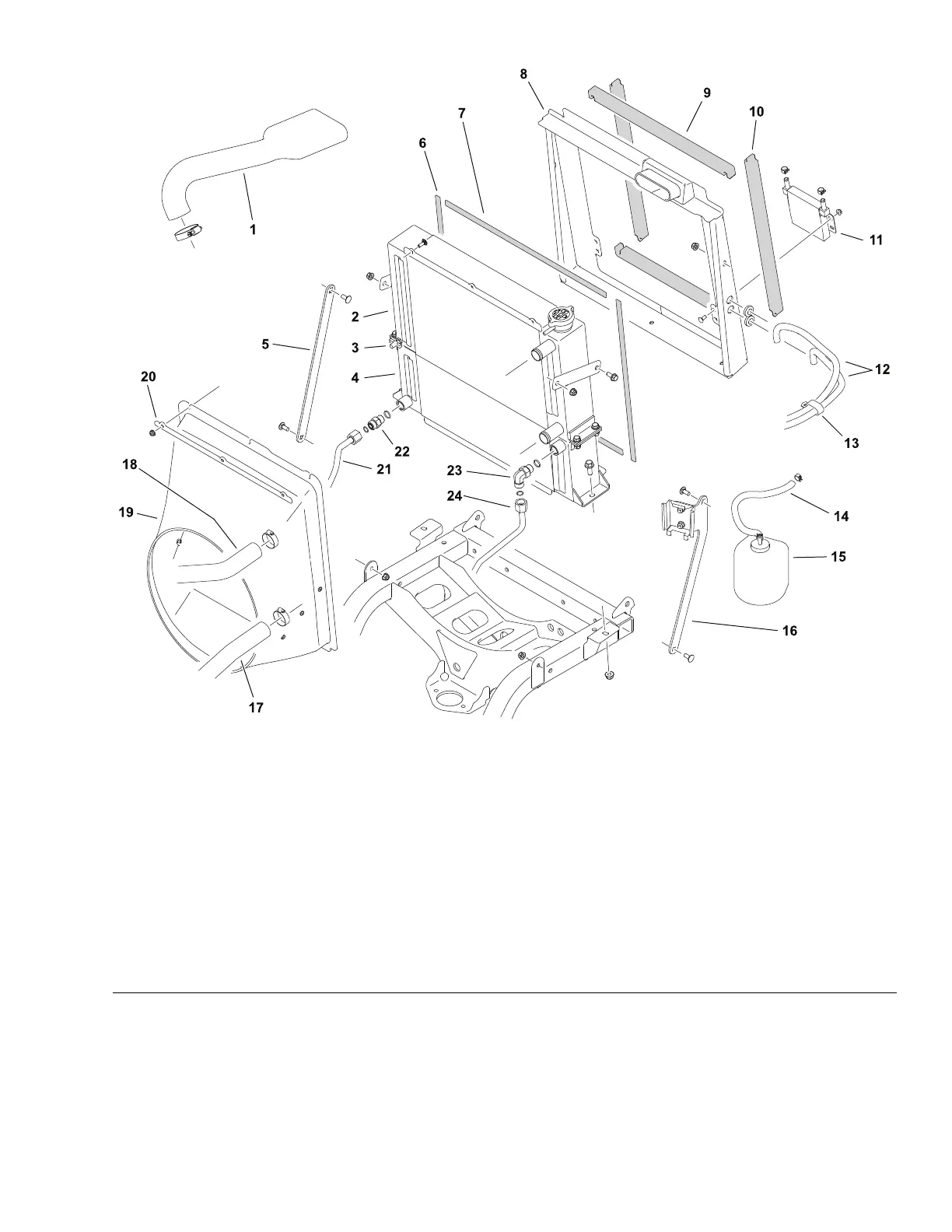

g296183
Figure14
1.Aircleanerintakehose
9.Foamseal(2each)17.Radiatorhose(lower)
2.Radiator/hydraulicuidcooler
(radiator)
10.Foamseal(2each)18.Radiatorhose(upper)
3.Coolantdrainvalve11.Fuelcooler(31902/31903)
19.Fanshroud
4.Radiator/hydraulicuidcooler(uid
cooler)
12.Fuelhoses(31902/31903)20.Shroudretainerbracket
5.Supportbracket–RH(non-cab
versionshown)
13.Clamp(31902/31903)
21.Hydraulictubeassembly
6.Radiatorfoam(2each)14.Coolantreservoirhose22.Hydraulictting–straight
7.Radiatorfoam(2each)15.Coolantreservoir23.Hydraulictting–elbow
8.Radiatorshroudassembly
16.Supportbracket–LH
24.Hydraulictubeassembly
TheradiatoronyourGroundsmaster3200/3300iscombinedwiththehydraulic
uidcooler.Theradiatorandhydraulicuidcoolershouldberemovedfromthe
machineasanassembly.Ifdesired,theradiatorandhydraulicuidcoolermay
beseparatedoncetheassemblyisremovedfromthemachine.
