Adjustments
AdjustingtheCompressorBeltTension
g316005

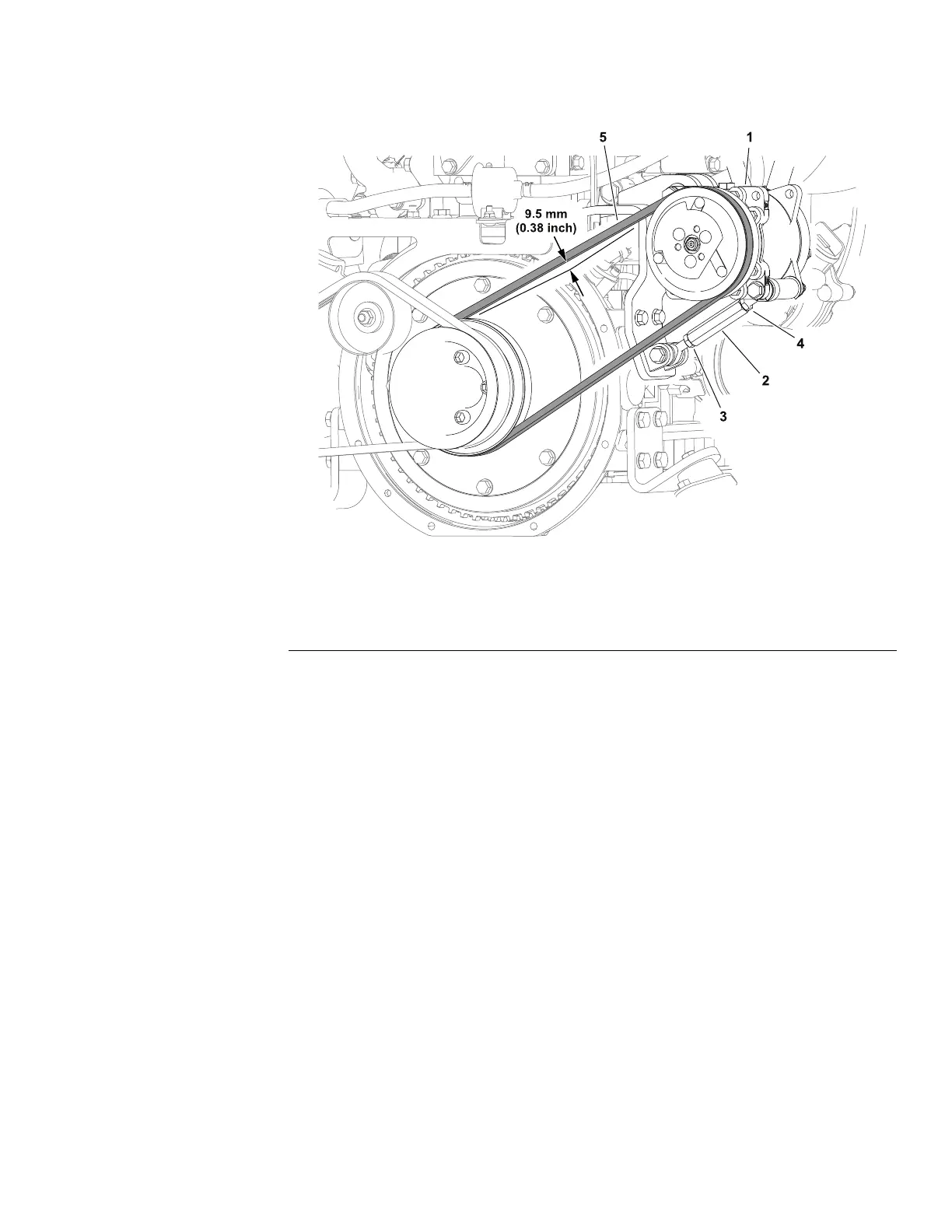

Figure145
1.Compressor
4.Jamnut–righthandthread
2.Turnbuckle5.V-belt
3.Jamnut–lefthandthread
Compressorbelttension=9.5mm(0.38inch)deectionwhen4.5kg(10lb)
isappliedtothetopofthebelthalfwaybetweentheengineandcompressor
pulleys.
Note:Thejamnutatthebottomoftheturnbucklehaslefthandthreads.
1.Loosenthejamnutsateachendoftheturnbuckle.
2.Rotatetheturnbuckletoincrease/decreasebeltdeectionasnecessary.
3.Tightenthejamnutsandrecheckthebelttension.
Groundsmaster
®
3200,3300and3310
Page9–7
