8-32 Phaser 7750 Printer Service Manual
Fuser Fan Assembly
1. Remove the rear cover, see page 8-6.
2. Remove the top cover, see page 8-5.
3. Remove the right side cover.
4. Note the routing of the wiring harness.
Note
It is easier to re-install the wire harness if the fuser fan and plastic mounting
bracket are removed from the printer.

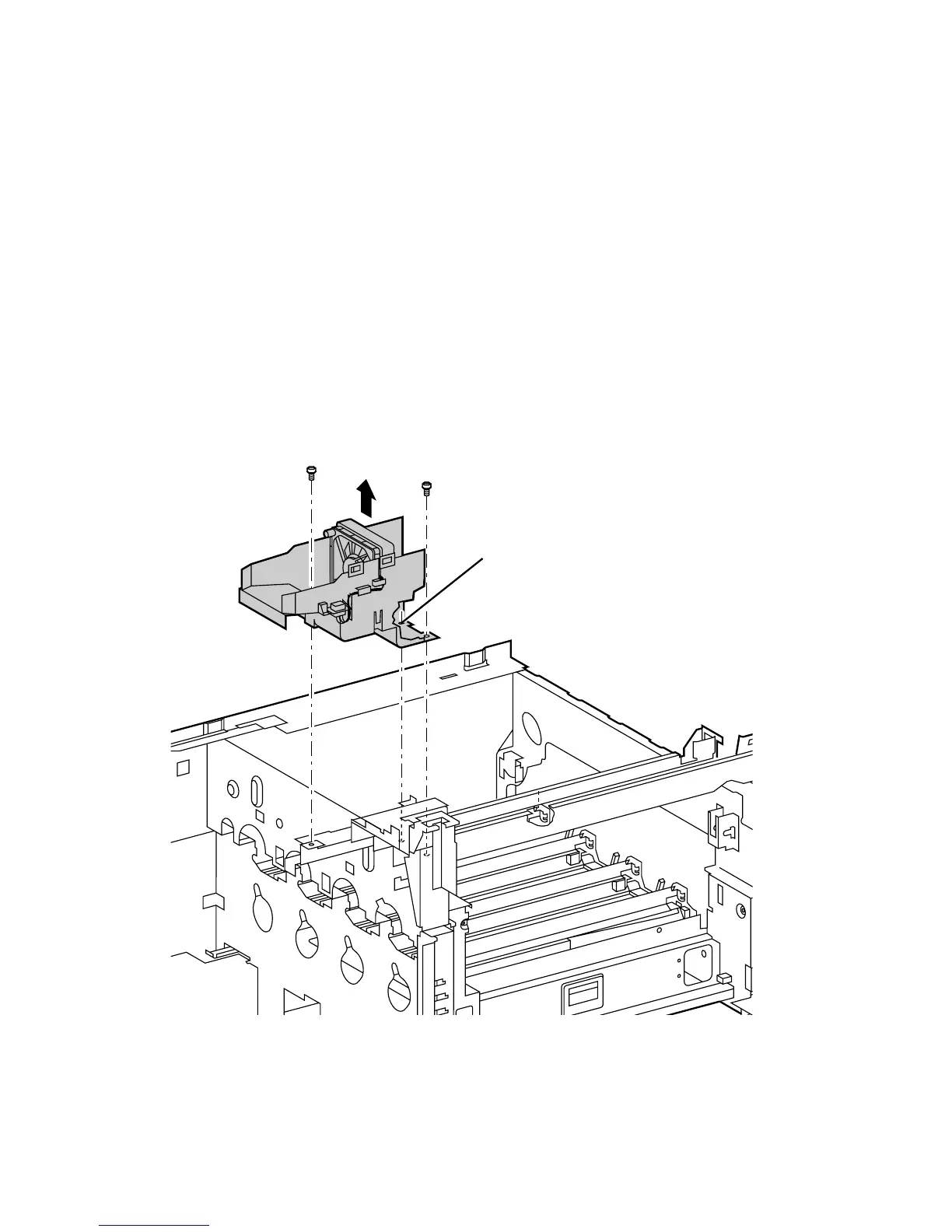

5. Remove the 2 screws securing the fuser fan assembly and remove the assembly.
6. Disconnect the wiring harness.
Locating Pin
7750-132
To Next Page
