General Information 1-11

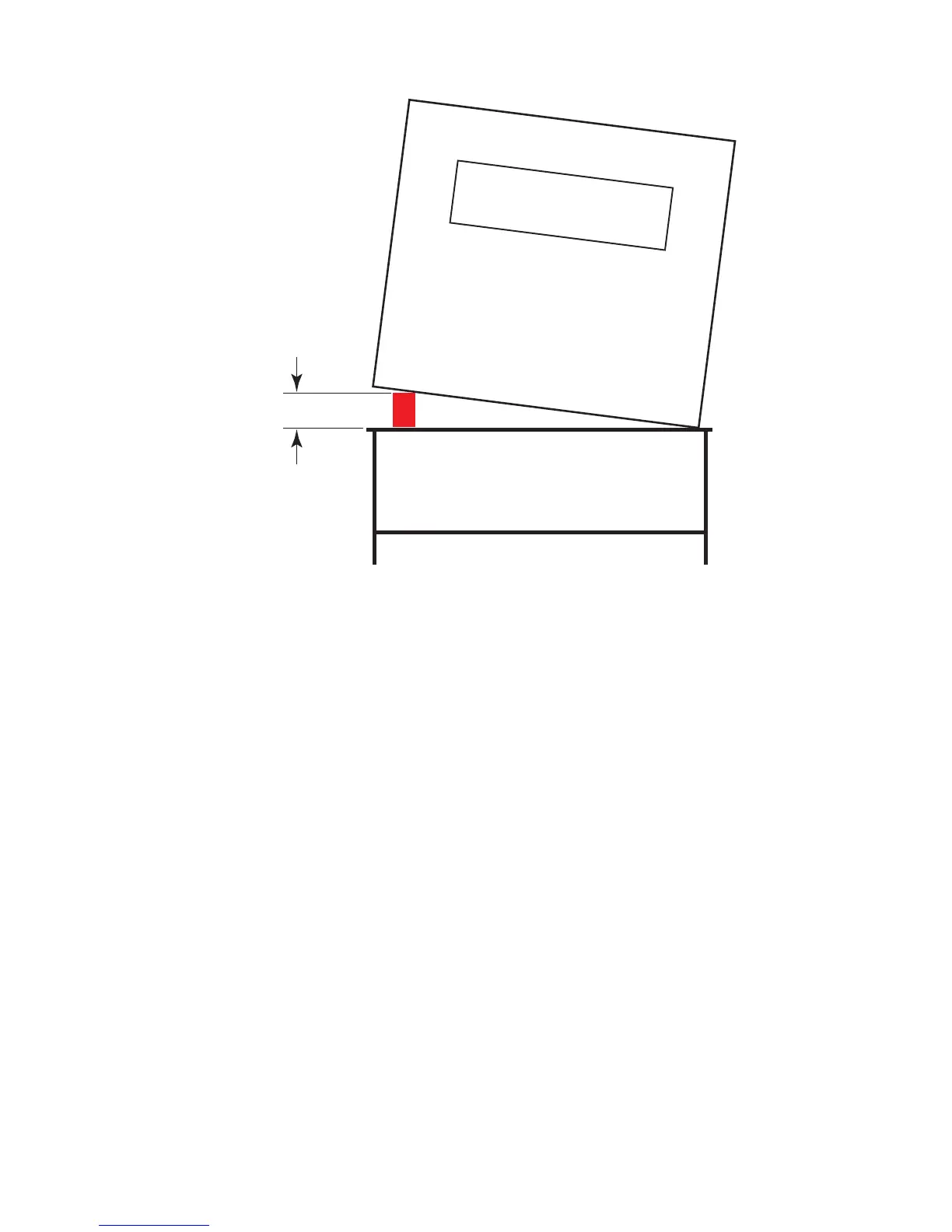

3. The printer must not be tipped or tilted more than is shown in the following
figure.
Failure to adhere to these mounting specifications will void all guarantees of print
quality and/or performance. Known problems that can occur as a result of exceeding
the mounting surface specifications are:
■ Color-to-Color mis-registration, primarily in the horizontal (laser scan)
direction.
■ A smear or band of toner approximately 40 mm from the trailing edge of the
print.
7750-341
5mm Max
