Xerox 7750DXF - Phaser Color Laser Printer - Page 349

10-25

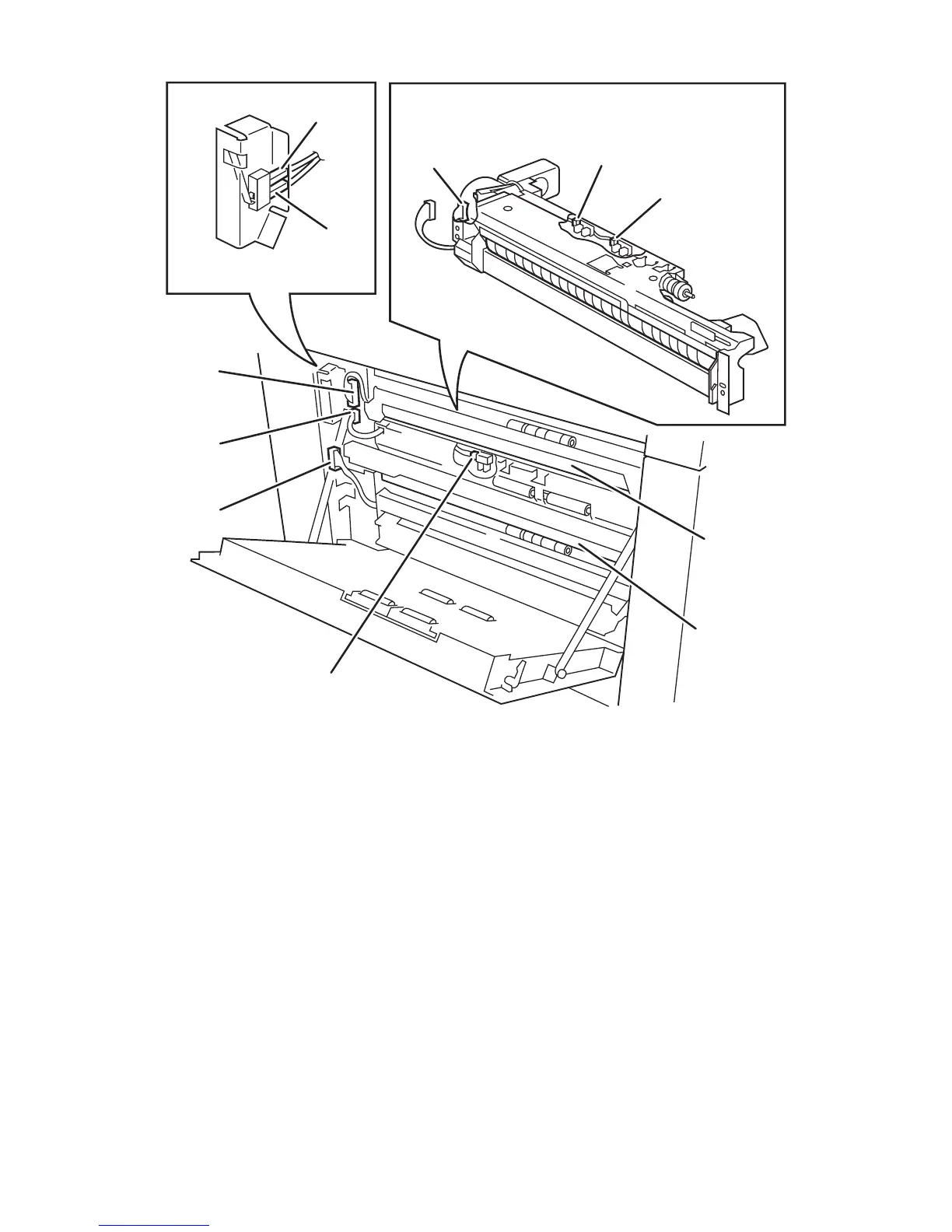

Map 20 - Tray 3 and 4 Feeders (HCF)
LH COVER
INTERLOCK SWITCH
FS813
FS812
7750-081
TRAY3 : P/J827
TRAY4 : P/J828
TRAY3 : P/J815
TRAY4 : P/J819
TRAY3 : P/J814
TRAY4 : P/J818
TRAY 3,4, FEEDER
P/J670
P/J841
P/J672
P/J821
TRAY 3 FEEDER
TRAY 4/5 FEEDER
