Xerox WorkCentre 5230 User Manual
4
of 1
of 1 rating
1457 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Februar
y
, 2008
7-108
WorkCentre 5225, 5230
Chain 7 Pap
er Supply
Launch V
ersion
Wirin
g Data

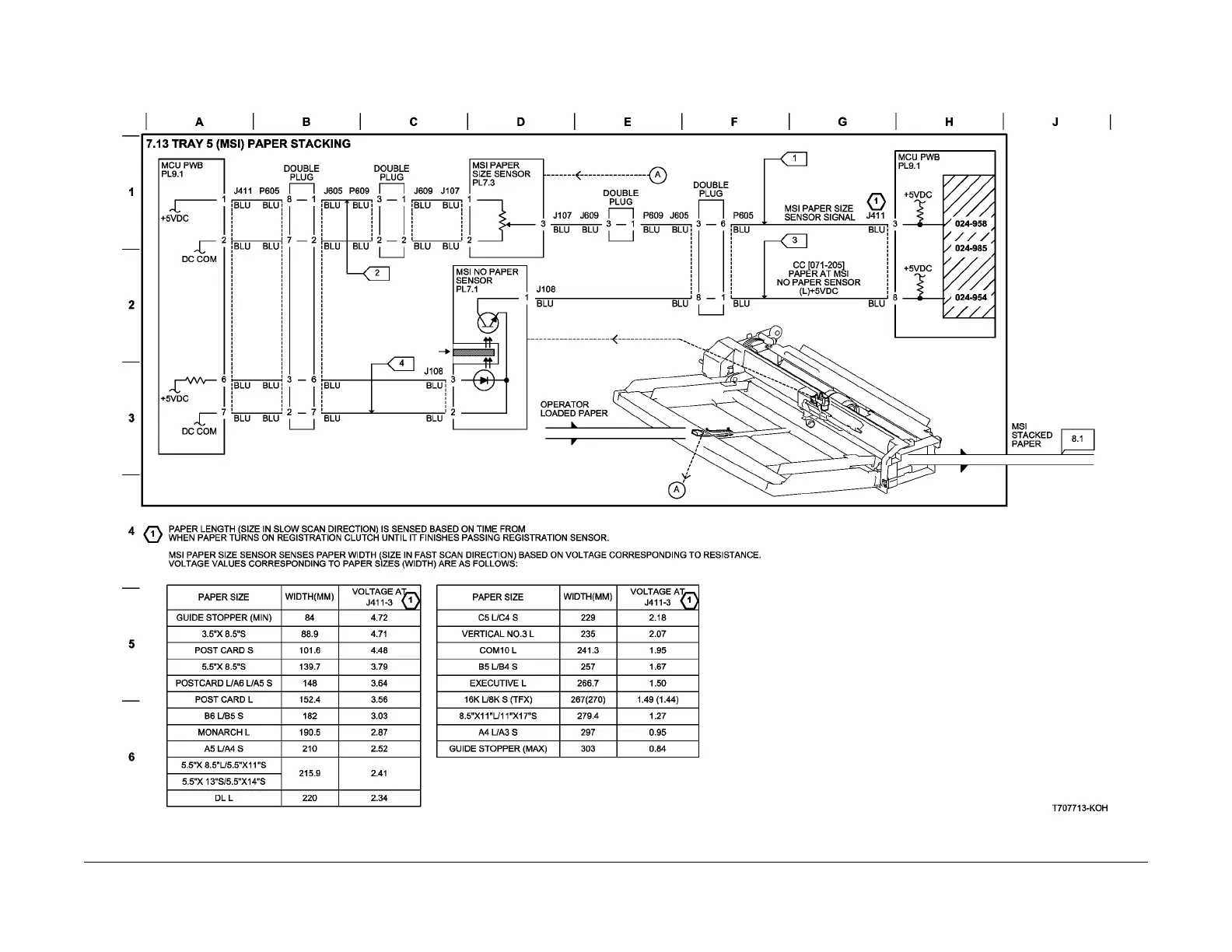

Figure 13 BSD 7.13 T
ray 5 (MSI
) Paper St
acking
1406
1408
Table of Contents
Table of Contents
3
Introduction
3
About this Manual
4
Organization
4
How to Use this Documentation
5
Warnings, Cautions, and Notes
6
Machine Safety Icons
6
Symbology and Nomenclature
6
Electrostatic Discharge (ESD) Field Service Kit
7
Symbols
7
DC Voltage Measurements in Raps
8
Voltage Measurement and Specifications
8
Logic Voltage Levels
8
Signal Nomenclature
8
Translated Warnings
9
Paper Transportation
10
Initial Actions
18
Service Call Procedures
18
Service Strategy
18
Call Flow
19
The Operator Operated the Machine Correctly
19
The UI Display Is Normal
19
Other Faults
20
Detailed Maintenance Activities (HFSI)
21
High Frequency Service Items
21
Cleaning Procedures
22
Final Actions
22
Status Indicator Raps
24
005-125 CVT Registration Sensor off JAM RAP
81
005-131 CVT Invert on JAM RAP
82
005-132 CVT Invert on JAM 2 RAP
83
005-134 CVT Invert Sensor off JAM (Inverter) RAP
84
005-135 CVT Side2 Pre-Registration on JAM RAP
85
005-136 CVT Side2 Registration on JAM RAP
86
005-139 CVT Invert Sensor off JAM RAP
87
005-145 CVT Registration Sensor off JAM (Invert) RAP
88
005-146 CVT Pre Registration Sensor off JAM RAP
89
005-147 CVT Pre Registration Sensor off JAM (Invert) RAP
90
005-194 Size Mismatch Jam on MIX-Size RAP
91
005-196 CVT Size Mismatch JAM (no MIX) RAP
92
005-197 Prohibit Combine Size JAM RAP
93
005-198 too Short Size JAM RAP
94
005-199 too Long Size JAM RAP
95
005-280 DADF EPROM Failure RAP
97
005-284 DADF Auto Paper Selection Sensor Logic Failure RAP
97
005-285 DADF Nudger Lift up Failure RAP
98
005-286 DADF Feed out Sensor Failure RAP
99
005-305 CVT Feeder Cover Interlock Open (Running) RAP
101
005-306 Tray Interlock Open RAP
101
005-309 CVT L/H Interlock Open RAP
102
005-500 Downloader Failure RAP
102
005-906 CVT Feed Sensor Static JAM RAP
103
005-907 CVT Pre-Registration Sensor Static JAM RAP
104
005-908 CVT Registration Sensor Static JAM RAP
105
005-909 DADF Lead Sensor Static Jam
105
005-910 DADF out Sensor Static Jam
106
005-911 DADF Exit 1 Sensor Static Jam
106
005-912 DADF Exit 2 Sensor Static Jam
107
005-913 CVT Invert Sensor Static JAM RAP
107
005-914 DADF APS1, 2, 3, Sensor Static Jam
108
005-915 CVT APS No1 Sensor Static JAM RAP
108
005-916 CVT APS No2 Sensor Static JAM RAP
109
005-917 CVT APS No3 Sensor Static JAM RAP
110
005-918 CVT Invert Sensor Static Jam RAP
110
005-919 DADF Tray Lift up Failure RAP
111
005-940 DADF no Original Failure RAP
111
005-941 DADF Not Enough Documents Failure RAP
112
005-942 Doc Fault Loading on DADF RAP
112
010-313 Control (Center) Thermistor Failure RAP
114
010-314 Rear Thermistor Failure RAP
115
010-318 Hot-Sagging Recovery Failure RAP
116
010-320 Heat Roll over Temperature Failure RAP
117
010-327 Fuser on Time Failure RAP
118
010-398 Fuser Lock Failure RAP
119
010-420 Fuser Near End of Life RAP
119
010-421 Fuser End of Life RAP
120
012-132 (A-Finisher) Ent Sensor on Jam
122
012-151 (A-Finisher) Compiler Exit Sensor off Jam
123
012-152 (A-Finisher) Compiler Exit Sensor on Jam
124
012-161 (A-Finisher) Set Eject Jam
125
012-211 (A-Finisher) Stacker Tray Fail
126
012-221 (A-Finisher) Front Tamper Home Sensor on Fail
128
012-223 (A-Finisher) Front Tamper Home Sensor off Fail
129
012-224 (A-Finisher) Rear Tamper Home Sensor off Fail
130
012-259 (A-Finisher) Eject Home Sensor on Fail
131
012-263 (A-Finisher) Rear Tamper Home Sensor on Fail
132
012-280 (A-Finisher) Eject Home Sensor off Fail
133
012-283 (A-Finisher) Set Clamp Home Sensor on Fail
134
012-284 (A-Finisher) Set Clamp Home Sensor off Fail
135
012-291 (A-Finisher) Stapler Fail
136
012-301 (A-Finisher) Top Cover Interlock OPEN
137
012-302 (A-Finisher) Front Cover Interlock OPEN
138
012-903 (A-Finisher) Paper Remains at Compiler Exit Sensor
138
012-935 (A-Finisher) Paper Remains at Ent Sensor
139
012-111 H-Transport Entrance Sensor off JAM a RAP
140
012-112 H-Transport Entrance Sensor on JAM a RAP
141
012-126 H-Transport Entrance. SNR off JAM B RAP
142
012-131 H-Transport Entrance Sensor on JAM B RAP
143
012-132 H-Transport Entrance Sensor on JAM RAP
144
012-151 Compile Exit Sensor off JAM RAP
145
012-152 Compile Exit Sensor on JAM RAP
146
012-161 Finisher Set Eject JAM RAP
147
012-211 Stacker Tray Failure RAP
148
012-212 Stacker Tray Upper Limit Failure RAP
149
012-213 Stacker Tray Lower Limit Failure RAP
150
012-221 Front Tamper Home Sensor on Failure RAP
151
012-223 Front Tamper Home Sensor off Failure RAP
152
012-224 Rear Tamper Home Sensor off Failure RAP
153
012-231 Puncher Home Sensor on Fail
154
012-243 Booklet Folder Home Sensor on Fail
155
012-249 Booklet Front Stapler Fail
156
012-259 Eject Home Sensor on Failure RAP
156
012-260 Eject Clamp Home Sensor on Failure RAP
157
012-263 Rear Tamper Failure RAP
158
012-265 Booklet Folder Home Sensor off Fail
159
012-268 Booklet Rear Stapler Fail
160
012-269 Booklet Sub-CPU Communications Fail
160
012-282 Eject Clamp Home Sensor off Failure RAP
161
012-283 Set Clamp Home Sensor on Failure RAP
162
012-284 Set Clamp Home Sensor off Failure RAP
163
012-291 Stapler Failure RAP
164
012-295 Staple Move Sensor on Failure RAP
165
012-296 Staple Move Sensor off Failure RAP
166
012-302 Finisher Front Cover Open RAP
168
012-303 Finisher H-Transport Cover Open RAP
169
012-334 Download Mode Failure RAP
169
012-500 Download Failure RAP
170
012-700 Punch Dust Nearly Full RAP
170
012-901 Finisher H-Transport Entrance Sensor Static JAM RAP
171
012-903 Paper Remains at Compiler Exit Sensor RAP
172
012-905 Compile Paper Sensor Static JAM RAP
173
012-923 H-Transport Entrance SNR Static JAM B RAP
174
012-935 Paper at Xport Entrance Sensor
174
012-949 Punch Waste bin Missing RAP
175
013-210 Booklet Staple Move Home SNR on Fail RAP
176
013-211 Booklet Staple Move Home SNR off Fail RAP
176
013-212 Booklet Staple Move Position SNR on Fail RAP
177
013-213 Booklet Staple Move Position SNR off Fail RAP
177
013-220 Booklet Fold Detect Fail RAP
178
013-306 Booklet Safety SW Open RAP
178
013-307 Booklet Cover Open RAP
179
016-210 Software Option (HDD Error) RAP
180
016-211 Software Option (System Memory Low) RAP
180
016-212 Software Option (Page Memory Low) RAP
181
016-213 Software Option (Printer PWB) RAP
181
016-214 Serial Number Mismatch RAP
182
016-215 Software Option RAP
182
016-216 Software Option RAP
183
016-217 Software Option RAP
183
016-218 PS KIT Not Exist for XDOD RAP
184
016-219 Software Option RAP
184
016-220 S2X Unrecoverable Error RAP
185
016-221 S2X Communication Error RAP
185
016-222 S2X Self-Diag Error RAP
186
016-223 S2X SDRAM Error RAP
186
016-224 S2X PCI Reg Error RAP
187
016-225 S2X ROM Checksum Error RAP
187
016-226 S2X IIT Connection Error RAP
188
016-227 S2X DDR Error RAP
188
016-228 S2X Image Processing Error RAP
189
016-240 S2X NVM Checksum Fail RAP
189
016-310 Ssmm Job Log Full RAP
190
016-311 Scanner Install RAP
190
016-315 IIT Interface RAP
191
016-316 Page Memory Not Detected RAP
191
016-317 Page Memory Error- Standard RAP
192
016-318 Page Memory Error- Option RAP
192
016-321 Fax Module Error RAP
193
016-322 JBA Account Full RAP
193
016-323 Scheduled Image Overwrite RAP
194
016-324 B Formatter Fatal Error RAP
194
016-330 ESS Systemmemory Fail-1 RAP
195
016-332 ESS Systemmemory Fail-3 RAP
195
016-335 ESS Programrom Fail-1 RAP
196
016-336 ESS Programrom Fail-2 RAP
196
016-337 ESS Programrom Fail-3 RAP
197
016-338 ESS Fontrom Fail-1 RAP
197
016-339 ESS Fontrom Fail-2 RAP
198
016-340 ESS Fontrom Fail-3 RAP
198
016-341 ESS Fontrom Fail-4 RAP
199
016-342 ESS RTC Failure RAP
199
016-345 ESS NV-Memory Failure RAP
200
016-347 ESS Pagememory Failure RAP
200
016-348 ESS Pagememory Failure-2 RAP
201
016-350 ESS SEEP-ROM Failure-1 RAP
201
016-351 ESS SEEP-ROM Failure-2 RAP
202
016-360 ESS UI Failure-1 RAP
202
016-362 ESS UI Failure-2 RAP
203
016-363 ESS Lyracard Failure RAP
203
016-364 ESS USB2.0 Host Failure RAP
204
016-365 ESS USB2.0 Device Failure RAP
204
016-366 ESS HDD Failure-1 RAP
205
016-367 ESS HDD Failure-2 RAP
205
016-368 ESS Torino Failure RAP
206
016-369 ESS S2X PWB Failure RAP
206
016-400 802.1X Authentication Failure RAP
207
016-401 802.1X EAP Type Not Supported RAP
207
016-402 802.1X Authentication Failure by Timing out RAP
208
016-403 802.1X Certificate Failure RAP
208
016-404 802.1X Inside Failure RAP
209
016-450 SMB Host Name Duplicated RAP
209
016-453 Dynamic DNS - Ipv6 NG RAP
210
016-454 DNS Dynamic Update RAP
210
016-455 SMTP Server Time-Out RAP
211
016-456 SMTP Time Asynchronous RAP
211
016-500 DIMM Rap
212
016-501 S2X Rap
212
016-502 ROM Write RAP
213
016-503 SMTP Redirector RAP
213
016-504 Redirector POP Server RAP
214
016-505 Redirector POP Authentication RAP
214
016-513 XPS Error RAP
215
016-514 XPS Error RAP
215
016-515 XPS Short of Memory RAP
216
016-516 XPS Printticket Description Error RAP
216
016-517 PS Booklet Illegal Color Mode Change RAP
217
016-519 Device DV - Reached Limit RAP
217
016-522 Ldap Rap
218
016-523 Ldap Rap
218
016-524 Ldap Rap
219
016-525 Ldap Rap
219
016-526 Ldap Rap
220
016-527 Ldap Rap
220
016-533 Ldap Rap
221
016-534 Ldap Rap
221
016-539 Ldap Rap
222
016-574 Host Name Error RAP
222
016-575 DNS Server Error in FTP RAP
223
016-576 Server Connection Error in FTP RAP
223
016-577 FTP Service RAP
224
016-578 Login/Password Error RAP
224
016-579 Scanning Picture Error RAP
225
016-580 File Name Acquisition Failure RAP
225
016-581 File Name Suffix Limit Error RAP
226
016-582 File Creation Failure RAP
226
016-583 Lock Folder Creation Failure RAP
227
016-584 Folder Creation Failure RAP
227
016-585 File Delete Failure RAP
228
016-586 Lock Folder Delete Failure RAP
228
016-587 Folder Delete Failure RAP
229
016-588 Data Write-In Failure RAP
229
016-589 Data Read Failure RAP
230
016-590 Data Reading Failure RAP
230
016-591 Scan Filing Policy Injustice RAP
231
016-592 NEXTNAME.DAT File Access Error RAP
231
016-593 Internal Scan Error RAP
232
016-594 TYPE Command Failure RAP
232
016-595 Port Command Failure RAP
233
016-596 CDUP Command Failure RAP
233
016-597 same Name File Exists RAP
234
016-600 Key Operator Authentication Locked RAP
234
016-601 Illegal Access Detection RAP
235
016-700 Password Is under Minimum RAP
235
016-701 ART EX Memory Expended RAP
236
016-702 out of Page Buffer RAP
236
016-703 E-Mail to Invalid Box RAP
237
016-704 Mailbox Full RAP
237
016-705 Secure Print RAP
238
016-706 Maximum Users Exceeded RAP
238
016-707 Sample Print RAP
239
016-708 HDD Full Annotation/Watermark RAP
239
016-709 ART EX Command RAP
240
016-710 Delayed Print RAP
240
016-711 E-Mail Transmission Size Limit RAP
241
016-712 Panther Capacity (I-Formatted) RAP
241
016-713 Security Box Password RAP
242
016-714 Security Box Enable RAP
242
016-716 TIFF Data Overflow RAP
243
016-717 Fax/Ifax Send RAP
243
016-718 PCL6 Memory RAP
244
016-719 out of PCL Memory RAP
244
016-720 PCL Command RAP
245
016-722 Staple Position RAP
245
016-723 Punch Position Error RAP
246
016-724 Staple Position RAP
246
016-725 B-Formatter Image RAP
247
016-727 Printer Request
247
016-728 TIFF Data Unsupported RAP
248
016-729 TIFF Data Size RAP
248
016-730 ART Command Unsupported RAP
249
016-731 TIFF Data Invalid RAP
249
016-732 Form Not Registered RAP
250
016-733 Destination Address RAP
250
016-734 Transmission Report RAP
251
016-735 Updating Job Template RAP
251
016-736 Remote Directory Lock RAP
252
016-737 Remote Directory Removal RAP
252
016-738 PS Booklet Output Size Illegal RAP
253
016-739 Document and Output Mismatch RAP
253
016-740 Output Tray Incorrect RAP
254
016-741 Cannot Shift to Download Mode Failure RAP
254
016-742 Download Data Productid Error RAP
255
016-743 Download Data Model Mismatch RAP
255
016-744 Download Data Checksum Error RAP
256
016-745 XPJL Soft Failure RAP
256
016-746 Unsupported PDF File RAP
257
016-747 Insufficient Memory
257
016-748 HDD Full RAP
258
016-749 Post Script Font RAP
258
016-750 Print Job RAP
259
016-751 Pdf Rap
259
016-752 PDF Memory Limit RAP
260
016-753 PDF Password Mismatch RAP
260
016-755 PDF Print Prohibited RAP
261
016-756 Auditron - Prohibit Service RAP
261
016-757 Auditron - Invalid User RAP
262
016-758 Auditron - Disabled Function RAP
262
016-759 Auditron - Reached Limit RAP
263
016-760 Postscript Decompose RAP
263
016-761 FIFO Empty RAP
264
016-762 Print Language RAP
264
016-763 POP Server Is Not Found RAP
265
016-764 SMTP Server Connection RAP
265
016-765 SMTP Server HDD Full RAP
266
016-766 SMTP Server File System RAP
266
016-767 Invalid E-Mail Address RAP
267
016-768 Invalid Sender Address RAP
267
016-769 SMTP Server Unsupported DSN RAP
268
016-770 FAX Function Cancelled RAP
268
016-771 JBIG Parameter RAP
269
016-772 JBIG Parameter RAP
269
016-773 JBIG Parameter RAP
270
016-774 JBIG Parameter RAP
270
016-775 JBIG Parameter RAP
271
016-777 JBIG Parameter RAP
272
016-778 JBIG Parameter RAP
272
016-779 Scanned Image Conversion Error RAP
273
016-780 Attached Document TIFF RAP
273
016-781 Scan Server Connect Error RAP
274
016-782 Scan Server Login Error RAP
275
016-783 Invalid Server Path RAP
276
016-784 Server Write Error RAP
277
016-785 Server HD Full RAP
277
016-786 HD Full-Scan Write Error RAP
278
016-787 Invalid Server IP ADD RAP
278
016-788 Retrieve to Browser RAP
279
016-789 HD Full - Job Memory RAP
279
016-791 File Retrieve RAP
280
016-792 Specified Job RAP
280
016-793 MF I/O HD Full RAP
281
016-799 PLW Print Instruction RAP
281
016-981 HDD Access Error RAP
282
016-982 HDD Access Error 2 RAP
282
016-983 Log Image Storage Area on Disk Full RAP
283
016-985 Data Size Overflow (Scan to E-Mail) RAP
283
018-400 IPSEC Error (Configuration Mismatch) RAP
284
018-500 CA Message Receiver Boot Error (S_Cert Lost) RAP
284
018-501 CA Server Connection Error RAP
285
018-502 Login Failure in SMB RAP
285
018-503 CA Message Receiver Timeout RAP
286
018-504 CA Sessionid Mismatch RAP
286
018-505 SMB-DOS Protocol Error RAP
287
018-506 CA Fieldid Mismatch RAP
287
018-507 CA Credential Error RAP
288
018-508 CA Server Fatal Error RAP
288
018-509 Template Parameter Conflict RAP
289
018-510 Host Name Solution Error in Bmlinks RAP
290
018-511 DNS Server Un-Sets up in Bmlinks RAP
290
018-512 Service Connect Error in Bmlinks RAP
291
018-513 Bmlinks Service Not Found RAP
291
018-514 Bmlinks Access-Right-Violation RAP
292
018-515 Bmlinks Storage-Access-Error RAP
292
018-516 Bmlinks Unsupported-Attribute RAP
293
018-517 Bmlinks Storage-Full RAP
293
018-518 Bmlinks Operation-Not-Available RAP
294
018-519 Bmlinks Unknown-Error RAP
294
018-520 Internal Error in Bmlinks Scan RAP
295
018-521 Request Send Failure in Bmlinks RAP
295
018-522 Response Receive Failure in Bmlinks RAP
296
018-523 Image Send Failure in Bmlinks RAP
296
018-524 Invalid Device Network Setting RAP
297
018-525 HDD Full or HDD Access Error RAP
297
018-526 Rejected to be Refresh RAP
298
018-527 JT Monitor Internal Error RAP
298
018-528 Soap Request Error RAP
299
018-529 Duplicate Scan Request RAP
299
018-530 Authentication Error RAP
300
018-531 Failed to Create a New Job RAP
300
018-532 too Many Jobs to Create a New Job RAP
301
018-543 Shared Name Error in SMB Server RAP
301
018-547 Number Restriction over of SMB Scan Users RAP
302
018-596 LDAP Protocol Error 596 RAP
302
018-701 Ldap Rap
303
018-702 Ldap Rap
303
018-703 Ldap Rap
304
018-704 Ldap Rap
304
018-705 Ldap Rap
305
018-706 Ldap Rap
305
018-707 Ldap Rap
306
018-708 Ldap Rap
306
018-710 Ldap Rap
307
018-711 Ldap Rap
307
018-712 Ldap Rap
308
018-713 Ldap Rap
308
018-714 Ldap Rap
309
018-716 Ldap Rap
309
018-717 Ldap Rap
310
018-718 Ldap Rap
310
018-719 Ldap Rap
311
018-720 Ldap Rap
311
018-721 Ldap Rap
312
018-732 Ldap Rap
312
018-733 Ldap Rap
313
018-734 Ldap Rap
313
018-735 Ldap Rap
314
018-736 Ldap Rap
314
018-748 Ldap Rap
315
018-749 Ldap Rap
315
018-750 Ldap Rap
316
018-751 Ldap Rap
316
018-752 Ldap Rap
317
018-753 Ldap Rap
317
018-754 Ldap Rap
318
018-764 Ldap Rap
318
018-765 Ldap Rap
319
018-766 Ldap Rap
319
018-767 Ldap Rap
320
018-768 Ldap Rap
320
018-769 Ldap Rap
321
018-770 Ldap Rap
321
018-771 Ldap Rap
322
018-780 Ldap Rap
322
018-781 Ldap Rap
323
018-782 Ldap Rap
323
018-783 Ldap Rap
324
018-784 Ldap Rap
324
018-785 Ldap Rap
325
018-786 Ldap Rap
325
018-787 Ldap Rap
326
018-788 Ldap Rap
326
018-789 Ldap Rap
327
018-790 Ldap Rap
327
018-791 Ldap Rap
328
018-792 Ldap Rap
328
018-793 Ldap Rap
329
018-794 Ldap Rap
329
018-795 Ldap Rap
330
018-796 Ldap Rap
330
018-797 Ldap Rap
331
021-947 Subtractive Accessory Disable (Scan) RAP
332
021-948 Subtractive Accessory Disable (Print) RAP
332
021-949 Subtractive Accessory Disable RAP
333
024-916 (A-Finisher) MIX Stack Full
334
024-917 (A-Finisher) Stacker Tray Staple Set over Count
335
024-928 (A-Finisher) Scratch Sheet Compile
337
024-930 (A-Finisher) Stacker Tray Full Stack
337
024-976 (A-Finisher) Staple NG
339
024-977 (A-Finisher) Stapler Feed Ready Fail
340
024-979 (A-Finisher) Stapler Near Empty
340
024-980 (A-Finisher) Stacker Tray Full Stack
341
024-982 (A-Finisher) Stacker Lower Safety Warning
342
024-340 IOT-ESS Communication Failure 1 RAP
344
024-341 IOT-ESS Communication Failure 2 RAP
344
024-342 IOT-ESS Communication Failure 3 RAP
345
024-343 IOT-ESS Communication Failure 4 RAP
345
024-345 IOT-ESS Communication Failure 5 RAP
346
024-346 IOT-ESS Communication Failure 6 RAP
346
024-347 IOT-ESS Communication Failure 7 RAP
347
024-348 IOT-ESS Communication Failure 8 RAP
347
024-349 IOT-ESS Communication Failure 9 RAP
348
024-350 IOT-ESS Communication Failure 10 RAP
348
024-351 IOT-ESS Communication Failure 11 RAP
349
024-354 IOT-ESS Communication Failure 14 RAP
349
024-356 IOT-ESS Communication Failure 16 RAP
350
024-362 Page Sync Illegal Start RAP
350
024-363 Page Sync Illegal Stop RAP
351
024-364 DMA Transfer RAP
351
024-367 Decompress Other Failure RAP
352
024-368 PCI Error RAP
352
024-370 Marker Code Detection Failure RAP
353
024-371 IOT-ESS Communication Failure 21 RAP
353
024-372 IOT-ESS Communication Failure 22 RAP
354
024-373 IOT-ESS Communication Failure 23 RAP
354
024-375 IOT-ESS Communication Failure 24 RAP
355
024-600 Billing Master Counter RAP
355
024-601 Billing Backup Counter 1 RAP
356
024-602 Billing Backup Counter 2 RAP
356
024-603 Software Key Master Counter RAP
357
024-604 Software Key Backup Counter 1 RAP
357
024-605 Software Key Backup Counter 2 RAP
358
024-700 Shortage Memory Capacity, or no Hard Disk RAP
358
024-742 Output Paper for Booklet, over Counts RAP
359
024-746 Print Request Failure-Paper RAP
359
024-747 Print Instruction Failure RAP
360
024-748 Bates Numbering Digit over RAP
360
024-775 Output Paper for Booklet, over Counts 2 RAP
361
024-910 Tray 1 Size Mismatch RAP
361
024-911 Tray 2 Size Mismatch RAP
362
024-912 Tray 3 Size Mismatch RAP
363
024-913 Tray 4 Size Mismatch RAP
364
024-914 Tray 6 Size Mismatch RAP
365
024-915 Tray 7 Size Mismatch RAP
366
024-916 MIX Full Stack RAP
367
024-917 Stacker Tray Staple Set over Count RAP
368
024-919 Face up Tray Close RAP
369
024-920 Face down Tray 1 Paper Full RAP
369
024-921 Face up Tray 1 Paper Full
370
024-922 Face down Tray 2 Paper Full
370
024-926 Punch Dust Box Miss Set
371
024-928 Scratch Sheet Compile
371
024-930 Stacker Tray Full (Large Size Full)
372
024-934 Paper Kind Mismatch
372
024-939 OHP Kind Mismatch
373
024-946 Tray 1 out of Place RAP
373
024-947 Tray 2 out of Place RAP
374
024-948 Tray 3 out of Place RAP
374
024-949 Tray 4 out of Place RAP
375
024-950 Tray 1 Empty RAP
375
024-951 Tray 2 Empty RAP
376
024-952 Tray 3 Empty RAP
376
024-953 Tray 4 Empty RAP
377
024-954 MPT Empty RAP
377
024-955 Tray 6 Empty
378
024-958 MPT Size Failure RAP
378
024-959 Tray 1 Size Mismatch RAP
379
024-960 Tray 2 Size Mismatch RAP
379
024-961 Tray 3 Size Mismatch RAP
380
024-962 Tray 4 Size Mismatch RAP
380
024-965 ATS/APS no Paper (IOT Detect) RAP
381
024-966 ATS/APS no Destination Error RAP
382
024-967 Different Width MIX Paper Detect (Stapler Job) RAP
382
024-968 Stapler / Punch Batting
383
024-969 Different Width MIX Punch
383
024-970 Tray 6 out of Place
384
024-972 Tray 6 Size Mismatch
384
024-975 Copy Booklet Sheets Counts over
385
024-976 Finisher Staple Status Failed RAP
385
024-977 Stapler Feed Ready Failure RAP
386
024-978 Booklet Stapler Fault
386
024-979 Stapler Near Empty RAP
387
024-980 Finisher Stacker Tray Full RAP
387
024-981 Finisher Top Tray Full
388
024-982 Stacker Lower Safety Warning RAP
389
024-985 MPT Feed Failure RAP
390
024-989 Booklet Low Staple
390
024-928 Scratch Sheet Compile RAP
393
024-978 Booklet Front/Rear Stapler Fail
395
027-400 Net off Line RAP
402
027-442 Duplicate IP Address RAP
402
027-443 DNS Renewal Failure of Dynamic RAP
403
027-444 Duplicate IP Address RAP
403
027-445 Illegal IP Address RAP
404
027-446 Duplicate IP Address RAP
404
027-447 Duplicate IP Address RAP
405
027-452 Duplicate IP Address RAP
405
027-500 SMTP Server Mail I/O RAP
406
027-501 POP Server RAP
406
027-502 POP Authentication RAP
407
027-503 POP Server Communication Timeout RAP
407
027-504 Invalid Response Reception from SMTP Server RAP
408
027-513 SMB Scan Client RAP
408
027-514 Host Name Solution Error RAP
409
027-515 DNS Server Error in SMB RAP
409
027-516 Server Connection Error in SMB RAP
410
027-518 Login/Password Error RAP
410
027-519 Scanning Picture Error RAP
411
027-520 File Name Acquisition Failure RAP
411
027-521 File Name Suffix Limit Error RAP
412
027-522 File Creation Failure RAP
412
027-523 Lock Folder Creation Failure RAP
413
027-524 Folder Creation Failure RAP
413
027-525 File Delete Failure RAP
414
027-526 Lock Folder Delete Failure RAP
414
027-527 Folder Delete Failure RAP
415
027-528 Data Write-In Failure RAP
415
027-529 Data Read Failure RAP
416
027-530 Data Reading Failure RAP
416
027-531 Scan Filing Policy Injustice RAP
417
027-532 NEXTNAME.DAT File Access Error RAP
417
027-533 Internal Scan Error RAP
418
027-543 Server Name Specification Error RAP
418
027-547 SMB Protocol Error 4-007 RAP
419
027-548 SMB Protocol Error 4-008 RAP
419
027-549 SMB Protocol Error 4-009 RAP
420
027-564 SMB Protocol Error 4-024 RAP
420
027-565 SMB Protocol Error 4-025 RAP
421
027-566 SMB Protocol Error 4-026 RAP
421
027-569 SMB (TCP/IP) Is Not Started RAP
422
027-572 SMB Protocol Error 4-032 RAP
422
027-573 SMB Protocol Error 4-033 RAP
423
027-574 SMB Protocol Error 4-034 RAP
423
027-576 SMB Protocol Error 4-036 RAP
424
027-578 SMB Protocol Error 4-038 RAP
424
027-584 SMB Protocol Error 4-044 RAP
425
027-585 SMB Protocol Error 4-045 RAP
425
027-586 SMB Protocol Error 4-046 RAP
426
027-587 SMB Protocol Error 4-047 RAP
426
027-588 SMB Protocol Error 4-048 RAP
427
027-589 SMB Protocol Error 4-049 RAP
427
027-590 SMB Protocol Error 4-050 RAP
428
027-591 SMB Protocol Error 4-051 RAP
428
027-599 SMB Protocol Error 4-Other Codes RAP
429
027-702 Certificate for Recipients, was Not Found RAP
429
027-703 Certificate for Recipients, Has Expired RAP
430
027-704 Certificate for Recipients, was Untrusted RAP
430
027-705 Certificate for Recipients, was Revoked RAP
431
027-706 Certificate RAP
431
027-707 Certificate Expired RAP
432
027-708 Certificate Valid RAP
432
027-709 Certificate Revoked RAP
433
027-710 Invalid S/MIME Mail RAP
433
027-711 S/MIME Mail Certificate RAP
434
027-712 S/MIME Mail Certificate RAP
434
027-713 S/MIME Mail Altered RAP
435
027-714 S/MIME Mail Invalid RAP
435
027-715 S/MIME Mail Certificate Registration RAP
436
027-716 Email Signature RAP
436
027-730 SMTP Mail Division Error RAP
437
027-737 Template Server Read RAP
437
027-739 Invalid Template Server Path RAP
438
027-740 Template Server Login RAP
438
027-741 Template Server Connect RAP
439
027-742 HDD File System RAP
439
027-743 Template Server Install RAP
440
027-744 Template Address RAP
440
027-745 Template Address Server RAP
441
027-750 Fax Document Inhibited RAP
441
027-751 Job Template Analysis RAP
442
027-752 Required User Entry Not Entered RAP
442
027-753 Job Flow Service Disabled RAP
443
027-754 Job Flow Service File Signature Mismatch RAP
443
027-760 XJT Command Fail RAP
444
027-761 Web Print Time out RAP
444
027-762 Illegal Web Print Job Ticket RAP
445
027-772 SMTP Server Error (HELO) RAP
445
027-773 SMTP Server Communication Timeout RAP
446
027-774 Address Inaccurate Character RAP
446
027-775 too Many SMTP Address RAP
447
027-776 SMTP Server Error (EHLO) RAP
447
027-777 SMTP Server Un-Supports SMTP-AUTH RAP
448
027-778 no Mode Specified by SMTP-AUTH RAP
448
027-779 It Attestation-Fails by SMTP-AUTH RAP
449
027-796 E-Mail Not Printed RAP
449
027-797 Invalid Output Destination RAP
450
033-363 Fax Control RAP
452
033-710 Fax Control RAP
452
033-712 Fax Control RAP
453
033-713 Fax Control RAP
453
033-715 Fax Control RAP
454
033-716 Fax Control RAP
454
033-717 Fax Control RAP
455
033-718 Fax Control RAP
455
033-719 Fax Control RAP
456
033-721 Fax Control RAP
456
033-722 Fax Control RAP
457
033-724 Fax Control RAP
457
033-725 Fax Control RAP
458
033-726 Fax Control RAP
458
033-727 Fax Control RAP
459
033-728 Fax Control RAP
459
033-731 Fax Control RAP
460
033-733 Fax Control RAP
460
033-734 Fax Control RAP
461
033-735 Fax Control RAP
461
033-736 Fax Control RAP
462
033-737 Fax Control RAP
462
033-738 Fax Control RAP
463
033-740 Fax Control RAP
463
033-741 Fax Control RAP
464
033-742 Fax Control RAP
464
033-743 Fax Control RAP
465
033-744 Fax Control RAP
465
033-745 Fax Control RAP
466
033-746 Fax Control RAP
466
033-747 Fax Control RAP
467
033-749 Fax Control RAP
467
033-750 Fax Control RAP
468
033-751 Activity Report Suspended RAP
468
033-755 Fax Printing Is Canceled Fax RAP
469
034-211 Fax Communication RAP
470
034-212 Fax Communication RAP
470
034-500 Fax Communication RAP
471
034-501 Fax Communication RAP
471
034-505 Fax Communication RAP
472
034-506 Fax Communication RAP
472
034-507 Fax Communication RAP
473
034-508 Fax Communication RAP
473
034-509 Fax Communication RAP
474
034-510 Fax Communication RAP
474
034-511 Fax Communication RAP
475
034-512 Fax Communication RAP
475
034-513 Fax Communication RAP
476
034-514 Fax Communication RAP
476
034-515 Fax Communication RAP
477
034-519 Fax Communication RAP
477
034-520 Fax Communication RAP
478
034-521 Internal I/F Error RAP
478
034-522 Fax Communication RAP
479
034-523 Fax Communication RAP
479
034-527 Dial Control Error RAP
480
034-528 Fax Communication RAP
480
034-529 Fax Communication RAP
481
034-530 Fax Communication RAP
481
034-550 Write to Faxcard-ROM Error Detection RAP
482
034-700 Gcplock-G3Dicepbusy-Codechang RAP
482
034-701 Software Reset RAP
483
034-789 Fax Communication RAP
483
034-790 Fax Communication Channel 0 RAP
484
034-791 Fax Communication Channel 1 RAP
484
034-792 Fax Communication Channel 2 RAP
485
034-793 Fax Communication Channel 3 RAP
485
034-794 Fax Communication Channel 4 RAP
486
034-795 Fax Communication Channel 5 RAP
486
034-796 Fax Communication Channel RAP
487
034-797 Communication Parameter Error RAP
487
034-798 Data Parameter Error RAP
488
034-799 Auto Dial Without Dial Data RAP
488
035-550 Write to Faxg3-ROM Error Detection RAP
490
035-700 Fax Protocol RAP
490
035-701 Fax Protocol RAP
491
035-702 Fax Protocol RAP
491
035-703 Fax Protocol RAP
492
035-704 Fax Protocol RAP
492
035-705 Fax Protocol RAP
493
035-706 Fax Protocol RAP
493
035-707 Fax Protocol RAP
494
035-708 Fax Protocol RAP
494
035-709 Fax Protocol RAP
495
035-710 Fax Protocol RAP
495
035-711 Fax Protocol RAP
496
035-712 Fax Protocol RAP
496
035-713 Fax Protocol RAP
497
035-714 Fax Protocol RAP
497
035-715 Fax Protocol RAP
498
035-716 Fax Protocol RAP
498
035-717 Fax Protocol RAP
499
035-718 Fax Protocol RAP
499
035-719 Fax Protocol RAP
500
035-720 Fax Protocol RAP
500
035-721 Fax Protocol RAP
501
035-722 Fax Protocol RAP
501
035-723 Fax Protocol RAP
502
035-724 Fax Protocol RAP
502
035-725 Fax Protocol RAP
503
035-726 Fax Protocol RAP
503
035-727 Fax Protocol RAP
504
035-728 Fax Protocol RAP
504
035-729 Fax Protocol RAP
505
035-730 Fax Protocol RAP
505
035-731 Fax Protocol RAP
506
035-732 Fax Protocol RAP
506
035-733 Fax Protocol RAP
507
035-734 Fax Protocol RAP
507
035-735 Fax Protocol RAP
508
035-736 Fax Protocol RAP
508
035-737 Fax Protocol RAP
509
035-738 Fax Protocol RAP
509
035-739 Fax Protocol RAP
510
035-740 Fax Protocol RAP
510
035-741 Fax Protocol RAP
511
035-742 Fax Protocol RAP
511
035-743 Fax Protocol RAP
512
035-744 Fax Protocol RAP
512
035-745 Fax Protocol RAP
513
035-746 Fax Protocol RAP
513
035-747 Fax Protocol RAP
514
035-748 Fax Protocol RAP
514
035-749 Fax Protocol RAP
515
035-750 Fax Protocol RAP
515
035-751 Fax Protocol RAP
516
035-752 Fax Protocol RAP
516
035-753 Fax Memory Full RAP
517
035-754 File Management Memory Full RAP
517
035-755 File Add Page Error RAP
518
035-756 Cannot Add Page RAP
518
035-757 no Receive Page RAP
519
035-758 no Specified File or Page RAP
519
035-759 no Specified Job RAP
520
035-760 no Specified Job RAP
520
035-761 File Processing Error RAP
521
041-340 MCU PWB Data RAP
522
041-500
522
IIOT Memory (DDR DIMM) Fault
522
041-501
523
IOT NVM Memory (DDR DIMM) Fault
523
042-323 Drum K Motor Drive Failure RAP
524
042-325 Main Motor Failure RAP
524
047-211 Oct 1 Rap
526
047-212 Oct 2 Rap
527
047-213 Different Finisher Detected RAP
528
047-214 MCU Duplex Module RAP
528
047-215 MCU Exit Communication Error RAP
529
047-216 MCU Finisher Communication RAP
529
047-217 MCU HCF Communication RAP
530
061-315 Start of Scan RAP
532
061-321 ROS Motor RAP
532
061-333 ROS Fan Defect RAP
533
ROS Fan Rotation Failure
533
062-211 Iit/Ips Pwb Eeprom Rap
534
062-277 IIT/IPS PWB DADF PWB Communication RAP
534
062-300 Platen Interlock Open RAP
535
062-310 IIT/IPS PWB Controller Communication RAP
535
062-311 IIT/IPS Software RAP
536
062-345 IIT/IPS Subsystem RAP
536
062-357 CCD Fan Failure RAP
537
062-360 Carriage Position RAP
537
062-371 Lamp Illumination RAP
538
062-380 Platen AGC CH1 RAP
539
062-386 Platen AOC CH1 RAP
539
062-389 Carriage over Run RAP
540
062-392 IIT/IPS PWB Memory Failure-1 RAP
540
062-393 Iit/Ips Pwb Ram Rap
541
062-500 Iiss Rom Rap
541
062-790 Prohibited Document Detection RAP
542
071-105 Tray 1 Registration Sensor on JAM RAP
544
071-210 Tray 1 Lift up Failure RAP
545
071-211 Tray 1 Broken RAP
546
071-940 Tray 1 Lift up RAP
546
072-101 Tray 2 Misfeed JAM RAP
548
072-105 Tray 2 Registration Sensor on JAM RAP
549
072-210 Tray 2 Lift up Failure RAP
550
071-940 Tray 2 Lift up RAP
551
072-211 Tray 2 Broken RAP
551
073-101 Tray 3 Miss Feed JAM RAP
552
073-102 Tray 2 Feed out Sensor on JAM (Tray 3 Feed) RAP
553
073-105 Tray 3 Registration Sensor on JAM RAP
554
073-210 Tray 3 Lift up Failure RAP
555
071-940 Tray 3 Lift up RAP
556
073-211 Tray 3 Broken RAP
556
074-101 Tray 4 Miss Feed JAM RAP
558
074-102 Tray 2 Feed out Sensor on JAM (Tray 4 Feed) RAP
559
074-103 Tray 3 Feed out Sensor on JAM (Tray 4 Feed) RAP
560
074-105 Tray 4 Registration Sensor on JAM RAP
561
074-210 Tray 4 Lift up Failure RAP
562
071-940 Tray 4 Lift up RAP
563
074-211 Tray 4 Broken RAP
563
075-135 MPT Registration Sensor on JAM RAP
564
077-101 Registration Sensor off JAM RAP
566
077-103 Fuser Exit Sensor off JAM RAP
567
077-104 Exit Sensor off (too Short) JAM RAP
568
077-106 Fuser Exit Sensor on JAM RAP
569
077-109 IOT Exit Sensor on JAM Straight RAP
570
077-113 IOT Exit Sensor off JAM Straight RAP
571
077-114 Exit 2 Sensor Static JAM RAP
571
077-129 Registration Sensor on JAM (Duplex Feed/Stop Case) RAP
572
077-130 Duplex out Sensor on JAM RAP
573
077-131 Duplex Wait Sensor on JAM RAP
574
077-211 Detected Different Type Tray Module RAP
575
077-300 IOT Front Cover Open RAP
575
077-301 Left Hand Interlock Open RAP
576
077-305 Tray Module Left Hand Cover Interlock Open RAP
577
077-307 DUP Cover Open RAP
577
077-308 Left Hand HIGH Interlock Open RAP
578
077-309 Left Hand Low Interlock Open RAP
578
077-310 Controller Failed to Send Image RAP
579
077-329 Main Motor Stop Error RAP
579
078-101 HCF to Feed out Sensor Fault RAP
580
078-102 HCF to Registration Sensor Fault RAP
580
078-104 HCF Feed out Sensor Fault RAP
581
078-210 HCF to Tray 1 Lift RAP
581
078-212 NVM Read/Write Failure RAP
582
078-300 HCF Top Cover Interlock Open RAP
583
078-301 HCF Docking Interlock Open RAP
583
078-500 Write to HCF-ROM Error Detection (During DLD Method) RAP
584
078-900 HCF Feed out Sensor Static Jam RAP
584
078-940 HCF Paper Misfeed RAP
585
078-941 HCF Paper Tray Size Mismatch RAP
585
078-945 TTM Tray 3 Lift RAP
586
078-946 TTM Tray 4 Lift RAP
587
081-799 Registered Destination RAP
588
091-402 Drum Life over RAP
590
091-441 Drum Life Near End of Life RAP
590
091-910 Waste Toner Bottle Position RAP
591
091-911 Waste Toner Full RAP
591
091-912 Xerographics Drum Module Installation RAP
592
091-913 Drum Cartridge End of Life RAP
592
091-914 Xero CRUM Comm RAP
593
091-915 Xero CRUM Data RAP
593
091-916 Xero CRUM Match RAP
594
092-661 Temperature Sensor RAP
596
092-662 Humidity Sensor RAP
596
093-400 Black Toner Near Empty
598
093-406 Black Toner Pre-Near Empty
598
093-912 Black Toner Empty
599
093-924 Toner K Crum Communication Failure
599
093-925 Toner K Crum Data Broken Failure
600
093-926 Toner K Crum Data Mismatch Failure
600
094-417 BTR Unit Pre Warning RAP
602
094-420 BTR Unit Warning RAP
602
102-356 Controller Software RAP
604
102-380 UI Control RAP
604
102-381 UI Data Link RAP
605
102-382 Application Layer Command RAP
605
112-700 Punch Dust Near Full RAP
606
116-210 Mediareader Fatal Error RAP
608
116-212 Medialib SW Logic Fail RAP
608
116-220 Downloader Initialize Fail RAP.
609
116-310 ESS Font DIMM #2 RAP
609
116-311 ESS Font DIMM #3 RAP
610
116-312 HDD Encrypt Key RAP
610
116-313 HDD Encrypt Setup RAP
611
116-314 Ethernet Address RAP
611
116-315 ESS DDR DIMM #1 R/W Check RAP
612
116-316 ESS DDR DIMM #2 R/W Check RAP
612
116-317 ESS ROM DIMM #1 Check RAP
613
116-318 ESS ROM DIMM #2 Check RAP
613
116-319 Controller UI Configuration
614
116-321 System Software RAP
614
116-322 Webdav S/W Fail RAP
615
116-323 ESS NVRAM R/W Check RAP
615
116-324 System Controller RAP
616
116-325 ESS Fan RAP
616
116-328 Controller Cache RAP
617
116-329 Serial Software RAP
617
116-330 HDD File System RAP
618
116-331 Invalid Log Information RAP
618
116-332 Ess Rom Rap
619
116-333 Localtalk Software RAP
619
116-334 ESS NVRAM Data Compare Fail RAP
620
116-335 Hdd Rap
620
116-336 HDD Access RAP
621
116-337 SNTP Software RAP
621
116-338 Jba Rap
622
116-340 Memory RAP
622
116-341 ROM Version RAP
623
116-342 Network Manager RAP
623
116-343 Main PWB IC RAP
624
116-346 Formatter RAP
624
116-348 Redirector RAP
625
116-349 Sif Rap
625
116-350 Appletalk Software RAP
626
116-351 Ether Talk Software RAP
626
116-352 Netware Software RAP
627
116-353 HDD Mechanical RAP
627
116-354 HDD Product RAP
628
116-355 Agent Software RAP
628
116-356 HDD Format RAP
629
116-357 Postscript RAP
629
116-358 Salutation Software RAP
630
116-360 SMB Software RAP
630
116-361 Spool HDD RAP
631
116-362 SSDP Software RAP
631
116-363 Print Service Software RAP
632
116-364 Timer RAP
632
116-365 Spool RAP
633
116-366 Software Report RAP
633
116-367 Parallel Software RAP
634
116-368 Dump Print RAP
634
116-370 Xjcl Rap
635
116-371 PCL Decomposer Software RAP
635
116-372 Formatter RAP
636
116-373 Dynamic DNS Software RAP
636
116-374 Auto Switch RAP
637
116-375 Formatter RAP
637
116-376 Port 9100 Software RAP
638
116-377 Video DMA RAP
638
116-378 Controller Software RAP
639
116-379 Controller Software RAP
639
116-380 ESS Font ROM DIMM #1 RAP
640
116-381 ABL Initialize RAP
640
116-382 ABL Initialize RAP
641
116-385 IDC Software RAP
641
116-388 MCC Rap
642
116-389 RAM Install RAP
642
116-390 ROM NVM Mismatch RAP
643
116-391 Country Code RAP
643
116-395 USB Software RAP
644
116-399 Initialization RAP
644
116-701 Memory Duplex RAP
645
116-702 Substitute Font RAP
645
116-703 Postscript Language RAP
646
116-710 HP-GL/2 Memory Overflow RAP
646
116-713 HDD Job Full RAP
647
116-714 HP-GL/2 Command RAP
647
116-720 PCL Memory RAP
648
116-738 Overlay Size Orientation RAP
648
116-739 Form/Logo Capacity RAP
649
116-740 Arithmetic RAP
649
116-741 Maximum Forms Data Register RAP
650
116-742 Max Logo Registered RAP
650
116-743 Form/Logo Size Overflow RAP
651
116-746 Selected Form RAP
651
116-747 Invalid Page Margin RAP
652
116-748 Page Image Data RAP
652
116-749 Postscript Font RAP
653
116-750 Banner Sheet Cancelled RAP
653
116-752 Print Job Ticket Description Warning RAP
654
116-771 Invalid JBIG Parameter DL Fixed RAP
654
116-772 Invalid JBIG Parameter D Fixed RAP
655
116-773 Invalid JBIG Parameter P Fixed RAP
655
116-774 Invalid JBIG Parameter YD Fixed RAP
656
116-775 Invalid JBIG Parameter L0 Fixed RAP
656
116-776 Invalid JBIG Parameter MX Fixed RAP
657
116-777 Invalid JBIG Parameter MY Fixed RAP
657
116-778 Invalid JBIG Par Vlength Fixed RAP
658
116-780 Attached Document RAP
658
116-790 Stapling Canceled RAP (A-Finisher)
659
116-790 Stapling Canceled RAP (SB-Finisher)
659
121-314 Customize User Prompts Fail RAP
660
123-207 Communication Manager Target RAP
662
123-209 Controller UI Communication RAP
662
123-310 Send Queue RAP
663
123-311 Receive Queue RAP
663
123-317 Receive Message Queue RAP
664
123-318 Receive Finish Queue RAP
664
123-320 NVM Initialized for FCW Composition RAP
665
123-322 UI Target RAP
665
123-323 UI Address RAP
666
123-325 Object Creation RAP
666
123-326 Memory Overflow RAP
667
123-327 Button Overflow RAP
667
123-328 UI Internal Range RAP
668
123-329 UI Coordinates RAP
668
123-332 Interface Parameter RAP
669
123-333 Interface Communication RAP
669
123-337 Frame Data RAP
670
123-341 Event Queue RAP
670
123-342 Event Queue RAP
671
123-343 Invalid Class RAP
671
123-344 Invalid Type RAP
672
123-345 Timer Queue Full RAP
672
123-346 Invalid Timer Number RAP
673
123-369 Interface Value RAP
673
123-370 Interface Length RAP
674
123-371 Interface Parameter RAP
674
123-372 Interface Sequence RAP
675
123-373 Channel RAP
675
123-374 User Job ID RAP
676
123-375 Internal Resource RAP
676
123-376 Internal Memory RAP
677
123-377 UI Timer RAP
677
123-378 Interface Format RAP
678
123-379 Dispatch RAP
678
123-380 Copy Interface RAP
679
123-381 Fax Interface RAP
679
123-382 Scanner Interface RAP
680
123-383 Report Interface RAP
680
123-384 Server Access RAP
681
123-385 Service Object RAP
681
123-386 Service Object RAP
682
123-387 Service Object RAP
682
123-388 Attribute RAP
683
123-389 UI Comparator RAP
683
123-390 Job Parameter RAP
684
123-391 Job Parameter RAP
684
123-392 Auditron RAP
685
123-394 File Access RAP
685
123-395 Ui Nvm Rap
686
123-396 UI Software RAP
686
123-397 UI Manager RAP
687
123-398 Release Queue RAP
687
123-399 UI Internal RAP
688
123-400 Internal Interface RAP
688
124-310 Product Designation RAP
690
124-311 Product Serial Number RAP
690
124-312 Machine Codes Mismatch RAP
691
124-313 Serial Number RAP
691
124-314 IOT Speed RAP
692
124-315 Serial Number Mismatch RAP
692
124-316 Product Mode RAP
693
124-317 All Product Mode RAP
693
124-318 Product Type Software Key RAP
694
124-319 All Product Types Software Key RAP
694
124-320 Eprom Rap
695
124-321 Backup SRAM RAP
695
124-322 Software Key RAP
696
124-323 Software Key Registration RAP
696
124-324 All Billings Mismatch RAP
697
124-325 Billing Restoration RAP
697
124-326 IOT Speed Not Registered RAP
698
124-327 IOT Speed Change SW Failure RAP
698
124-333 Asic Rap
699
124-334 Standard Font ROM RAP
699
124-335 Font ROM RAP
700
124-337 ESS Standard RAM RAP
700
124-338 Duplicate Font Roms RAP
701
124-339 ROM DIMM Mismatch RAP
701
124-340 CRUM Market RAP
702
124-341 CRUM Market MCU RAP
702
124-342 CRUM Market System 1 RAP
703
124-343 CRUM Market System 2 RAP
703
124-350 Crum Oem Rap
704
124-351 Crum Oem Mcu Rap
704
124-352 CRUM OEM System 1 RAP
705
124-353 CRUM OEM System 2 RAP
705
124-360 CRUM Validation RAP
706
124-361 CRUM Validation MCU RAP
706
124-362 CRUM Validation System 1 RAP
707
124-363 CRUM Validation System 2 RAP
707
124-372 IOT Controller Software RAP
708
124-373 IOT Manager Software RAP
708
124-374 IOT IM Device Driver Software RAP
709
124-380 CRUM Market (2)
709
124-381 CRUM Market MCU (2)
710
124-382 CRUM Market System 1 (2)
710
124-383 CRUM Market System 2 (2)
711
124-390 OEM Market (2)
711
124-391 Cru Oem Mcu (2)
712
124-392 CRU OEM System 1 (2)
712
124-393 CRU OEM System 2 (2)
713
124-701 Side Tray to Center Tray RAP
713
124-702 Finisher Tray to Center Tray RAP
714
124-705 Punching Cancelled RAP
714
124-706 Folding Cancelled RAP
715
124-708 Output Tray Changed to Sub Tray RAP
715
124-709 Side Tray to Center Tray RAP
716
124-710 Output Tray Changed from Mailboxsorter RAP
716
125-311 PSW Unexpected Fail RAP
718
127-310 ESR Task RAP
720
127-314 WSD Print S/W Fail RAP
720
127-353 LPD Software RAP
721
127-396 Mail I/O Software RAP
721
127-398 IPP Software RAP
722
127-399 JME Software RAP
722
133-210 Fax Parameter RAP
724
133-211 Fax Parameter Value Invalid RAP
724
133-212 Fax Read Error- no Data RAP
725
133-213 Fax Read Error- Invalid Data RAP
725
133-214 Fax USB Initializing RAP
726
133-215 Fax USB Device RAP
726
133-216 Fax USB Host Fatal RAP
727
133-217 Fax Manager Short of Memory RAP
727
133-218 Fax Card Message Library Short of Memory RAP
728
133-219 Fax Work Memory RAP
728
133-220 Fax Control Task RAP
729
133-221 Fax Card Boot RAP
729
133-222 Fax Card Does Not Respond Intervalley RAP
730
133-223 Fax Card Reset RAP
730
133-224 Controller ROM Fax Card ROM RAP
731
133-226 Country Code RAP
731
133-280 Fax Option Slot 1 Board RAP
732
133-281 Received Unknown Message RAP
732
133-282 Fax Card Download RAP
733
133-283 Fax Report Mailbox RAP
733
133-700 Staple/Punch Cancelled RAP
734
133-710 Tray Select Fail RAP
734
134-210 Fax Controller Parameter RAP
736
134-211 Fax Pwb Rap
736
OF 1 Paper Size Mismatch in Width RAP
740
OF 2 Size Switch Assy RAP
740
OF 3 Main Drive Assy RAP
742
OF 4 Dark / Blank Display RAP
742
Image Quality
744
IQ1 IOT Image Quality Entry RAP
746
IQ2 IIT Image Quality Entry RAP
746
IQ3 Low Image Density RAP
747
IQ4 Wrinkled Image RAP
747
IQ5 Residual Image (Ghosting) RAP
748
IQ6 Background RAP
748
IQ7 Deletion RAP
749
IQ8 Skew/Misregistration RAP
749
IQ9 Process Direction Bands, Streaks and Smears RAP
750
IQ10 Unfused Copy/Toner Offset RAP
751
IQ11 Repeating Bands, Streaks, Spots and Smears RAP
751
IQ12 Mottle RAP
752
IQ13 Spots RAP
752
IQ14 Black Prints RAP
753
IQ15 Blank Image RAP
753
Copy Quality Specifications
754
Standard Test Pattern, 82P524/82P521
754
Test Patterns
754
Output Reference Guide, SIR542.00
755
Output Reference Guide, SIR542.00 (J0St3203)
755
Standard Test Pattern (Side B)(J0St3202)
755
IQS1 Solid Area Density Specification
756
IQS2 Uniformity Specification
756
IQS3 Exposure Level Specification
757
IQS4 Lead Edge Registration Specification
757
IQS5 Side Edge Registration Specification
758
Specification of Lead Edge Registration
758
IQS6 Skew Specification
759
IQS7 Lead Edge Deletion Specification
760
IQS8 Trail Edge Deletion Specification
761
IQS9 Side Edge Deletion Specification
761
IQS10 Resolution Specification
762
IQS11 Skips and Smears Specification
763
IQS12 Magnification Specification
764
IQS13 Background Specification
765
Auger Mark
766
Image Defect Samples
766
Strobing (28Mm or 14Mm Pitch Density)
767
White Streaks (Process Direction)
767
Black Bands
768
Toner Contamination
768
Toner Splattering
769
White Spots (Irregular)
769
Regular Blanks in Process Direction (Spots, Streaks, Bands Etc.)
770
Transparency Offset (80Mm Pitch Ghosts)
770
Regular Toner Contamination in Process Direction (Spots, Streaks, Bands Etc.)
771
Regular Toner Contamination in Process Direction (Side 2)
772
Transparency Blocking
772
Moire Due to Interference with Copy Original
773
Gradation Jump in Text & Photo Mode for 100 Lpi Photo Originals
774
CVT (Constant Velocity Transport) Scan Streaks
775
Defects Related to Scan Print
775
Black Discoloration Around White Texts in Medium Density Background
776
Moire in Text Mode (Fine) B/W Scan/Fax for 133 Lpi Originals
776
Repairs and Adjustments
778
REP 1.1.1 Main Drive Assembly
780
Removing the Bracket
781
Removing the Main Drive Assembly (J0St40103)
782
Disconnecting the Connector
784
Removing the Gear Assembly (J0St40201)
784
REP 2.1.1 Feeder 1 Assembly
784
Preparing to Removing the Feeder 1 Assembly
785
Removing the Feeder 1 Assembly
785
REP 2.1.2 Feeder 2 Assembly
786
Removing the Feeder 2 Assembly (J0St40208)
787
REP 2.3.1 Tray Feed/Nudger/Retard Roll
787
Removing the Feed/Nudger/Retard Roll (J0St40206)
788
Sliding the Guide to the Front (J0St40205)
788
REP 2.4.1 Registration Unit
789
Setting Free the Registration Assembly (J0St40212)
789
Removing the Gear Assembly
790
Removing the Registration Assembly (J0St40213)
790
REP 2.5.1 Takeaway Roll
790
Removing the Chute (J0St40202)
791
Removing the BTR Roll Assembly (J0St40216)
792
Removing the Takeaway Roll (J0St40209)
792
REP 2.6.1 BTR Roll
792
Removing the BTR Roll (J0St40210)
793
Removing the Screw (J0St40217)
793
REP 2.6.2 L/H Upper Cover Unit
793
Removing the L/H Upper Cover Unit (J0St40215)
794
Removing the Front L/H Cover
796
Removing the Inner Cover (J0St40305)
796
REP 3.1.1 ROS Unit
796
Disconnecting the Connector (J0St40301)
797
Removing the ROS Shade Assembly
797
Disconnecting the ROS Unit Connectors (X4) (J0St40303)
798
Removing the Toner Box (J0St40302)
798
Removing the ROS Fan and Set It Aside
799
Removing the ROS Unit (J0St40304)
799
Removing the Xero/Developer Cartridge (J0St40402)
800
REP 4.1.1 Xero/Developer Cartridge
800
Removing the Toner Cartridge (J0St40403)
801
REP 4.1.2 Toner Cartridge
801
REP 4.2.1 Dispense Motor
802
Removing the Dispense Motor (J0St40401)
804
Removing the Fuser Unit (J0St40501)
806
REP 5.1.1 Fuser Unit
806
Removing the Exit2+Oct2 (J0St40601)
808
REP 6.1.1 Exit2 + OCT2
808
Removing the MPT Rear Cover (J0St40706)
810
REP 7.1.1 MPT Assembly
810
Disconnecting the Connector (J0St40701)
811
Removing the MPT Assembly (J0St40702)
811
Removing the Plate (J0St40703)
812
REP 7.2.1 MPT Feed Roll/Retard Pad
812
Removing the MPT Feed Roll (J0St40704)
813
Removing the MPT Retard Pad (J0St40705)
813
Feeder Securing Screws
814
REP 7.3.1 HCF Tray 6
814
REP 7.3.2 HCF Feeder
814
Exposing the Docking Base
815
REP 7.3.3 HCF Un-Docking and Docking
815
REP 7.3.4 HCF Tray Cables
816
Gear Bracket Assembly
817
Lift Shaft Rear Tray Cable Pulley
817
Preparing to Remove the Rear Tray Cable
818
Releasing the Cable Ends from the Lift Shaft
818
Rear Tray Cable Details
819
Removing the Rear Tray Cables
819
Lift Shaft Front Tray Cable Pulley
820
Preparing to Remove the Front Tray Cables
820
Removing the Front Tray Cables
821
Front Tray Cable Details
822
Removing Rolls
822
REP 7.3.5 HCF Retard / Feed / Nudger Rolls
822
REP 7.3.6 HCF Feed Shaft
823
Removing the Retard Lever Spring
824
REP 7.3.7 HCF Retard Lever Spring
824
REP 7.3.8 HCF Nudger Bracket/Nudger Lever/Torsion Spring
825
REP 7.3.9 HCF Casters
825
Removing the Lower Chute
826
REP 7.3.10 HCF Takeaway Roll
826
Rep 7.3.11 Hcf Pwb
826
Removing the HCF Feed Motor
827
REP 7.3.12 HCF Feed Motor
827
MCU PWB EPROM Location (J0St40901)
828
Rep 9.1.1 Mcu Pwb
828
Rep 9.1.2 Mcu Pwb Eprom
830
Rep 9.2.1 Ess Pwb
831
ESS PWB EPROM Location (J0St40902)
832
Rep 9.2.2 Ess Pwb Eprom
833
REP 10.1.1 Top Cover Assembly
834
Repairs and Adjustments
834
Removing the Paper Weight Assembly (J0St41003)
835
Removing the Top Cover Assembly (J0St41004)
835
Removing the ESS Cover Assembly (J0St41005)
836
Removing the Rear Middle Cover (J0St41006)
836
REP 10.2.1 Rear Lower Cover
836
Removing the Cover (J0St41007)
837
Removing the Rear Lower Cover (J0St41008)
837
Installing the Platen Cushion (J0St41102)
838
Removing the Platen Cushion (J0St41101)
838
REP 11.1.1 Platen Cushion
838
Removing the Control Panel Assembly (J0St41103)
839
Removing the Platen Glass (J0St41104)
839
REP 11.1.2 Control Panel Assembly
839
REP 11.3.1 Platen Glass
839
Installing the Platen Glass (J0St41105)
840
Removing the IPS Cover (J0St41134)
840
Rep 11.3.2 Iit/Ips Pwb
840
Disconnecting the Connector (J0St41106)
841
Removing the IIT/IPS PWB (J0St41107)
841
EP ROM Replacement (J0St41142)
842
Removing the APS Sensor (J0St41108)
842
REP 11.4.1 Lens Kit Assembly
842
Disconnecting the CCD Flat Cable (J0St41109)
843
Removing the Lens Cover (J0St41135)
843
Chart for Checking L0 and R0 (J0St41143)
844
Removing the Lens Kit Assembly (J0St41110)
844
Adjustment Table (Nut Rotation Amount)
845
Making the Mark(J0St41112)
845
Removing the Platen Cover (J0St41136)
846
REP 11.5.1 Carriage Cable
846
Removing the Left Side Platen (J0St41139)
847
Unfastening the Full Rate Carriage (J0St41113)
847
Removing the Spring (J0St41114)
848
Winding the Carriage Cable Around the Pulley. 1/3 (J0St41115)
848
Winding the Carriage Cable Around the Pulley. 2/3 (J0St41116)
849
Winding the Carriage Cable Around the Pulley. 3/3 (J0St41117)
849
Installing the Carriage Cable (J0St41119)
850
The Number of Coils Made by Carriage Cable at the Front and Rear
850
Installing the Carriage Cable at the Front (J0St41121)
851
Installing the Spring (J0St41120)
851
Disconnecting the Cable (J0St82019)
852
Removing the Rear Upper Cover (J0St82020)
852
REP 11.5.2 Carriage Motor Assembly
852
Disconnecting the Connector (J0St41122)
853
Removing the Carriage Motor Assembly (J0St41123)
853
Removing the Exposure Lamp (J0St41124)
854
REP 11.6.1 Exposure Lamp
854
Disconnecting the Connector (J0St41125)
855
REP 11.6.2 Lamp Wire Harness
855
Removing the Full Rate Carriage (J0St41126)
856
Removing the Lamp Wire Harness (J0St41127)
856
Removing the Foot Covers (J0St41212)
858
Removing the Left Lower Cover (J0St41213)
858
REP 12.1 Tray 3 Feeder (2TM)
858
Removing the Bracket (J0St41201)
859
Removing the Feed out Chute (J0St41202)
859
Removing the Tray 3 Feeder (J0St41204)
860
REP 12.2 Tray 4 Feeder (2TM)
861
Removing the Feed out Chute (J0St41206)
862
Removing the Screws (J0St41205)
862
Disconnecting the Connector (J0St41207)
863
Removing the Tray 4 Feeder (J0St41208)
863
Feed/Retard/Nudger Roll (2TM)
864
Moving the Front Chute (J0St41209)
864
Removing the Feed/Retard/Nudger Roll (J0St41210)
864
Rep 12.4 2Tm Pwb
865
Setting the Dip Switch (J0St41211)
865
Removing the Tray 3 Assembly (J0St41301)
866
REP 13.1.1 Tray 3 Assembly (TTM)
866
Removing the Tray 4 Assembly (J0St41302)
867
REP 13.1.2 Tray 4 Assembly (TTM)
867
Removing the Tray 4 Cover (J0St41303)
868
REP 13.3.1 Front/Rear Tray Cable (TTM)
868
Removing the Left Shaft Assembly to Remove the Tray Cable (J0St41305)
869
Removing the Tray Cable (J0St41304)
869
Removing the Tray 4 Transport Assembly (J0St41312)
870
REP 13.4.1 Tray 4 Feeder (TTM)
870
Removing the Tray 4 Feeder Assembly (J0St41307)
871
Removing the Lower Chute (J0St41308)
872
Removing the Tray 4 Feeder (J0St41309)
872
Removing the Upper/Lower Chute (J0St41313)
873
REP 13.5.1 Tray 3 Feeder (TTM)
873
Removing the Screw (J0St41315)
874
Removing the Tray 3 Assembly (J0St41310)
874
Removing the Tray 3 Feeder (J0St41311)
875
REP 13.6.1 Feed/Retard/Nudger Roll (TTM)
875
Rep 13.8.1 Ttm Pwb
877
Setting the Dip Switch (J0St41314)
877
Rep 15.1.1 Dadf
878
Installing the DADF
879
Removing the DADF
879
DADF Platen Cushion
880
Removing the DADF Platen Cushion
880
Installing the DADF Platen Cushion
881
REP 15.2.1 DADF Document Tray
881
Disconnecting the DADF PWB Connectors
883
REP 15.2.2 DADF Feeder Assembly
883
Removing the DADF Feeder Assembly
884
Removing the Lever and Wire Harness
884
REP 15.2.3 DADF Front Cover
885
REP 15.2.4 DADF Rear Cover
885
Installing the DADF Rear Cover
886
Removing the DADF Rear Cover
886
Removing the DADF PWB
887
Rep 15.3.1 Dadf Pwb
887
Left Counter Balance
888
Removing the Left Counter Balance
888
REP 15.3.3 Right Counter Balance
889
Unfastening the Right Counter Balance
889
Open the Top Cover
890
Removing the Right Counter Balance
890
REP 15.4.1 Retard Roll
890
Lift up the Retard Roll Shaft
891
Removing the Retard Roll
891
Installing the Retard Roll
892
REP 15.4.2 Top Cover Assembly
892
Removing the Feed Upper Chute
893
Removing the Harness Guide
893
Removing the Plate Spring
894
Removing the Top Cover Assembly
894
Removing the Wire Harness
895
Unfastening the Wire Harness
895
Removing the Feed Upper Chute and Plate Spring
896
Hooking on the Spring
897
REP 15.6.1 Nudger Roll, Feed Roll
897
Rotate the Gear to Extend the Retard Roll
898
Removing the Nudger Roll Shaft and the Nudger Roll
899
Removing the Retaining Clip from the Nudger Roll
899
Removing the Feed Roll Locking Tab
900
Removing the Feed Roll Shaft and the Feed Roll
900
Installing the Feed Roll and Feed Roll Shaft
901
Installing the Nudger Roll, Nudger Roll Shaft and Locking Clip
901
Installing the Feed Upper Chute
902
REP 15.8.1 Registration Roll
902
Loosening the Belt Tension
903
Moving the Motor Unit
903
Removing the Feed Guide
904
Removing the Sensor Holder
904
Removing the Registration Roll
905
Pulling the Wire Harness
906
REP 16.1.1 H-Transport Assembly
908
REP 16.1.2 Hole Punch Assembly
908
REP 16.1.3 H-Transport Belt
909
REP 16.1.4 H-Transport Motor
909
Locating the Docking Latch Release (J0St41730.Jpg)
910
REP 16.2.1 SB-Finisher Undocking
910
Releasing the Docking Latch (J0St41731.Jpg)
911
REP 16.2.2 Front Cover Assembly
911
Rear Upper Cover
912
REP 16.2.4 Rear Lower Cover
912
Aligning the Eject Cover (J0St41681)
913
Removing the Eject Cover (J0St41682)
913
REP 16.2.5 Eject Cover
913
Inserting the Latch through the Hole in the Cover (J0St41688)
914
Positioning the Latch Spring (J0St41692)
914
Installing the Retaining Screw (J0St41683)
915
Positioning the Latch Hook and Latch Pin (J0St41689)
915
Removing the Foot Cover (J0St41699)
916
Removing the Stacker Lower Cover (J0St41699)
916
REP 16.2.6 Foot Cover
916
REP 16.2.7 Stacker Lower Cover
916
REP 16.2.8 Stacker Upper Cover
917
REP 16.2.9 Stack Height Sensors 1 and 2
917
Removing the Screws (2) (J0St41697)
918
Removing the Sub Paddle Solenoid Assembly (J0St41736)
918
REP 16.2.11 Finisher Stapler Move Motor
918
Sub Paddle Solenoid Assembly
918
Removing the Stapler Move Motor (J0St41696)
919
Removing the Wire Guide (J0St41698)
919
Finisher Stapler Assembly
920
Removing the Finisher Stapler Assembly (Jost41737.Jpg)
920
Removing the Stapler Cover (Jost41722.Jpg)
920
Removing the Eject Roll Shaft (J0St41720.Jpg)
921
REP 16.2.13 Compiler Tray Assembly
921
Disconnecting the Set Clamp Holder Springs (3) (J0St41727.Jpg)
922
Removing the Compiler Tray Screw (J0St41721.Jpg)
922
Notice the Set Clamp Shaft Gear Orientation (J0St41723)
923
Removing the Front E-Ring from the Set Clamp Shaft (J0St41722)T
923
Preparing to Remove the Set Clamp Shaft (J0St41723)
924
Preparing to Remove the Set Clamp Shaft (J0St41724)
924
Remove the Compiler Tray Assembly (J0St41723)
925
Removing the Set Clamp Shaft (J0St41725)
925
Installing the Set Clamp Shaft into Position (J0St41725)
926
Preparing to Install the Holder Springs (3) (J0St41729)
926
Aligning the Gears and Stack Height Sensor Flag (J0St41723)
927
Installing the Bushing, Spring and Gear Onto the Rear of the Shaft
927
Installing the Bushing and E-Ring (J0St41722)
928
Orientation of 2 Gears and Stack Height Sensor Flag (J0St41728)
928
Attaching the Set Clamp Holder Springs (3) (J0St41727)
929
Preparing to Install the Eject Roll Shaft (J0St41732)
929
Installing Brass Bearing and E-Ring on Front of the Shaft
930
Installing the Eject Roll Shaft Rear Parts (J0St41720)
930
Folder Knife Assembly
931
Folder Knife Assembly (J0St41685)
931
Removing the Folder Knife Assembly (J0St41686)
931
Removing the Stacker Tray (J0St41693)
932
REP 16.2.15 Stacker Elevator Motor
932
REP 16.2.16 Stacker Tray
932
REP 16.2.18 Eject Belt
933
REP 16.2.19 Eject Motor Assembly
933
Removing the Finisher LVPS (J0St41691)
934
Removing the Finisher PWB (J0St41684)
934
REP 16.2.21 Finisher PWB
934
REP 16.2.22 Finisher LVPS
934
Removing the Tamper Motor (J0St41728)
935
REP 16.2.23 Eject Motor
935
REP 16.2.24 Front/Rear Tamper Motor
935
Removing the Bracket (J0St41733)
936
Removing the Front or Rear Tamper Home Sensor (J0St41733)
936
REP 16.2.25 Front/Rear Tamper Home Sensors
936
REP 16.2.26 Compiler no Paper Sensor
936
Removing the Carriage Assembly (J0St41717)
937
Removing the Compiler no Paper Sensor (J0St41735)
937
REP 16.2.27 Front/Rear Carriage Assembly
937
REP 16.3.1 Booklet PWB
938
Eject Cover and Thumbscrew (J0St41701)
939
Removing the Booklet PWB (J0St41680)
939
REP 16.3.2 Booklet Maker Assembly
939
Connector Cover (J0St41666)
940
Disconnecting the Booklet Maker Assembly (J0St41667)
940
Removing the Booklet Front Cover (J0St41668)
941
Removing the Booklet Maker Assembly (J0St41673)
941
REP 16.3.3 Booklet Front Cover
941
Removing the Booklet Front Cover (J0St41669)
942
Removing the Booklet Side Cover (J0St41676)
942
REP 16.3.4 Booklet Rear Cover
942
Removing the Booklet Rear Cover (J0St41675)
943
Removing the Booklet PWB Cover (J0St41674)
944
Removing the Booklet Top Cover (J0St41679)
944
REP 16.3.5 Booklet Top Cover
944
REP 16.3.6 Booklet PWB Cover
944
Removing the Stapler Guard (J0St41677)
945
Removing the Stapler Lower Cover (J0St41695)
945
REP 16.3.7 Booklet Left Cover
945
REP 16.3.8 Booklet Front/Rear Stapler
945
Removing the Chute and Stapler Rear Cover (J0St41694)
946
Removing the Cover (J0St41671)
947
Removing the Stapler (J0St41678)
947
REP 16.3.9 Booklet Stapler Move Motor
947
Removing the Booklet Stapler Move Motor (J0St41672)
948
Disconnecting the A-Finisher Wire Harness (Af422110)
950
Removing the Connector Cover (Af422109)
950
REP 22.1 A-Finisher
950
Loosening the Thumb Screws (Af422105)
951
Removing the A-Finisher (Af422106)
951
Removing the Bearing (J0Fa42202)
952
Removing the Gear (J0Fa42203)
952
Removing the Pulley (J0Fa42201)
952
REP 22.3.1 Paddle Belt
952
Removing Bearing (0Fa42206)
953
Removing Shaft Assembly (J0Fa42207)
953
Removing the Bearing (J0Fa42204)
953
Removing the Paddle Link Assembly (J0Fa42205)
953
Disconnecting the Connector (J0Fa42210)
954
Installing the Paddle Link Assembly (J0Fa42209)
954
Removing the Paddle Belt (J0Fa42208)
954
REP 22.3.2 Sub Paddle Solenoid
954
Removing the Sub Paddle Solenoid (J0Fa42213)
955
Removing the Sub Paddle Solenoid Assembly (J0Fa42211)
955
Removing the Support (J0Fa42212)
955
Installing the Sub Paddle Assembly (J0Fa42214)
956
Removing the Gear (J0Fa42215)
956
REP 22.4.1 Exit Roll Assembly
956
Removing the Front Bearing (J0Fa42216)
957
Removing the Rear Bearing (J0Fa42217)
957
Removing the Exit Roll Assembly (J0Fa42218)
958
Removing the Staple Assembly (J0Fa42219)
958
REP 22.4.2 Staple Assembly
958
Disconnecting Connector (J0Fa42221)
959
Removing the Bracket (J0Fa42220)
959
REP 22.4.3 Set Clamp Home Sensor
959
Removing the Set Clamp Home Sensor (J0Fa42223)
960
Removing the Set Clamp Home Sensor Assembly (J0Fa42222)
960
Removing the Upper Frame Section (Af422101)
961
REP 22.4.4 Exit Roll Assembly
961
Removing the Exit Roll Assembly (Af422103)
962
Removing the Upper Chute Assembly (Af422100)
962
REP 22.5.1 Pinch Roll
963
REP 22.5.2 Finisher Entrance Sensor
963
Removing the Bottom Plate (J0Fa42267)
964
Removing the Finisher Entrance Sensor (J0Fa42226)
964
Removing the Finisher Entrance Sensor Assembly (J0Fa42225)
964
Moving the Bottom Plate (J0Fa42267)
965
Removing the Compile Exit Sensor Assembly (J0Fa42227)
965
Removing the Connector Bracket (0Fa42266)
965
REP 22.5.3 Compile Exit Sensor
965
Removing the Compile Exit Sensor (J0Fa42228)
966
Removing the Gears (J0Fa42292)
966
REP 22.5.4 Main Paddle Shaft Assembly
966
Removing the Bearing (J0Fa42294)
967
Removing the Gear Pulley (J0Fa42293)
967
Removing the Main Paddle Shaft Assembly (J0Fa42233)
967
Removing the Support Bearing (J0Fa42232)
967
Removing the Stapler Assembly (J0Fa42219)
968
Removing the Support Bearing (J0Fa42234)
968
REP 22.5.5 Lower Chute Assembly
968
Removing the Gears (J0Fa42229)
969
Removing the Transport Motor (J0Fa42236)
969
Removing the Bearing (J0Fa42231)
970
Removing the ENT Lower Chute Assembly (J0Fa42237)
970
Removing the Gear (J0Fa42230)
970
REP 22.6.1 ENT Roll Assembly
971
Removing the Gear (Af422102)
972
REP 22.6.2 Upper Chute Assembly
973
Removing the Finisher Control PWB (J0Fa42245)
974
REP 22.7.1 Finisher Control PWB
974
REP 22.8.1 Stacker Tray Assembly
975
Installing the Stacker Tray Assembly (J0Fa42251)
976
Removing the Rear Bracket (J0Fa42252)
976
Removing the Stacker Tray Assembly (J0Fa42250)
976
REP 22.8.2 Stacker Shaft Assembly
976
Disconnecting the Connector (J0Fa42261)
977
Removing the Front Bracket (J0Fa42253)
977
Removing the Top Tray (J0Fa42254)
977
Removing the Actuator (J0Fa42258)
978
Removing the Stacker Assembly (J0Fa42257)
978
Removing the Stacker Stack Sensor Assembly (J0Fa42256)
978
Moving the Bearing (J0Fa42259)
979
Removing the Stacker Shaft Assembly (J0Fa42260)
979
REP 22.8.3 Stacker Motor
979
Installing the Stacker Motor (J0Fa42265)
980
Removing the Bracket (J0Fa42262)
980
Removing the Stacker Motor (J0Fa42264)
980
Removing the Stacker Motor Assembly (J0Fa42263)
980
Removing the Connector Bracket (J0Fa42266)
981
Removing the Stacker Stack Sensor Assembly (Af422108)
981
REP 22.8.4 Stacker Stack Sensor
981
REP 22.9.1 Compile Assembly
981
Releasing the Clamp (J0Fa42268)
982
Removing the Front Tapping Screw (J0Fa42269)
982
Removing the Stacker Tray (Af422107)
982
REP 22.9.2 Set Clamp Shaft
983
Installing the Eject Belts (J0Fa42278)
985
Moving the Eject Home Sensor Assembly (J0Fa42279)
985
Removing the Set Clamp Shaft (J0Fa42277)
985
REP 22.9.3 Eject Belts
985
Removing the Eject Belts (J0Fa42280)
986
REP 22.9.4 Eject/Set Clamp Motor Assembly
986
REP 22.9.5 Rear Tamper Home Sensor
988
Removing the Rear Tamper Home Sensor (J0Fa42284)
989
Removing the Rear Tamper Home Sensor Assembly (J0Fa42283)
989
Removing the Bracket Assembly (J0Fa42272)
990
Removing the Eject Shaft (J0Fa42274)
990
Removing the KL-Clips (J0Fa42273)
990
REP 22.9.6 Eject Shaft Assembly
990
REP 22.10.1 Front/Rear Tamper Motor Assembly
991
REP 22.10.2 Front Tamper Home Sensor
993
REP 22.10.3 Eject Clamp Home Sensor
994
REP 22.10.4 Stack Height Sensor
996
ADJ 7.1.2 HCF Side Edge Registration
998
HCF (Tray 6) NVM Settings for Side Edge Registration
999
ADJ 9.1.1 IOT Lead Edge/Side Edge Registration
1000
NVM List of Lead Edge
1001
NVM List of Side Edge
1001
ADJ 9.2.1 Edge Erase Value Adjustment
1002
NVM List
1002
ADJ 9.3.1 Firmware Version Downloading
1003
M123 USB Port
1003
M123 NETWORK Port
1004
M123 PARALLEL Port
1004
ADJ 11.1.1 IIT Lead Edge/Side Edge Registration
1006
ADJ 11.2.1 Reduce/Enlarge Adjustment
1007
Enlargement Areas to be Measured (J0St41138)
1007
ADJ 11.6.1 Full/Half Rate Carriage Position Adjustment
1008
Position Adjustment of Half Rate Carriage 1/3 (J0St41129)
1009
Taking out the Tools (J0St41128)
1009
Position Adjustment of Half Rate Carriage 2/3 (J0St41130)
1010
Position Adjustment of Half Rate Carriage 3/3 (J0St41131)
1010
Position Adjustment of Full Rate Carriage 1/2 (J0St41132)
1011
Position Adjustment of Full Rate Carriage 2/2 (J0St41133)
1011
ADJ 15.1.1 DADF Side Edge Registration
1012
Creating a Test Pattern Original
1012
ADJ 15.1.3 DADF Non-Standard Sized Original Customized Registration Function
1013
ADJ 15.1.4 DADF Lead Edge Registration
1014
ADJ 15.1.5 DADF Height Adjustment
1016
Adjusting the DADF Height
1016
ADJ 15.1.6 DADF Position (Skew) Adjustment
1017
Adjusting the DADF Position
1018
Output Copy after Adjustment
1018
Parts List
1020
Abbreviations
1022
Common Hardware
1022
Electrical Connectors and Fasteners
1022
Introduction
1022
Overview
1022
Symbology
1022
Brackets
1023
Subsystem Information
1023
Tag
1023
Use of the Term “Assembly”
1023
Symbology
1024
With Tag Symbol
1024
Without Tag Symbol
1024
Entire Drawing with Tag Symbol
1025
Entire Drawing Without Tag Symbol
1025
PL 1.1 Main Drive
1026
PL 2.1 Tray, Feeder 1/2 Assembly
1027
PL 2.2 Tray 1/2
1028
PL 2.3 Feeder 1/2 Assembly
1029
PL 2.4 Registration
1030
PL 2.5 Vertical Transport Cover
1031
PL 2.6 Transfer Cover Assembly
1032
PL 2.7 L/H Upper Chute Assembly
1033
PL 2.8 L/H Upper Cover Assembly
1034
PL 2.9 Envelope Tray Assembly
1035
Pl 3.1 Ros
1036
PL 4.1 CRU, Toner Cartridge
1037
PL 4.2 Toner System
1038
PL 5.1 Fuser Unit
1039
PL 6.1 Exit
1040
PL 6.2 Exit 1
1041
PL 6.3 L/H Upper Chute Assembly
1042
PL 6.4 Tray Guide Assembly
1043
PL 6.5 Tray Guide Assembly
1044
PL 7.1 MSI Assembly
1045
PL 7.2 Lower Frame Assembly
1046
PL 7.3 MSI Tray Assembly
1047
PL 8.1 Duplex Unit
1048
PL 8.2 Inner Chute Assembly
1049
Parts List
1050
PL 9.1 Electrical
1050
Pl 9.2 Ess
1051
PL 9.3 FAX Unit
1052
PL 9.4 Wire Harnesses
1053
PL 10.1 Cover-Front, Left
1054
PL 10.2 Cover-Rear, Right
1055
PL 11.1 Platen/Cover
1056
PL 11.2 Control Panel
1057
PL 11.3 Platen Glass
1058
PL 11.4 CCD PWB, Sensor
1059
PL 11.5 Carriage Cable/Motor
1060
PL 11.6 Full/Half Rate Carriage
1061
PL 12.1 Tray, Feeder Assembly-2 Tray
1062
PL 12.2 Tray 3/4 Assembly-2 Tray
1063
PL 12.3 Tray 3/4 Feeder- 2 Tray
1064
PL 12.4 Left Cover-2Tray
1065
PL 12.5 Takeaway Roll-2Tray
1066
PL 12.6 Electrical-2Tray
1067
PL 12.7 Cover-2Tray
1068
PL 13.1 Tray 3/4 Assembly-Tandem
1069
PL 13.2 Tray 3 Assembly-Tandem
1070
PL 13.3 Tray 4 Assembly-Tandem
1071
PL 13.4 Paper Feed (1/2)-Tandem
1072
PL 13.5 Paper Feed (2/2)-Tandem
1073
PL 13.6 Tray 3/4 Feeder-Tandem Tray
1074
PL 13.7 Left Cover Assembly-Tandem
1075
PL 13.8 Electrical-Tandem Tray
1076
PL 13.9 Cover-Tandem Tray
1077
PL 14.1 Mobile Stand
1078
PL 15.1 DADF Accessory
1079
PL 15.2 DADF Component Cover
1080
PL 15.3 DADF Base Cover
1081
PL 15.4 DADF Feeder Component
1082
PL 15.5 Top Cover Component
1083
PL 15.6 Takeaway Pinch Roll, Nudger Motor, Nudger/Feed Roll
1084
PL 15.7 DADF Feeder-Chute
1085
PL 15.8 DADF Feeder-Roll
1086
PL 15.9 Motor Unit Assembly
1087
PL 18.1 HCF Unit
1089
PL 18.2 HCF Tray 6 (1 of 2)
1090
PL 18.3 HCF Tray 6 (2 of 2)
1091
PL 18.4 HCF Feeder (1 of 3)
1092
PL 18.5 HCF Feeder (2 of 3)
1093
PL 18.6 HCF Feeder (3 of 3)
1094
PL 18.7 HCF Top Cover Unit
1095
PL 18.8 HCF Electrical and Rail
1096
PL 22.1 Finisher Assembly (Part 1 of 2)
1097
PL 22.2 Finisher Assembly (Part 2 of 2)
1098
PL 22.3 Stacker Base Assembly (Part 1 of 5)
1099
PL 22.4 Stacker Base Assembly (Part 2 of 5)
1100
PL 22.5 Stacker Base Assembly (Part 3 of 5)
1101
PL 22.6 Stacker Base Assembly (Part 4 of 5)
1102
PL 22.7 Stacker Base Assembly (Part 5 of 5)
1103
PL 22.8 Stacker Tray Assembly
1104
PL 22.9 Compile Assembly (Part 1 of 2)
1105
PL 22.10 Compile Assembly (Part 2 of 2)
1106
PL 23.1 H-Transport Assembly (1 of 5)
1107
SB Finisher
1107
PL 23.2 H - Transport Assembly (2 of 5)
1108
PL 23.3 H - Transport Assembly (3 of 5)
1109
PL 23.4 H - Transport Assembly (4 of 5)
1110
PL 23.5 H - Transport Assembly (5 of 5)
1111
PL 23.6 Finisher Cover
1112
PL 23.7 Finisher Stacker
1113
PL 23.8 Finisher Stapler
1114
PL 23.9 Finisher Eject (1 of 5)
1115
PL 23.10 Finisher Eject (2 of 5)
1116
PL 23.11 Finisher Eject (3 of 5)
1117
PL 23.12 Finisher Eject (4 of 5)
1118
PL 23.13 Finisher Eject (5 of 5)
1119
PL 23.14 Finisher Exit/Folder Assembly
1120
PL 23.15 Folder Assembly
1121
PL 23.16 Finisher Electrical
1122
PL 23.17 Booklet Cover
1123
PL 23.18 Booklet Stapler Assembly
1124
PL 23.19 Booklet Front Stapler Assembly
1125
PL 23.20 Booklet Rear Stapler Assembly
1126
PL 23.21 Booklet Electrical
1127
Common Hardware
1128
Part Number Index
1138
General Procedures and Information
1140
Accessing Diagnostic Routines
1142
Entering UI Diagnostics
1142
UI Diagnostic Mode
1142
Exiting UI Diagnostics
1143
Failure Report
1143
Printing Service Reports
1143
Failure Report
1144
Jam Report
1144
Shutdown Report
1145
NVM Read/Write
1146
Billing
1147
Chain 740-XXX ESS if
1147
IOT NVM List
1147
Drive
1148
Nohad
1148
Ph
1148
IIT NVM List
1170
2: Normal 0~3
1183
Cvt Dadf Nvm List
1199
Meter Counter
1199
Stored Data
1199
I/O Port Protocol
1200
Serial Number/Billing Meter Data
1252
Reading HFSI
1253
Initialize HFSI Counters
1254
Adjust Tone up / down
1258
Tray5 (Bypass) Guide Adjustment
1259
Initialize NVM
1260
NVM Initialization
1260
Component Control
1262
Input Component Control Codes IOT
1263
Stacking Component Codes
1263
Hard Disk Diagnostic Program
1273
Test Pattern Print
1274
Webpage Administrator Password
1276
Center Tray Offsetting
1277
E-Mail Icon
1277
FAX Output Separation
1278
General Procedures
1278
GP 1 Intermittent Problem RAP
1280
GP 2 Fax Diagnostics
1281
Relay On/Off Test
1281
Signal Sending Test
1281
To Access Fax Diagnostics
1281
GP 3 Resetting the Administrator Password
1283
GP 4 Replacing Billing Pwbs
1284
GP 5 Printing Reports
1285
GP 6 Special Boot Modes
1286
GP 7 Country Code Setting
1287
GP 8 Firmware Version
1288
GP 9 Key Operator Log in
1289
Space Requirements
1290
Product Specs.
1291
Component Weights
1292
Copy Speed
1292
Paper Capacities
1292
Product Codes
1292
Common Tools
1293
IIT/DADF Specifications
1293
Log Book Storage
1294
Product Tools and Test Patterns
1294
Cleaning Materials
1295
Machine Consumables
1295
Glossary of Terms
1296
Iot/Processor (P) Tags
1298
Change Tag Introduction
1298
Wiring Data
1300
Plug/Jack Locations
1302
How to Use the Plug/Jack Location List
1302
Plug/Jack Location List
1302
Plug/Jack Illustrations
1303
A-Finisher Front Location (J0Fa71001)
1303
A-Finisher PWB Location (J0Fa71002)
1303
A-Finisher Bottom Location (J0Fa71003)
1304
S/B Finisher Plug/Jack Locations
1306
HCF Plug/Jack Locations
1314
Other manuals for Xerox WorkCentre 5230
Supplementary Guide
30 pages
Quick Network Setup Guide
4 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Xerox WorkCentre 5230 and is the answer not in the manual?
Ask a question
Xerox WorkCentre 5230 Specifications
General
Maximum print size
A3 (297 x 420 mm)
Standard input capacity
500 sheets
Internal memory
No MB
Type
Digital copier
Related product manuals
Xerox WorkCentre 5225
182 pages
Xerox WorkCentre 5222
1457 pages
Xerox WORKCENTRE 5755
11 pages
Xerox WorkCentre 5335
222 pages
Xerox WorkCentre 5945
722 pages
Xerox WorkCentre 5855
83 pages
Xerox WorkCentre 5955
69 pages
Xerox WorkCentre 5019
184 pages
Xerox WORKCENTRE 5745
11 pages
Xerox WorkCentre 5875
83 pages
Xerox WorkCentre 5765
11 pages
Xerox WorkCentre 5325
222 pages
Need help?
General
To Next Page
