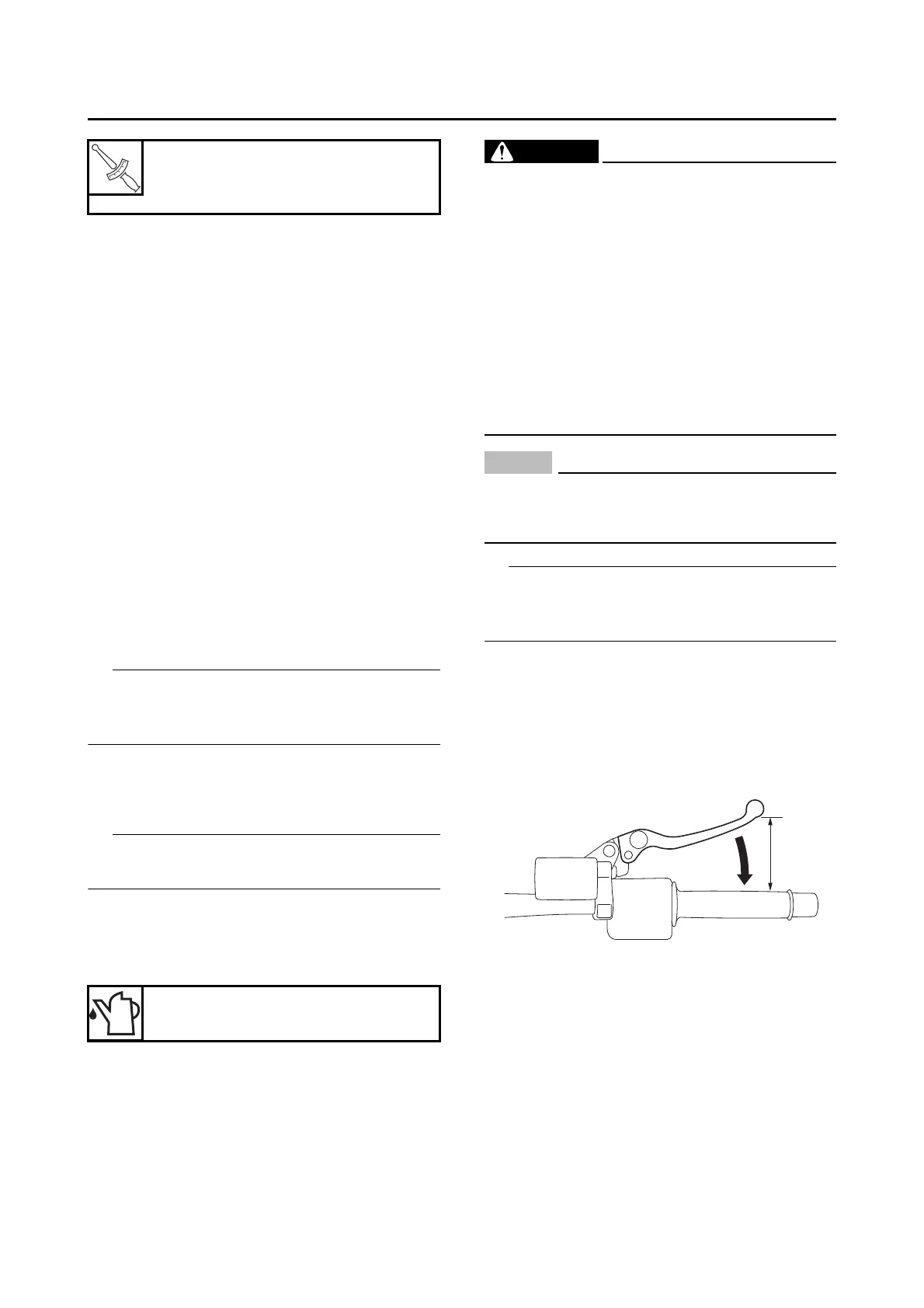

3-14
PERIODIC MAINTENANCE
8. Install:
Footboard
Rear side cowling assembly
Side cover
Fuel tank cover assembly
Center cover
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Bottom center cowling
Side panel
Bottom side cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
EAS30801
CHECKING THE BRAKE OPERATION
1. Check:
Brake operation
Brake not working properly Check the
brake system.
Refer to “FRONT BRAKE” on page 4-38 and
“REAR BRAKE” on page 4-50.
TIP
Drive on the road, operate the front and rear
brakes separately and check to see if the brakes
are operating properly.
EAS30632
CHECKING THE BRAKE FLUID LEVEL
1. Stand the vehicle on a level surface.
TIP
Place the vehicle on the centerstand.
Make sure the vehicle is upright.
2. Check:
Brake fluid level
Below the minimum level mark Add the
specified brake fluid to the proper level.
WARNING
EWA13540
Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
When refilling, be careful that water does
not enter the brake master cylinder reser-
voir. Water will significantly lower the boil-
ing point of the brake fluid and could cause
vapor lock.
NOTICE
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
TIP
In order to ensure a correct reading of the brake
fluid level, make sure the top of the brake master
cylinder reservoir is horizontal.
EAS30630
ADJUSTING THE FRONT DISC BRAKE
1. Adjust:
Front brake lever position
(distance “a” from the throttle grip to the brake
lever)
a. Push the brake lever forward.
b. Turn the adjusting dial “1” until the brake le-
ver is in the desired position.
c. Align the appropriate setting on the adjust-
ing dial with the mark “a” on the brake lever.
V-belt case air filter element joint
clamp (left side)
3.0 N·m (0.30 kgf·m, 2.2 lb·ft)
Specified brake fluid
DOT 4
T
R
.
.
a
G088889
