3-12
PERIODIC MAINTENANCE
EAS30626
CHECKING THE CANISTER
1. Remove:
Bottom side cowling
Side panel
Bottom center cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover
Fuel tank cover assembly
Side cover
Rear side cowling assembly
Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Fuel tank
Refer to “FUEL TANK” on page 7-1.
2. Check:
Canister
Canister purge hose
Fuel tank breather hose
Canister breather hose
Cracks/damage Replace.
3. Install:
Fuel tank
Refer to “FUEL TANK” on page 7-1.
Footboard
Rear side cowling assembly
Side cover
Fuel tank cover assembly
Center cover
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Bottom center cowling
Side panel
Bottom side cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
EAS30799
ADJUSTING THE EXHAUST GAS VOLUME
TIP
Be sure to set the CO density level to standard,
and then adjust the exhaust gas volume.
To adjust the exhaust gas volume, use the CO
adjustment mode of the YDT. For more infor-
mation, refer to the operation manual of the
YDT.
1. Remove the protective cap, and then connect
the YDT to coupler.
Refer to “YDT” on page 9-3.
TIP
Yamaha diagnostic tool (A/I) (90890-03264) in-
cludes YDT sub harness (6P) (90890-03266).
If you already have Yamaha diagnostic tool (A/
I) (90890-03262), YDT sub harness (6P)
(90890-03266) is separately required.
EAS31130
REPLACING THE AIR FILTER ELEMENT
AND CLEANING THE CHECK HOSE
1. Remove:
Bottom side cowling
Side panel
Radiator cover
Refer to“GENERAL CHASSIS (1)” on
page 4-1.

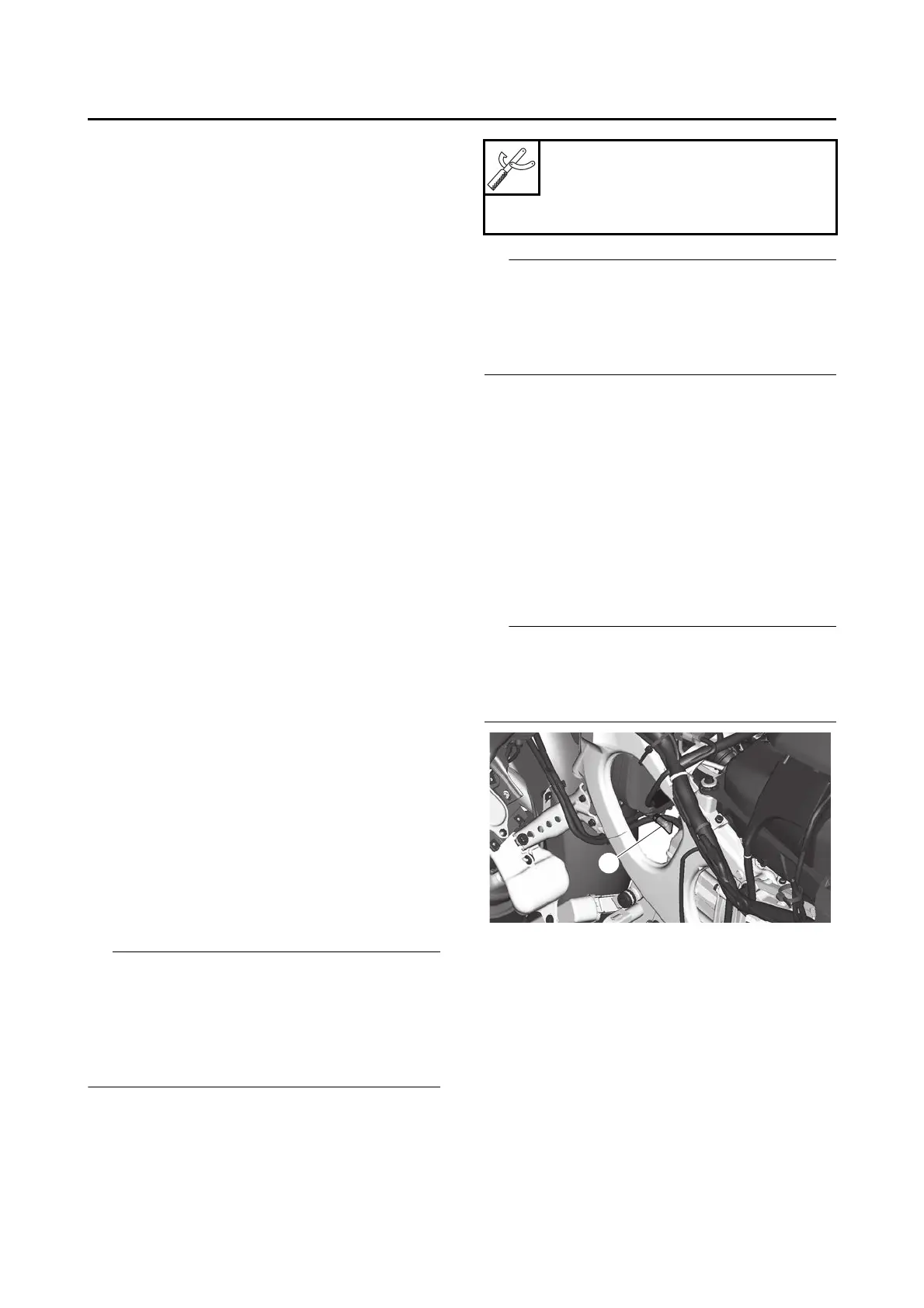

2. Clean:
Air filter case check hose “1”
TIP
There is an air filter case check hose at the bot-
tom of the air filter case. If dust and/or water col-
lects in this hose, clean the air filter case check
hose and replace the air filter element.
3. Remove:
Center cover
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
4. Remove:
Air filter case cover
Air filter element
Refer to “THROTTLE BODY” on page 7-5.
5. Check:
Air filter element
Damage Replace.
Yamaha diagnostic tool USB
90890-03267
Yamaha diagnostic tool (A/I)
90890-03264
1
