4-8
GENERAL CHASSIS (1)

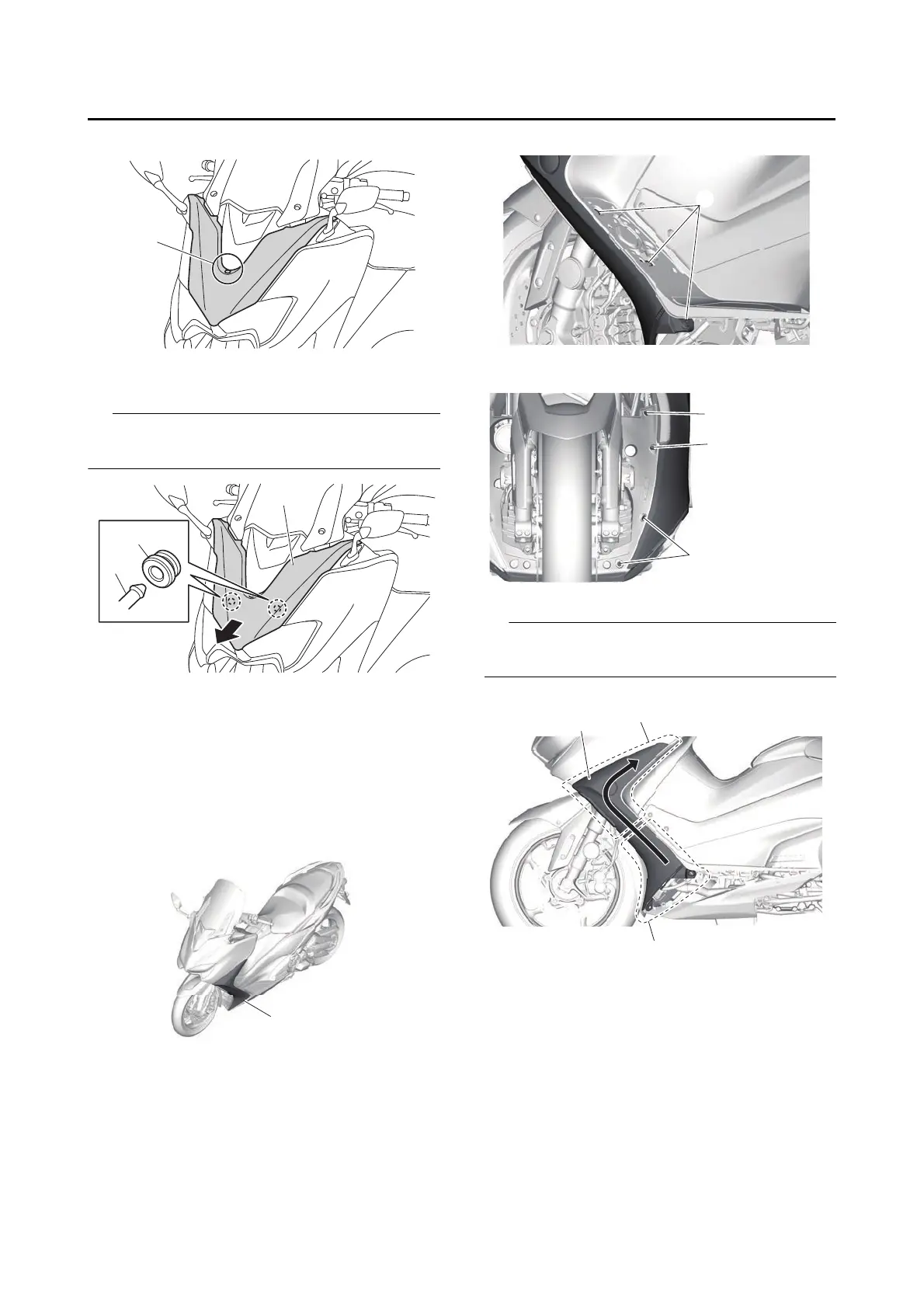

b. Remove the front cover bolt “3”.
c. Remove the front cover “1” by sliding it for-
ward.
TIP
Remove projections “a” on the front cover from
grommets “b”.
EAS30821
REMOVING THE SIDE PANEL
The following procedure applies to both of the
side panels.
1. Remove:
• Bottom side cowling
2. Remove:
• Side panel “1”
a. Remove the side panel screws “2”.
b. Remove the quick fasteners “3” and the
side panel bolt “4”.
c. Remove the side panel “1”.
TIP
Remove the side panel by removing the lower
part “a” and upper part “b”.
3
1
a
b
1
2
3
3
4
a
b
1
