6-7
OIL COOLER
EAS20064
OIL COOLER

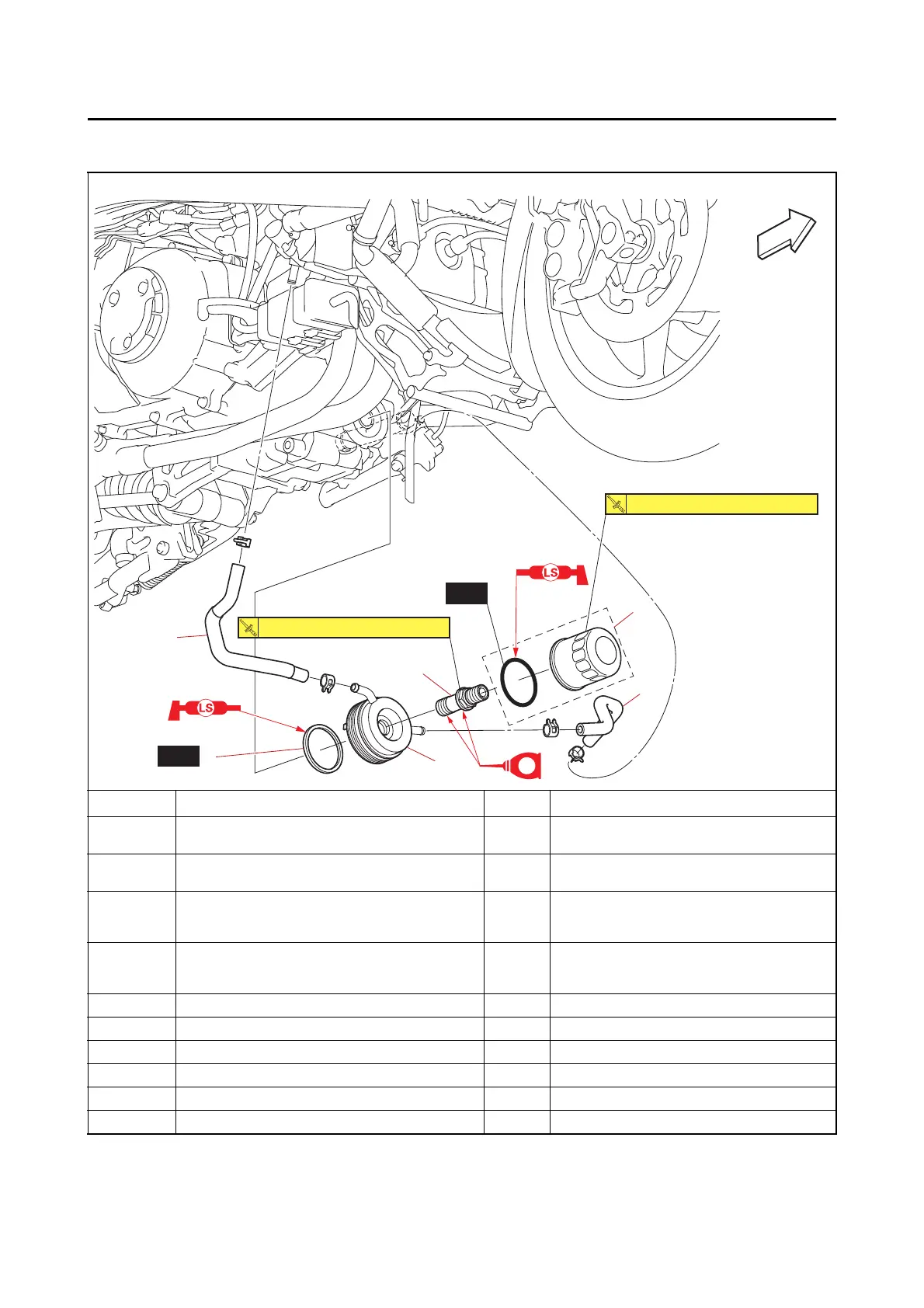

Removing the oil cooler
Order Job/Parts to remove Q’ty Remarks
Bottom side cowling/Side panel/Radiator cover/
Bottom center cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-27.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-31.
1 Oil filter cartridge 1
2 Oil cooler outlet hose 1
3 Oil cooler inlet hose 1
4 Oil filter cartridge union bolt 1
5 Oil cooler 1
6Gasket 1
New
New
1
2
3
5
6
FWDFWD
4
E
17 Nm (1.7 kgfm, 13 lbft)
40 Nm (4.0 kgfm, 30 lbft)
