4-9
GENERAL CHASSIS (1)
EAS30822

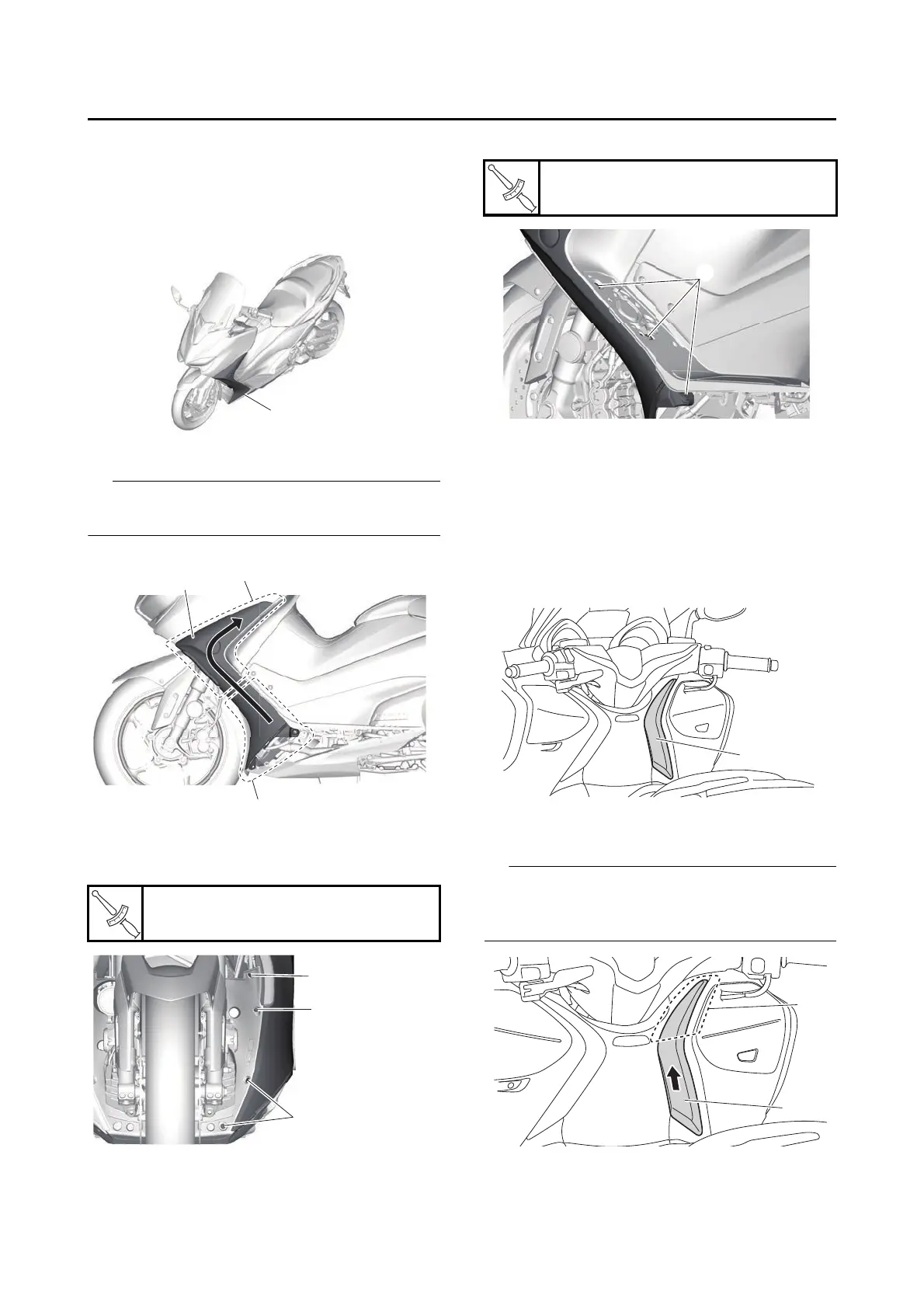

INSTALLING THE SIDE PANEL
The following procedure applies to both of the
side panels.
1. Install:
Side panel “1”
a. Install the side panel “1”.
TIP
Install the side panel by installing the lower part
“a” and upper part “b”.
b. Install the side panel bolt “2” and the quick
fasteners “3”.
c. Install the side panel screws “4”.
2. Install:
Bottom side cowling
EAS30819
REMOVING THE INNER PANEL
The following procedure applies to both of the in-
ner panels.
1. Remove:
Inner panel “1”
a. Remove the part “a” of the inner panel and
slide the inner panel “1” to the upper side.
TIP
When removing the part “a”of the inner panel,
use a commercially available cover removal tool
“b”.
Side panel bolt
1.5 N·m (0.15 kgf·m, 1.1 lb·ft)
1
a
b
1
T
R
.
.
3
3
2
Side panel screw
1.5 N·m (0.15 kgf·m, 1.1 lb·ft)
T
R
.
.
4
1
1
a
