4-25
FRONT WHEEL
4. Check:
• Wheel bearing
Front wheel turns roughly or is loose
Replace the wheel bearings.
• Oil seal
Damage/wear Replace.
EAS30151
ASSEMBLING THE FRONT WHEEL
ECA21340
• Do not drop the wheel sensor rotor or sub-
ject it to shocks.
• If any solvent gets on the wheel sensor ro-
tor, wipe it off immediately.
1. Install:
• Wheel bearing
• Oil seal

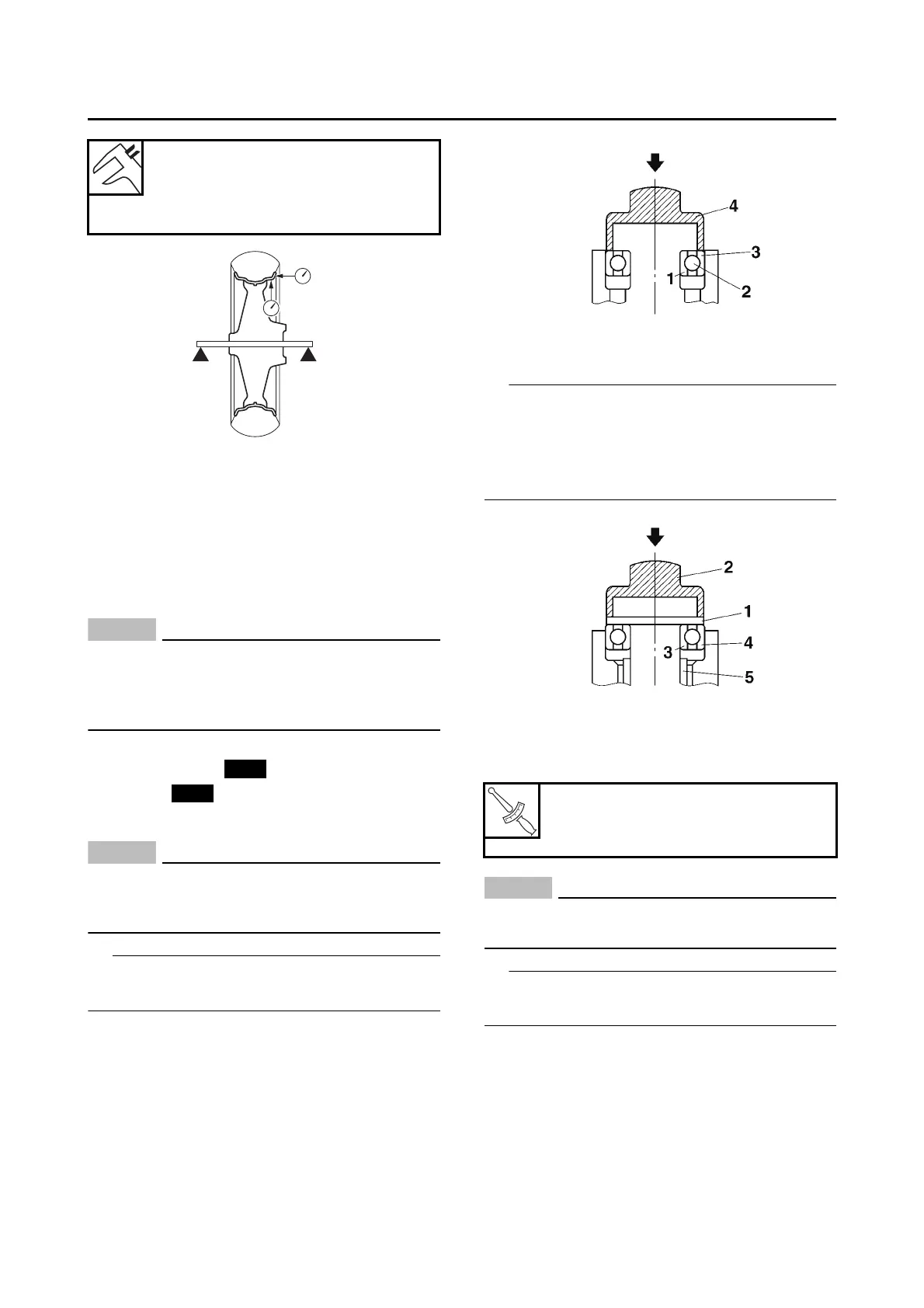

a. Install the new wheel bearing (right side).
ECA18110
Do not contact the wheel bearing inner race
“1” or balls “2”. Contact should be made
only with the outer race “3”.
Use a socket “4” that matches the diameter of
the wheel bearing outer race.
b. Install the spacer.
c. Install the new wheel bearing (left side).
Place a suitable washer “1” between the socket
“2” and the bearing so that both the inner race
“3” and outer race “4” are pressed at the same
time, and then press the bearing until the inner
race makes contact with the spacer “5”.
d. Install the new oil seals.
2. Install:
• Front wheel sensor rotor
NOTICE
ECA17200
Replace the wheel sensor rotor bolts with
new ones.
Install the wheel sensor rotor with the stamped
mark “1” facing outward.
Radial wheel runout limit
1.0 mm (0.04 in)
Lateral wheel runout limit
0.5 mm (0.02 in)
Wheel sensor rotor bolt
8 N·m (0.8 kgf·m, 5.9 lb·ft)
LOCTITE®
