3-32
PERIODIC MAINTENANCE
Handling notes for coolant
Coolant is potentially harmful and should be
handled with special care.
EWA13040
• If coolant splashes in your eyes, thorough-
ly wash them with water and consult a doc-
tor.
• If coolant splashes on your clothes, quickly
wash it away with water and then with soap
and water.
• If coolant is swallowed, induce vomiting
and get immediate medical attention.
ECA13481
• Adding water instead of coolant lowers the
antifreeze content of the coolant. If water is
used instead of coolant, check, and if nec-
essary, correct the antifreeze concentra-
tion of the coolant.
• Use only distilled water. However, if dis-
tilled water is not available, soft water may
be used.
• If coolant comes into contact with painted
surfaces, immediately wash them with wa-
ter.
• Do not mix different types of antifreeze.
10.Install:
• Radiator cap

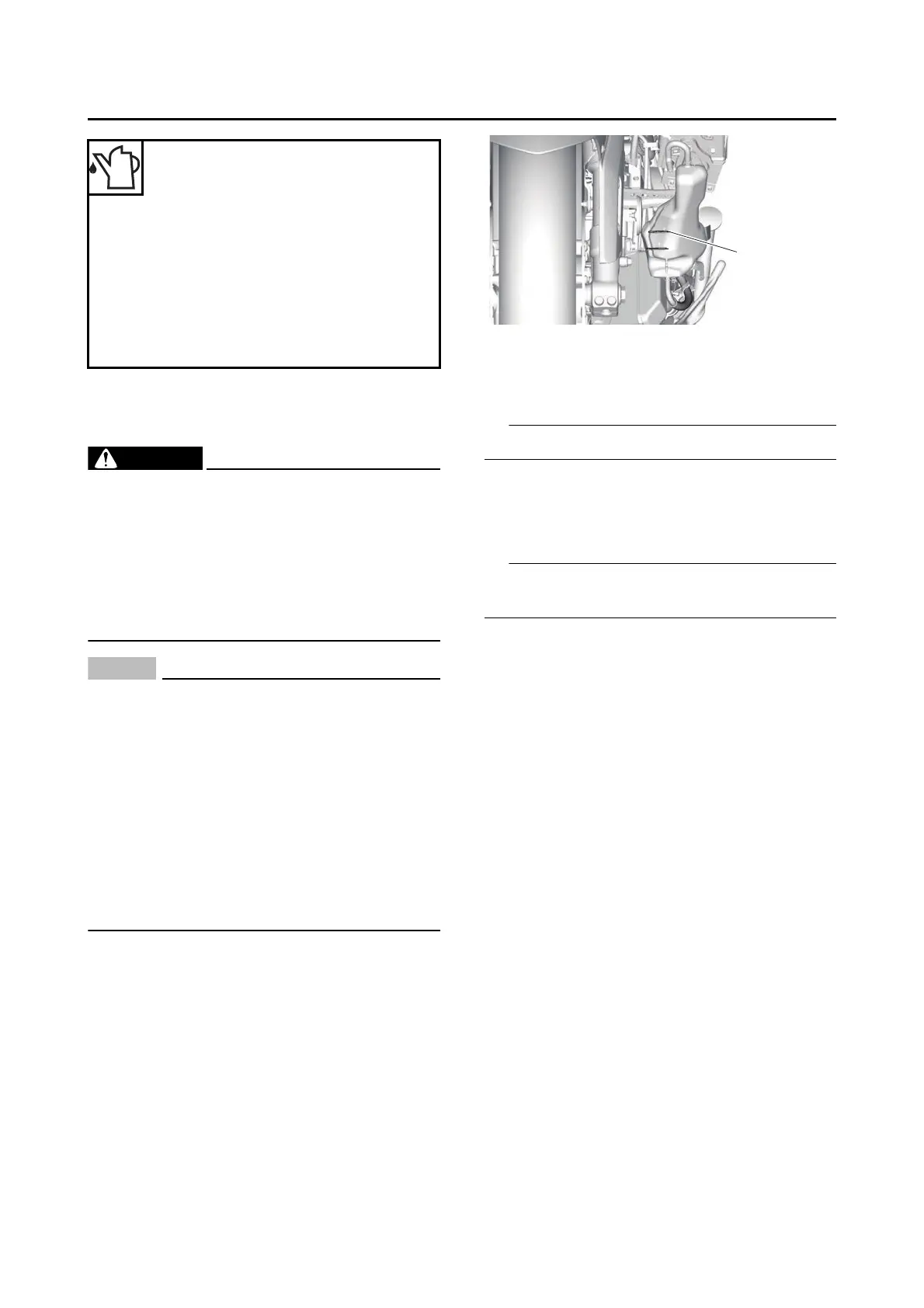

11.Fill:
• Coolant reservoir
(with the recommended coolant to the maxi-
mum level mark “a”)
12.Install:
• Coolant reservoir cap
13.Start the engine, warm it up for one minute,
and then stop it.
Place the vehicle on the centerstand.
14.Check:
• Coolant level
Refer to “CHECKING THE COOLANT LEV-
EL” on page 3-29.
Before checking the coolant level, wait a few
minutes until the coolant has settled.
15.Install:
• Footboard
• Rear side cowling assembly
• Side cover
• Fuel tank cover assembly
• Center cover
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
• Bottom center cowling
• Side panel
• Bottom side cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
EAS31188
REPLACING THE V-BELT
1. Remove:
• Bottom side cowling
• Side panel
• Bottom center cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
• Center cover
• Fuel tank cover assembly
• Side cover (right)
• Rear side cowling assembly (right)
• Footboard (right)
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Recommended antifreeze
High-quality ethylene glycol anti-
freeze containing corrosion inhibi-
tors for aluminum engines
Mixing ratio
1:1 (antifreeze : water)
Radiator (including all routes)
1.54 L (1.63 US qt)
Coolant reservoir (up to the
maximum level mark)
0.25 L (0.26 US qt)
To Next Page
