3-4
PERIODIC MAINTENANCE
EAS32024
CHECKING THE VEHICLE USING THE
YAMAHA DIAGNOSTIC TOOL
Use the YDT and check the vehicle according to
the following procedure.
1. Remove:
Battery cover
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
2. Remove the protective cap, and then connect
the YDT to the coupler.
Refer to “YDT” on page 9-3.
TIP
Yamaha diagnostic tool (A/I) (90890-03264) in-
cludes YDT sub harness (6P) (90890-03266).
If you already have Yamaha diagnostic tool (A/
I) (90890-03262), YDT sub harness (6P)
(90890-03266) is separately required.
3. Check:
•DTC
TIP
Use the “Diagnosis of malfunction” function of
the YDT to check the DTC. For information
about using the YDT, refer to the operation man-
ual that is included with the tool.
DTC No. is displayed Check and repair the
probable cause of the malfunction.
Refer to “SELF-DIAGNOSTIC FUNCTION
AND DIAGNOSTIC CODE TABLE” on
page 9-38.
4. Perform:
Dynamic inspection
TIP
Use the “Dynamic inspection” function of the
YDT version 3.0 and after to perform the dynam-
ic inspection. For information about using the
YDT, refer to the operation manual that is includ-
ed with the tool.
5. Install:
Battery cover
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
EAS30619
CHECKING THE FUEL LINE
The following procedure applies to all of the fuel,
breather and overflow hoses.
1. Remove:
Bottom side cowling
Side panel
Bottom center cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover
Fuel tank cover assembly
Side cover
Rear side cowling assembly
Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Fuel tank
Refer to “FUEL TANK” on page 7-1.

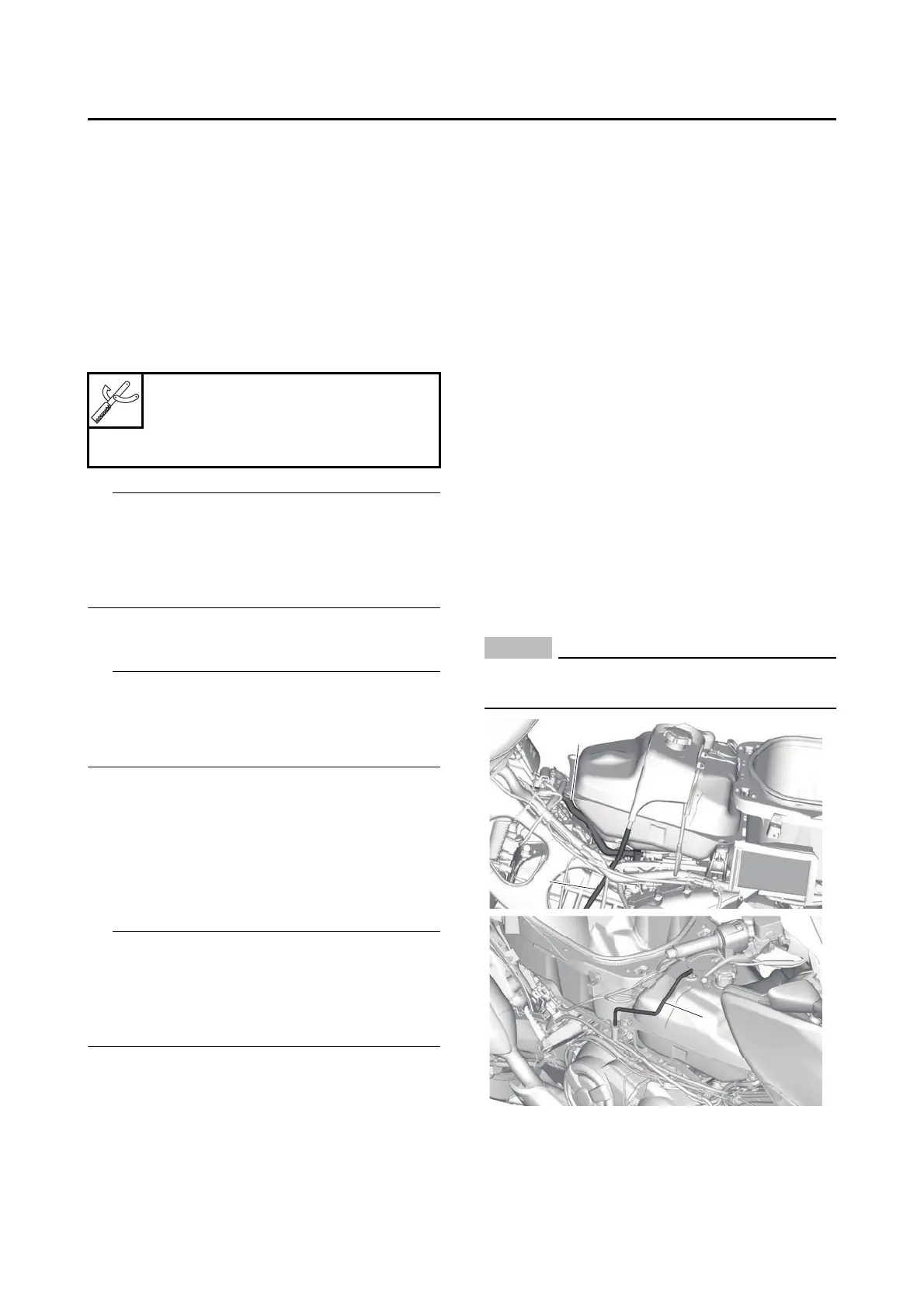

2. Check:
Fuel hose “1”
Fuel tank overflow hose “2”
Fuel tank breather hose “3”
Cracks/damage Replace.
Loose connection Connect properly.
NOTICE
ECA14940
Make sure the fuel tank breather hose is rout-
ed correctly.
Yamaha diagnostic tool USB
90890-03267
Yamaha diagnostic tool (A/I)
90890-03264
1
2
3
