7-1
FUEL TANK
EAS20067
FUEL TANK

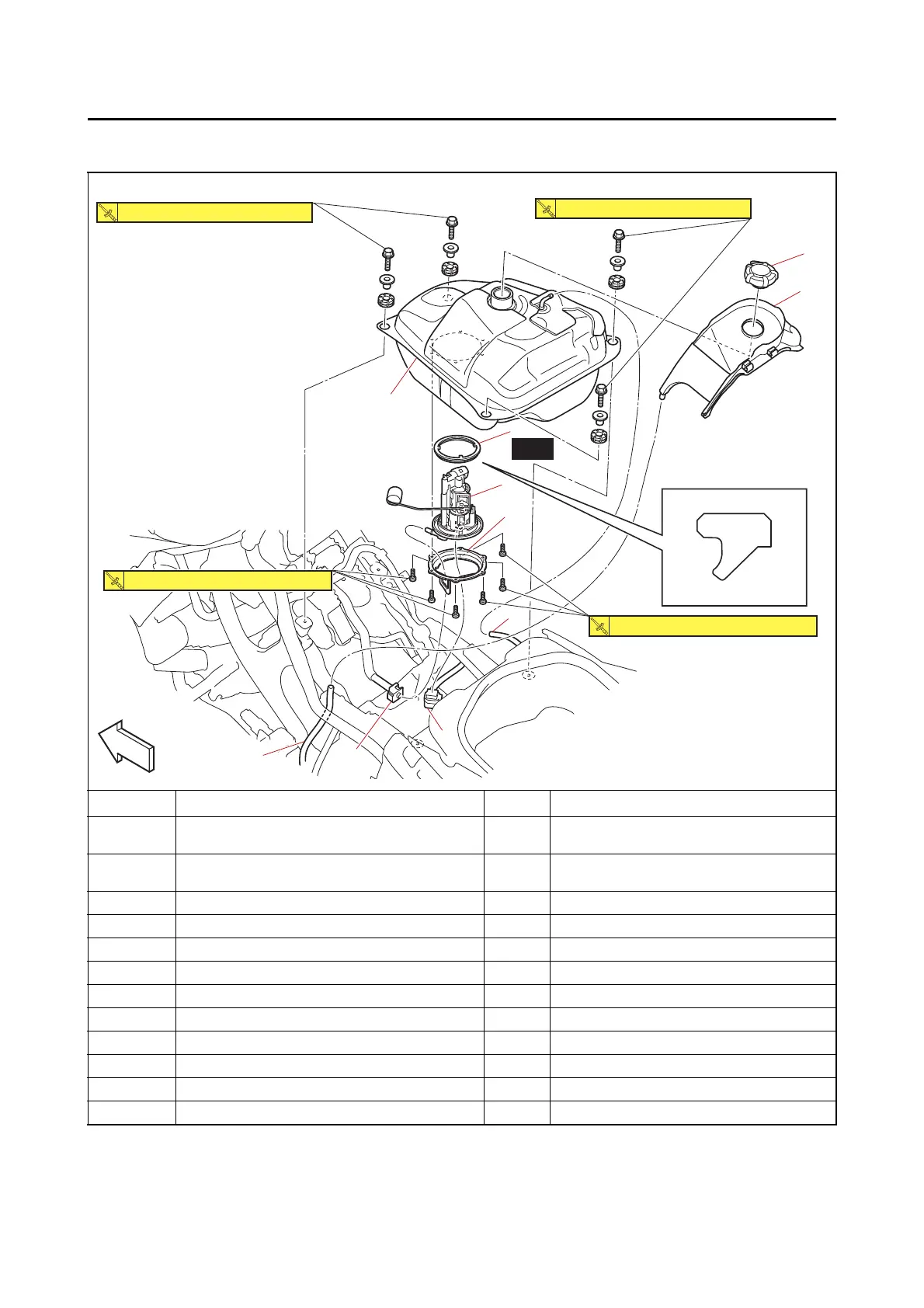

Removing the fuel tank
Order Job/Parts to remove Q’ty Remarks
Bottom side cowling/Side panel/Bottom center
cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
1 Fuel tank overflow hose 1
2 Fuel tank breather hose 1 Disconnect.
3 Fuel pump coupler 1 Disconnect.
4 Fuel hose connector 1 Disconnect.
5Fuel tank 1
6 Fuel pump bracket 1
7 Fuel pump 1
8 Fuel pump gasket 1
9Fuel tank cap 1
10 Filler cover 1
FWDFWD
1
2
3
4
5
6
7
8
9
10
New
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
