Yamaha TMAX TECH MAX 2020 User Manual

6-5

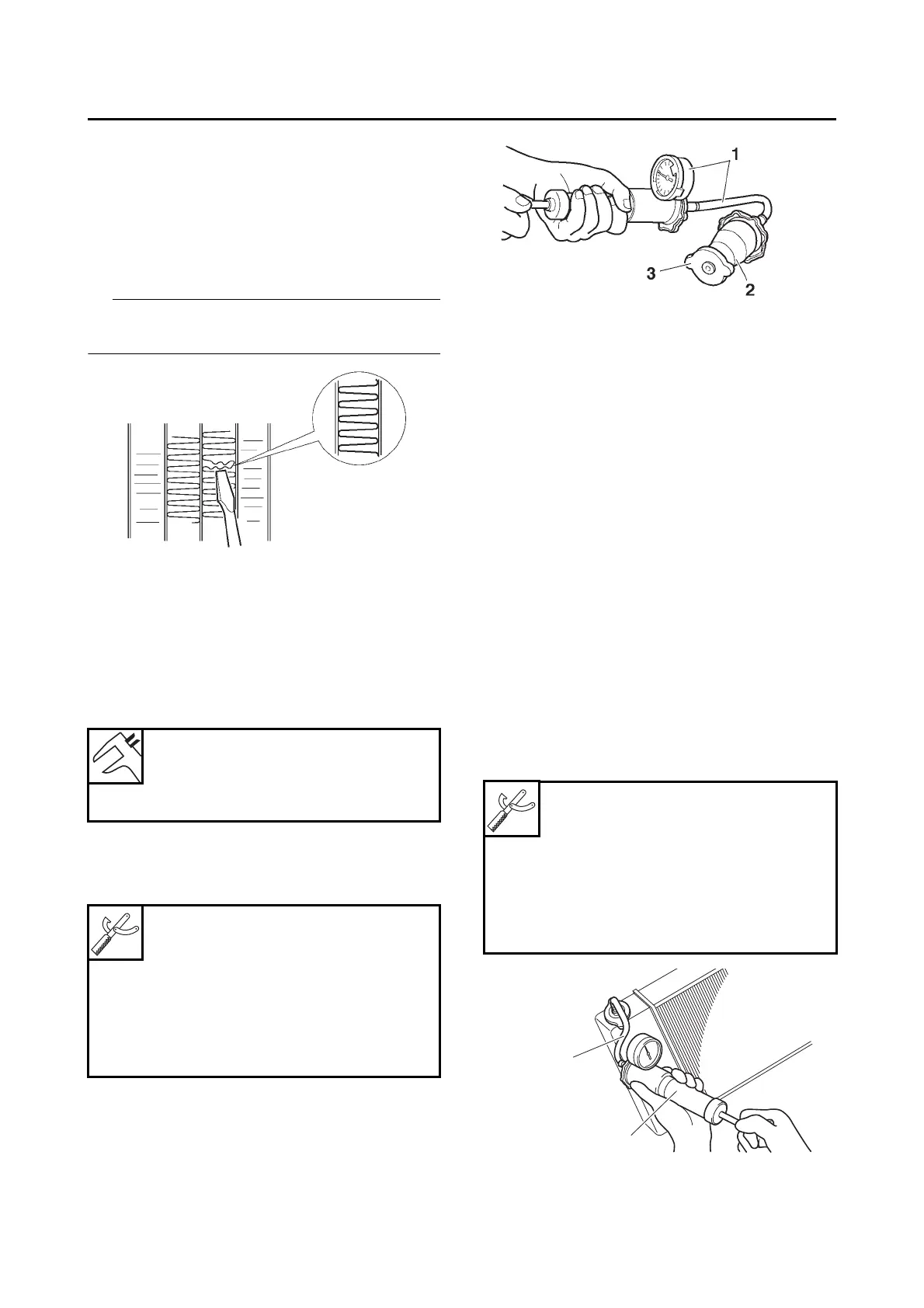

RADIATOR
EAS30439
CHECKING THE RADIATOR
1. Check:
• Radiator fin
Obstruction  Clean.
Apply compressed air to the rear of the radia-
tor.
Damage  Repair or replace.
TIP
Straighten any flattened fins with a thin, flathead
screwdriver.
2. Check:
• Radiator hose
• Radiator pipe
Cracks/damage  Replace.
3. Measure:
• Radiator cap valve opening pressure
Below the specified pressure  Replace the
radiator cap.
a. Install the radiator cap tester “1” and radia-
tor cap tester adapter “2” to the radiator cap
“3”.
b. Apply the specified pressure for ten sec-
onds and make sure there is no drop in
pressure.
4. Check:
• Radiator fan
Damage  Replace.
Malfunction  Check and repair.
Refer to “COOLING SYSTEM” on page 8-39.
EAS30440
INSTALLING THE RADIATOR
1. Fill:
• Cooling system
(with the specified amount of the recom-
mended coolant)
Refer to “CHANGING THE COOLANT” on
page 3-31.
2. Check:
• Cooling system
Leaks  Repair or replace any faulty part.
a. Attach the radiator cap tester “1” and radia-
tor cap tester adapter “2” to the radiator.
Radiator cap valve opening pres-
sure
107.9–137.3 kPa
(1.08–1.37 kgf/cm², 15.6–19.9 psi)
Radiator cap tester
90890-01325
Mityvac cooling system tester kit
YU-24460-A
Radiator cap tester adapter
90890-01352
Pressure tester adapter
YU-33984
G089028
Radiator cap tester
90890-01325
Mityvac cooling system tester kit
YU-24460-A
Radiator cap tester adapter
90890-01352
Pressure tester adapter
YU-33984
G089029
1
2
G089031

Yamaha TMAX TECH MAX 2020 Specifications

General

Displacement	562 cc
Compression Ratio	10.9:1
Lubrication System	Wet sump
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Transmission System	V-Belt Automatic
Final Drive	Belt
Front Suspension System	Telescopic fork
Front Travel	120 mm
Rear Suspension System	Swingarm
Rear Travel	117 mm
Front Tyre	120/70-15
Seat Height	800 mm
Wheel Base	1, 575 mm
Minimum Ground Clearance	135 mm
Wet Weight	220 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Maximum Torque	55.7 Nm (5.7 kg-m) @ 5, 250 rpm
Front Brake	Dual 267 mm discs
Rear Brake	Single hydraulic disc
Rear Tyre	160/60-15
Fuel Tank Capacity	15 litres
Features	Heated Grips, Adjustable windscreen, Traction control
