5-1
LUBRICATION SYSTEM CHART AND DIAGRAMS
EAS20298
LUBRICATION SYSTEM CHART
AND DIAGRAMS
EAS32362

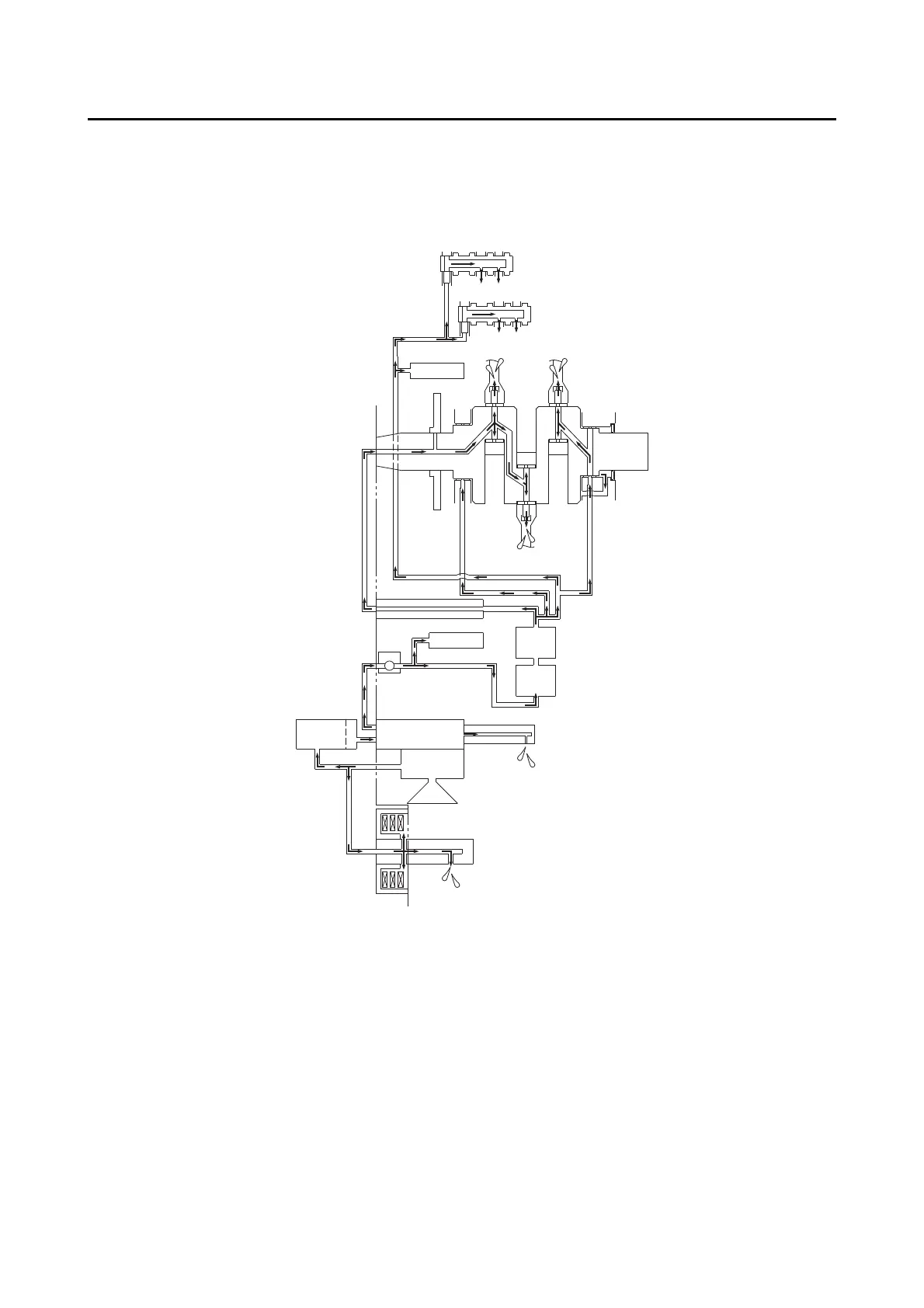

ENGINE OIL LUBRICATION CHART
1
2
3
4545
7
6
8 9
10
11
12
13
14
15 16 17
18
19
20
22 23
24
21
1. Intake camshaft
2. Exhaust camshaft
3. Timing chain tensioner
4. Connecting rod
5. To piston
6. Starter clutch gear
7. Crankshaft
8. Balancer connecting rod
9. To balancer piston
10. Oil pipe
11. Check valve
12. Relief valve
13. Oil filter
14. Oil cooler
15. Oil tank
16. Oil strainer
17. Feed pump
18. Oil delivery pipe
19. Scavenge pump
20. Oil strainer
21. To starter idle gear
22. Clutch
23. Secondary shaft
24. To transmission
