6-3
RADIATOR
EAS20063

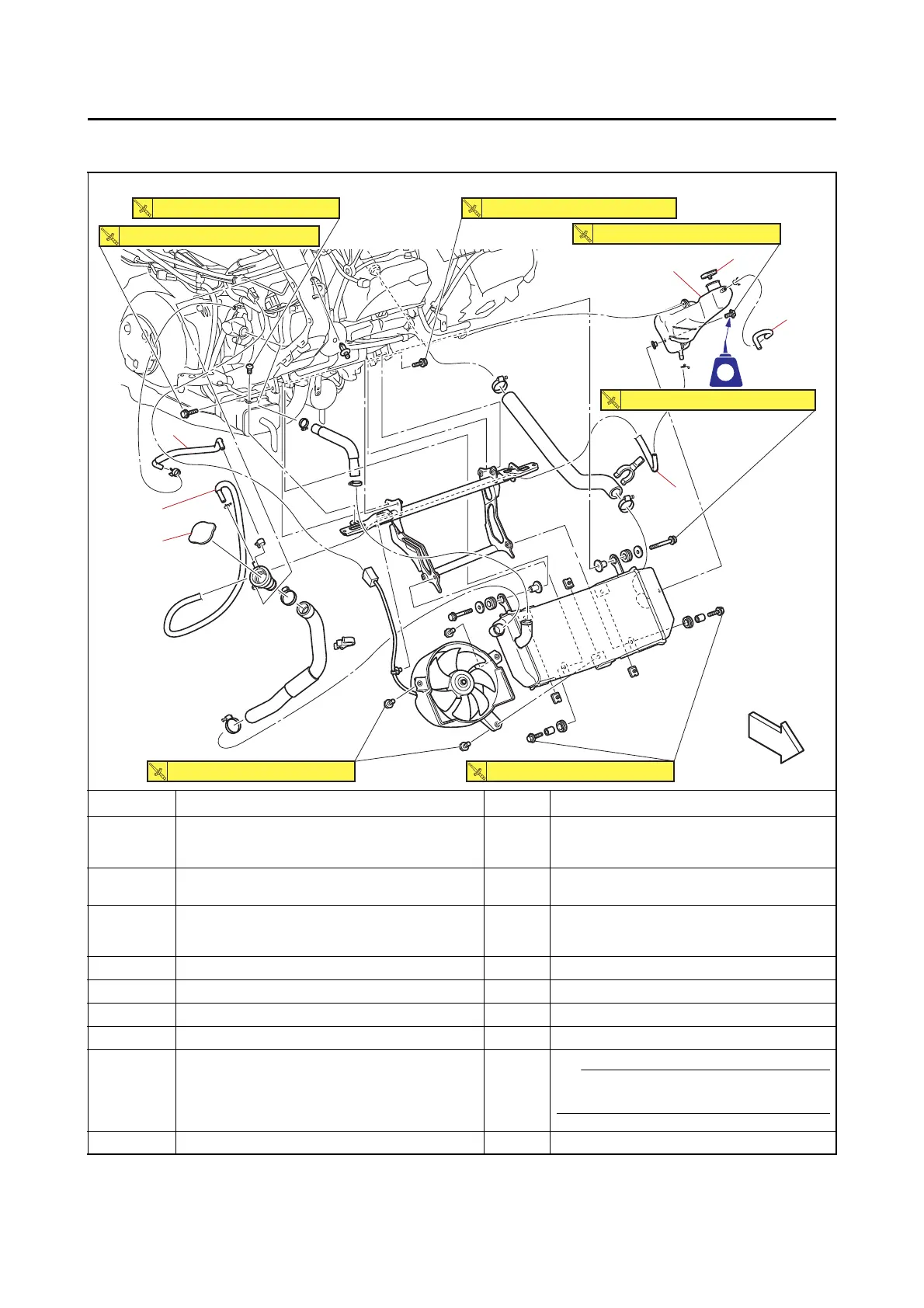

RADIATOR
Removing the radiator
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Windshield inner panel/
Rearview mirror/Bottom side cowling/Side
panel/Radiator cover/Front cowling assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-31.
1 Coolant reservoir hose 1
2 Coolant reservoir 1
3 Coolant reservoir cap 1
4 Coolant reservoir breather hose 1
5Radiator cap 1
Remove/Install it with the radiator filler pipe
held.
6 Cooling system air bleed hose 1 Disconnect.
FWD
LT
1
1
2
3
4
5
6
7 N・m (0.7 kgf・m, 5.2 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
13 N・m (1.3 kgf・m, 9.6 lb・ft)
13 N・m (1.3 kgf・m, 9.6 lb・ft)
9 N・m (0.9 kgf・m, 6.6 lb・ft) 9 N・m (0.9 kgf・m, 6.6 lb・ft)
13 N・m (1.3 kgf・m, 9.6 lb・ft)
To Next Page
