7-3
FUEL TANK
EAS30450
REMOVING THE FUEL TANK
1. Extract the fuel in the fuel tank through the
fuel tank cap with a pump.
2. Remove:
Bottom side cowling
Side panel
Bottom center cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover
Fuel tank cover assembly
Side cover
Rear side cowling assembly
Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
3. Disconnect:
Fuel tank overflow hose
Fuel tank breather hose
Fuel hose (fuel tank side)
Fuel pump coupler
WARNING
EWA17320
Cover fuel hose connections with a cloth
when disconnecting them. Residual pres-
sure in the fuel lines could cause fuel to
spurt out when removing the hose.
NOTICE
ECA17490
Be sure to disconnect the fuel hose by hand.
Do not forcefully disconnect the hose with
tools.
TIP

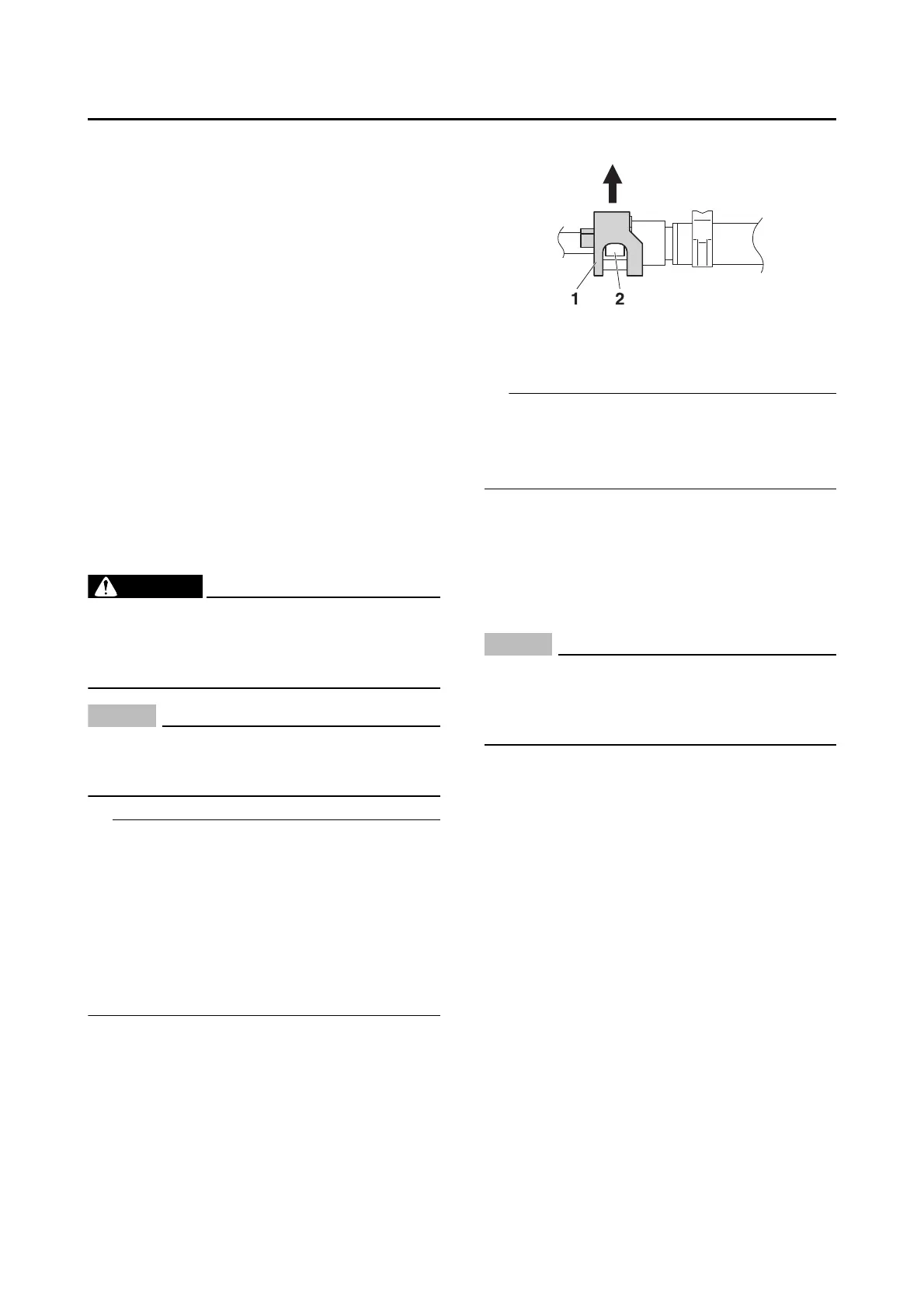

To remove the fuel hose from the fuel pump,
slide the fuel hose connector cover “1” on the
end of the hose in the direction of the arrow
shown, press the two buttons “2” on the sides
of the connector, and then remove the hose.
Before removing the hose, place a few rags in
the area under where it will be removed.
It is prohibited to wear the cotton work gloves
or equivalent coverings.
4. Remove:
Fuel tank
TIP
Do not set the fuel tank down so that the instal-
lation surface of the fuel pump is directly under
the tank. Be sure to lean the fuel tank in an up-
right position.
EAS30451
REMOVING THE FUEL PUMP
1. Remove:
Fuel pump bracket
Fuel pump
Fuel pump gasket
NOTICE
ECA14721
Do not drop the fuel pump or give it a
strong shock.
Do not touch the base section of the fuel
sender.
EAS30454
CHECKING THE FUEL PUMP BODY
1. Check:
Fuel pump body
Obstruction Clean.
Cracks/damage Replace the fuel pump
assembly.
EAS30455
CHECKING THE FUEL PUMP OPERATION
1. Check:
Fuel pump operation
Refer to “CHECKING THE FUEL PRES-
SURE” on page 7-12.
