4-22
FRONT WHEEL
EAS20028
FRONT WHEEL

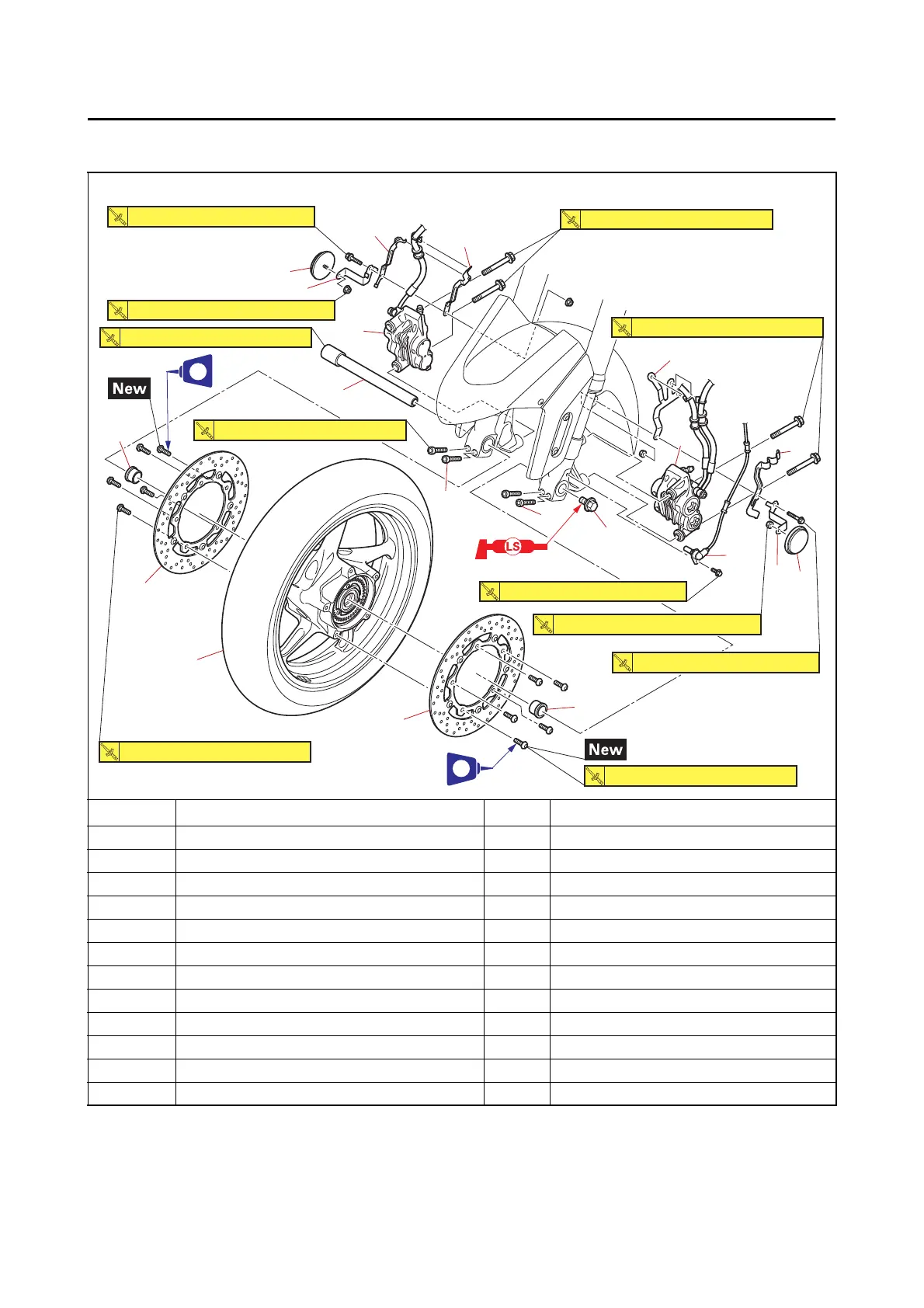

Removing the front wheel and brake discs
Order Job/Parts to remove Q’ty Remarks
1 Reflector bracket 2
2 Front reflector 2
3 Front brake hose holder 4
4 Front wheel sensor 1
5 Front brake caliper 2
6 Front wheel axle pinch bolt 4 Loosen.
7 Front wheel axle bolt 1
8 Front wheel axle 1
9 Front wheel 1
10 Collar 1 Length: 22 mm (0.87 in)
11 Collar 1 Length: 18 mm (0.71 in)
12 Front brake disc 2
LT
LT
1
2
3
3
3
3
4
5
5
6
6
7
8
9
10
11
12
12
1
2
2.5 N・m (0.25 kgf・m, 1.8 lb・ft)
9 N・m (0.9 kgf・m, 6.6 lb・ft)
21 N・m (2.1 kgf・m, 15 lb・ft)
35 N・m (3.5 kgf・m, 26 lb・ft)
35 N・m (3.5 kgf・m, 26 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
23 N・m (2.3 kgf・m, 17 lb・ft)
91 N・m (9.1 kgf・m, 67 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
2.5 N・m (0.25 kgf・m, 1.8 lb・ft)
