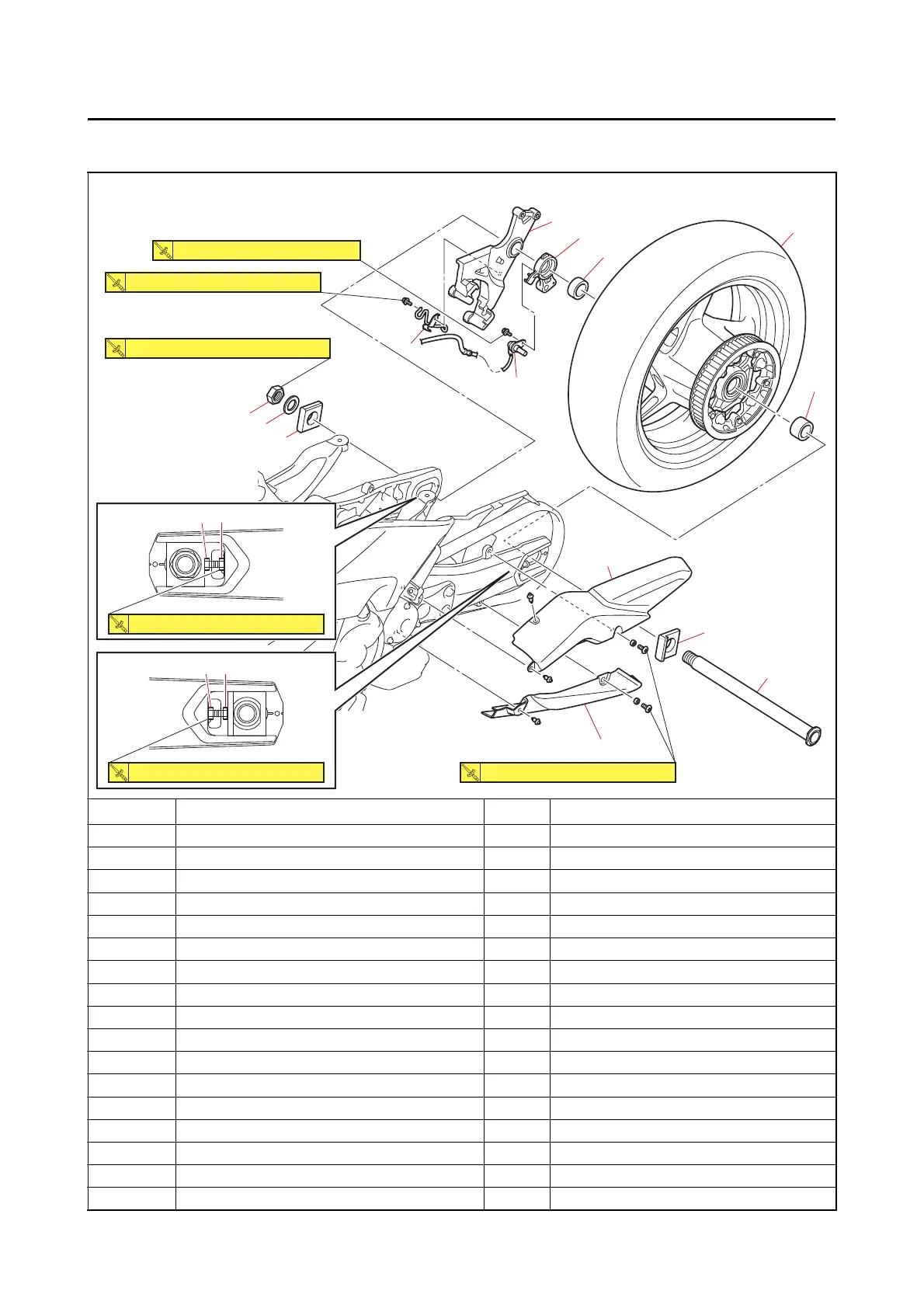

REAR WHEEL
EAS20029
REAR WHEEL
Removing the rear wheel
Order Job/Parts to remove Q’ty Remarks
Rear brake caliper/Rear brake lock caliper Refer to “REAR BRAKE” on page 4-50.
1 Rear wheel sensor lead holder 1
2 Rear wheel sensor 1
3 Drive belt upper guard 1
4 Drive belt lower guard 1
5 Locknut 2 Loosen.
6 Adjusting bolt 2 Loosen.
7 Rear wheel axle nut 1
8Washer 1
9 Rear wheel axle 1
10 Adjusting block (left) 1
11 Adjusting block (right) 1
12 Rear wheel 1
13 Rear wheel sensor housing 1
14 Brake caliper bracket 1
15 Collar (right) 1 Length: 18 mm (0.71 in)
16 Collar (left) 1 Length: 23.9 mm (0.94 in)
1
2
3
4
7
8
56
9
10
11
12
13
14
15
16
65
7 N・m (0.7 kgf・m, 5.2 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
16 N・m (1.6 kgf・m, 12 lb・ft)
16 N・m (1.6 kgf・m, 12 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
160 N・m (16 kgf・m, 118 lb・ft)
