5-11
ENGINE REMOVAL
EAS30251

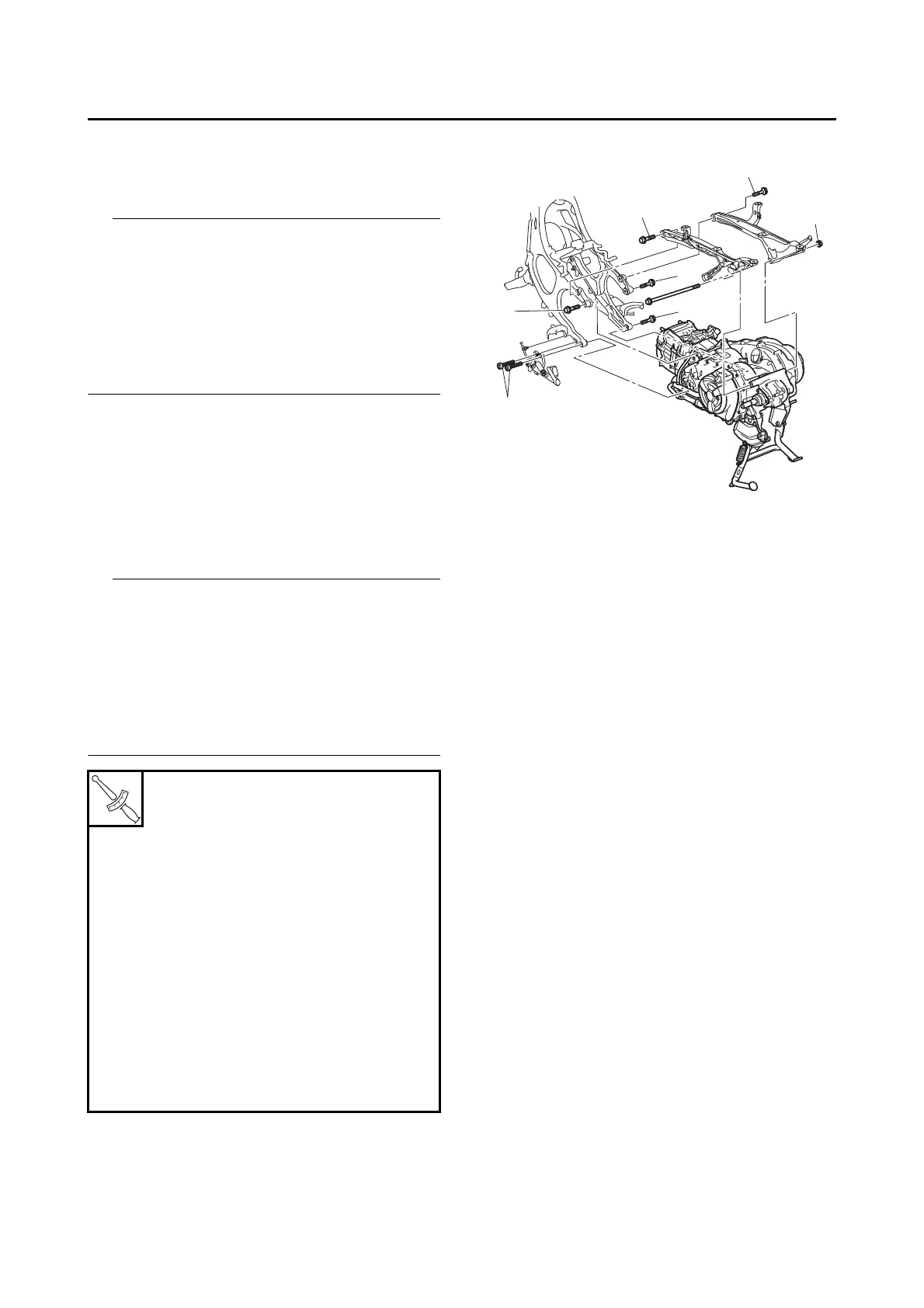

INSTALLING THE ENGINE
1. Install:
• All removed parts
• Apply locking agent (LOCTITE®) to engine
mounting bolt (front upper side) “1”, engine
mounting bolt (front right lower side) “2”, en-
gine mounting bolts (front left lower side) “3”,
and rear frame bolts “5”.
• For installation, reverse the removal proce-
dure.
• Do not fully tighten the bolts and nuts.
2. Tighten:
• Engine mounting bolts (front upper side) “1”
• Engine mounting bolt (front right lower side)
“2”
• Engine mounting bolts (front left lower side)
“3”
• Engine mounting nut (rear side) “4”
• Rear frame bolts “5”
When tightening the engine mounting nuts and
engine mounting bolts, do not apply an upward
load to the frame, such as supporting the area
around steering head of the frame upwards. Al-
so, do not apply an upward or downward load on
the rear frame, such as supporting the rear end
of the rear frame upwards or pushing it down-
wards.
Engine mounting bolt
(front upper side)
77 N·m (7.7 kgf·m, 57 lb·ft)
LOCTITE®
Engine mounting bolt (front right
lower side)
70 N·m (7.0 kgf·m, 52 lb·ft)
LOCTITE®
Engine mounting bolt (front left
lower side)
78 N·m (7.8 kgf·m, 58 lb·ft)
LOCTITE®
Engine mounting nut (rear side)
105 N·m (10.5 kgf·m, 77 lb·ft)
Rear frame bolt
83 N·m (8.3 kgf·m, 61 lb·ft)
LOCTITE®
To Next Page
