6-8
OIL COOLER
EAS30441
CHECKING THE OIL COOLER
1. Check:
Oil cooler
Cracks/damage Replace.
2. Check:
Oil cooler inlet hose
Oil cooler outlet hose
Cracks/damage/wear Replace.
EAS30442

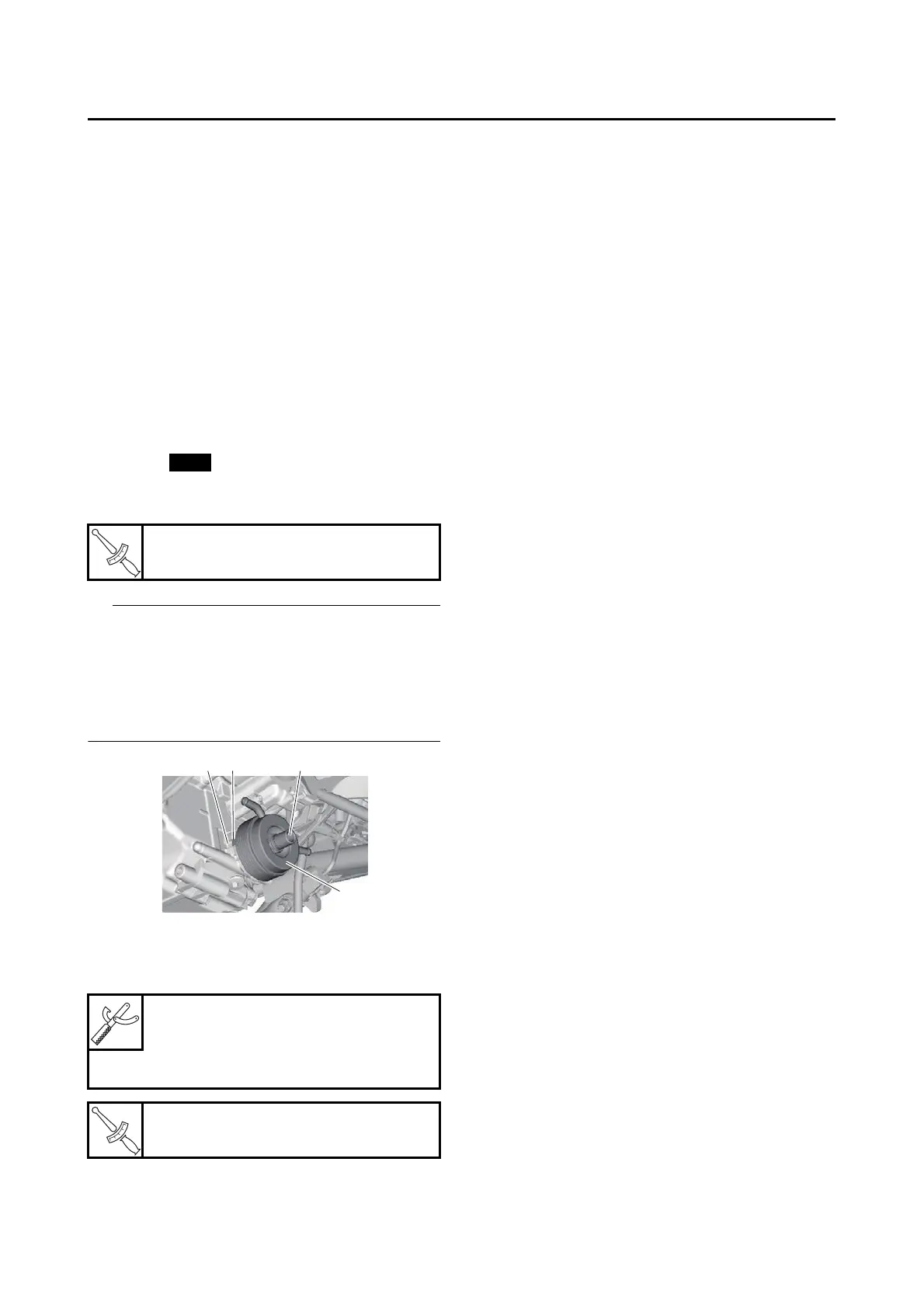

INSTALLING THE OIL COOLER
1. Clean:
Mating surfaces of the oil cooler and the
crankcase
(with a cloth dampened with lacquer thinner)
2. Install:
•Gasket
Oil cooler “1”
Oil filter cartridge union bolt “2”
TIP
Make sure that the gasket is positioned proper-
ly.
Apply engine oil to the oil filter cartridge union
bolt thread and its seat of the oil cooler side.
Align the projection “a” on the oil cooler with the
slot “b” in the crankcase.
3. Install:
Oil filter cartridge
Refer to “CHANGING THE ENGINE OIL” on
page 3-27.
4. Fill:
Cooling system
(with the specified amount of the recom-
mended coolant)
Refer to “CHANGING THE COOLANT” on
page 3-31.
Crankcase
(with the specified amount of the recom-
mended engine oil)
Refer to “CHANGING THE ENGINE OIL” on
page 3-27.
5. Check:
Cooling system
Leaks Repair or replace any faulty part.
Refer to “INSTALLING THE RADIATOR” on
page 6-5.
6. Measure:
Radiator cap valve opening pressure
Below the specified pressure Replace the
radiator cap.
Refer to “CHECKING THE RADIATOR” on
page 6-5.
Oil filter cartridge union bolt
40 N·m (4.0 kgf·m, 30 lb·ft)
Oil filter wrench
90890-01426
Oil filter wrench
YU-38411
Oil filter cartridge
17 N·m (1.7 kgf·m, 13 lb·ft)
New
T
R
.
.
1
2ab
T
R
.
.
