4-65
REAR BRAKE
EAS31421

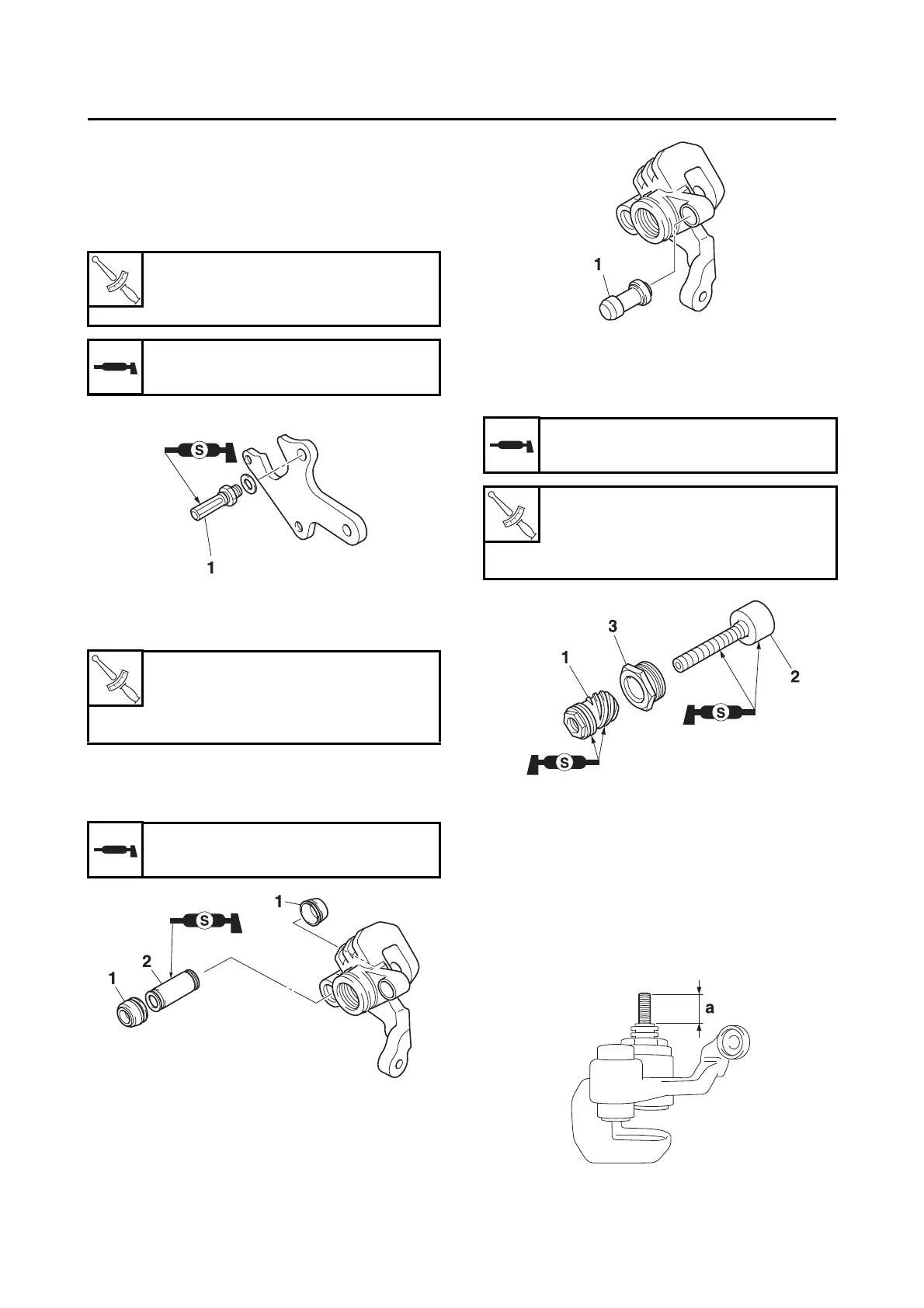

ASSEMBLING THE REAR BRAKE LOCK
CALIPER
1. Install:
Slide pin bolt “1”
(to the rear brake lock caliper bracket)
2. Install:
Rear brake lock caliper bracket
3. Install:
Boot “1”
Sleeve “2”
4. Install:
Boot “1”
5. Install:
Shaft L “1”
Piston adjusting bolt “2”
Locknut “3”
6. Adjust:
Piston adjusting bolt
a. Tighten shaft L manually until it touches the
locknut.
b. With shaft L fastened, turn and adjust the
piston adjusting bolt so that the length “a”
between the end of shaft L and the end of
the piston adjusting bolt is changed to 19
mm (0.75 in).
Rear brake lock caliper slide pin
bolt
17 N·m (1.7 kgf·m, 13 lb·ft)
Recommended lubricant
Silicone grease
Rear brake lock caliper bracket
bolt
22 N·m (2.2 kgf·m, 16 lb·ft)
LOCTITE®
Recommended lubricant
Silicone grease
T
R
.
.
T
R
.
.
Recommended lubricant
Silicone grease
Rear brake lock caliper piston
locknut
22 N·m (2.2 kgf·m, 16 lb·ft)
Left-hand thread
T
R
.
.
