Yamaha TMAX TECH MAX 2020 - Checking the Switches

8-91
ELECTRICAL COMPONENTS
EAS30549

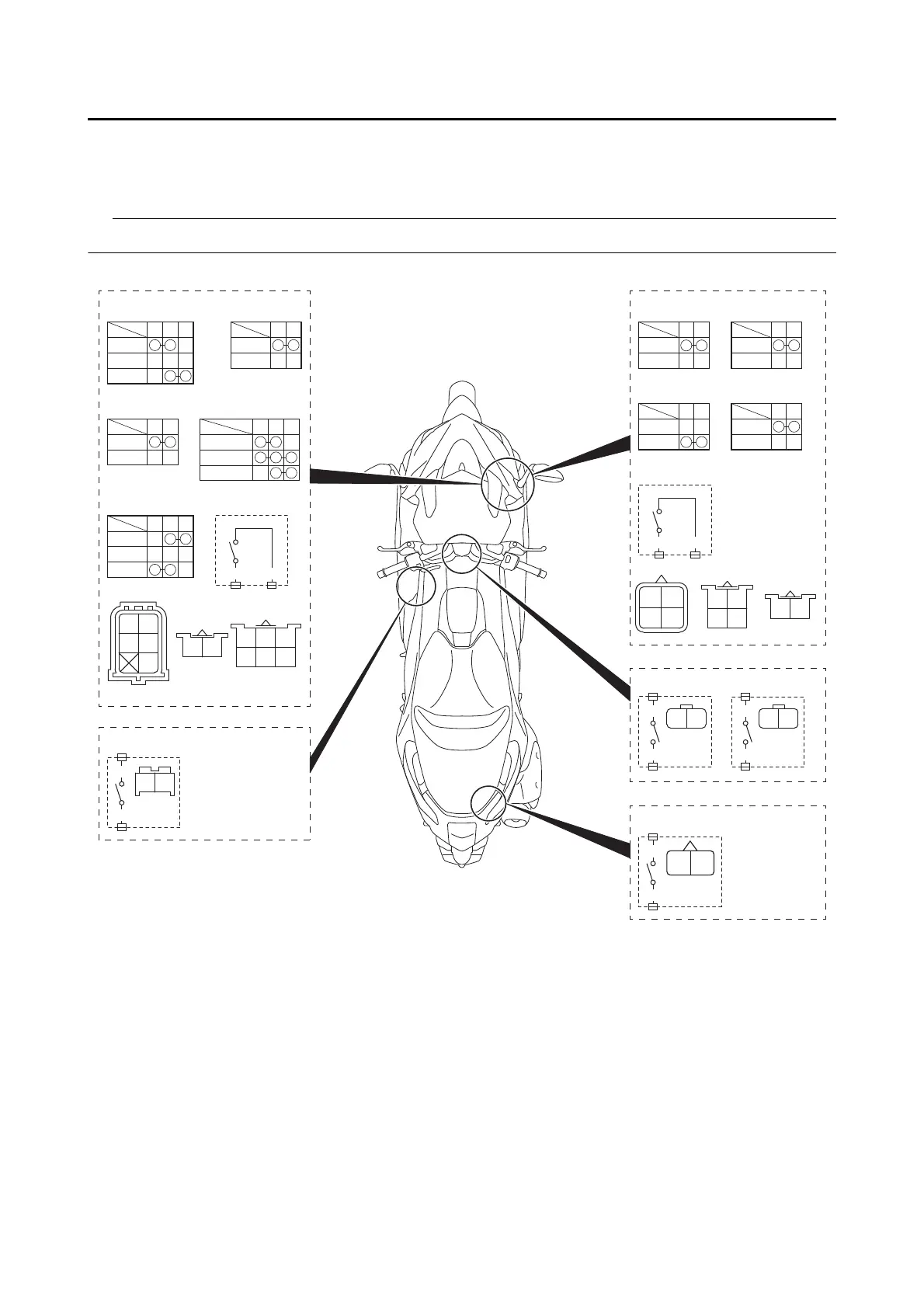

CHECKING THE SWITCHES
Check each switch for continuity with the digital circuit tester. If the continuity reading is incorrect, check
the wiring connections and if necessary, replace the switch.
TIP
Refer to “CHECKING THE SWITCHES” in “BASIC INFORMATION” (separate volume).
XP560E
G/Y Br
G/Y Br
Ch
N
R
L
Br/W Dg
W/L B/W
FREE
PUSH
W/RB/WW/G
UP
N
DOWN
B L/B B
PASS
HI
LO
Br
W/RW/G
L/B
BP
Br
G/Y
Dg
Ch
Br/W W/L
B/W
L
B
LB LB
L
B
Br/YR/W
Br/W R/B
Br
G/Y
L/G R
R
L/G
L/W
W/G B/W
B
Br P
PUSH
FREE
(B)
R/BR/W
RUN
OFF
L/W B
OFF
ON
Br/W Br/Y
OFF
ON
(B)
B/W W /G
FREE
PUSH
12
3
4
5
6
12
B
B
BB
7
13 14
89
10 11
15
1. Dimmer/pass switch
2. Horn switch
3. Menu switch
4. Select switch
5. Turn signal switch
6. Rear brake light switch
7. Sidestand switch
8. Engine stop switch
9. ON/start switch
10. Hazard switch
11. Mode switch
12. Front brake light switch
13. OFF/LOCK switch
14. Parking/Unlock switch
15. Storage box light switch
